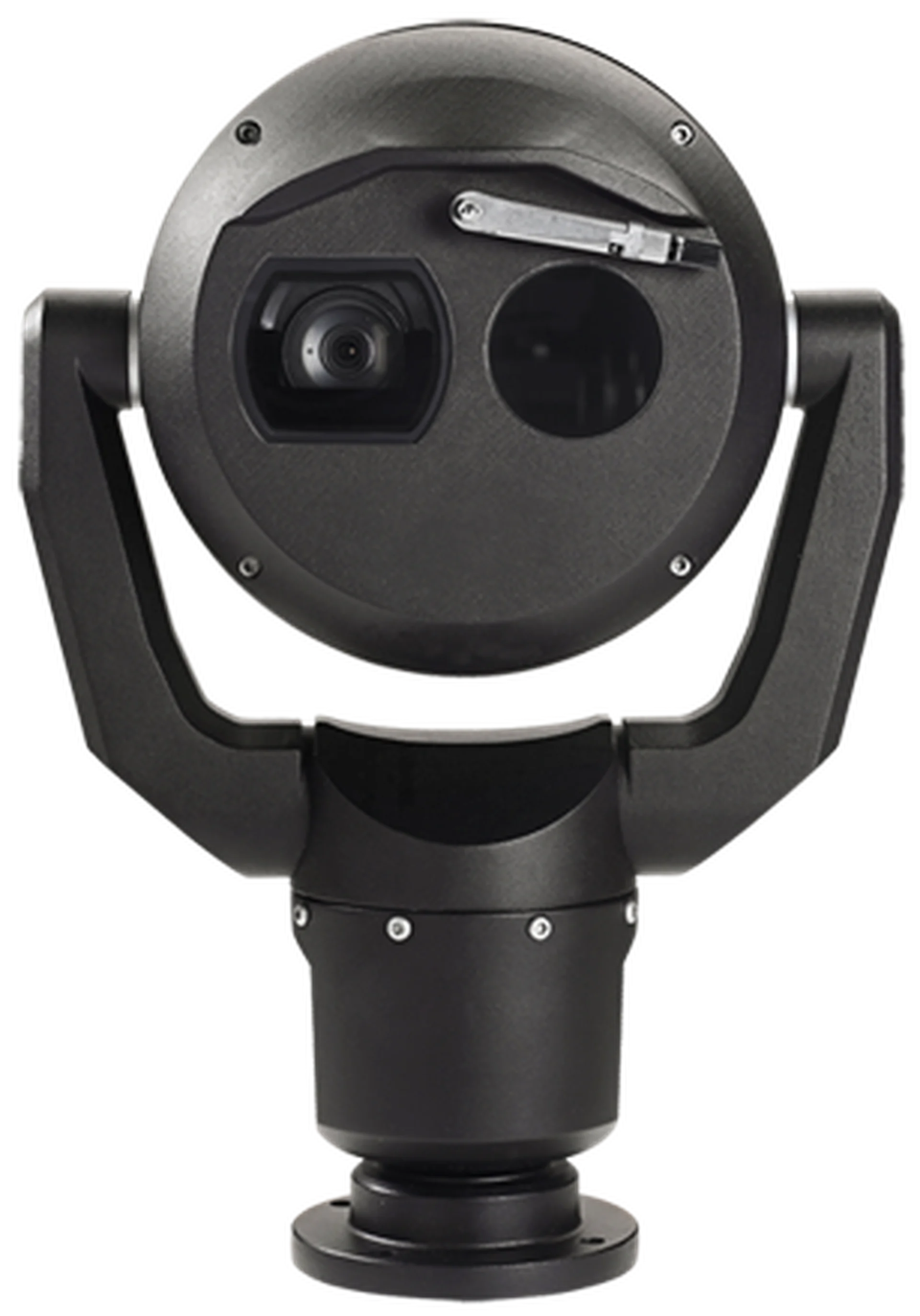

MIC IP fusion 9000i
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection of up to 4517 m (14,820 ft) using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal (QVGA or VGA) |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; up to 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm (visible) ; 9, 19 or 50 mm (thermal) |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 70°, 16° or 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F – 149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the MIC IP fusion 9000i
Metadata fusion enables operators to receive notifications of detected events from both thermal and visible image streams, regardless of which stream they are viewing. This eliminates the need to monitor both feeds constantly and ensures critical events are never missed, even when visibility is limited by smoke, dust, or weather.
The camera provides exceptional early detection capabilities, allowing operators to detect objects up to 4517 m (14,820 ft) away based on standard DRI criteria. This long-range awareness is vital for perimeter security and critical infrastructure monitoring.
Yes. The all-metal body is engineered to withstand IK10-level impacts, continuous vibration, and high winds. It complies with Type 6P and IP68 standards, ensuring reliable operation from -40 degrees Celsius to +65 degrees Celsius (-40 F to +149 F) while resisting dust, water, and corrosion.
Yes. Intelligent Video Analytics can trigger an alarm when the visible imager detects objects in motion within predefined alarm fields, even while the camera is actively moving. This ensures continuous detection across monitored areas during routine pan, tilt, and zoom sweeps.
The device features an embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. Network access is secured using 802.1x authentication with EAP/TLS, and all web browser connections are protected by state-of-the-art TLS 1.2 encryption.
In this family
MIC IP fusion 9000i
:quality(75))
PTZ thermal QVGA-19mm 2MP 30x 9Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
PTZ thermal QVGA-19mm 2MP 30x 9Hz, black
PTZ thermal VGA-50mm 2MP 30x 9Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
PTZ thermal VGA-50mm 2MP 30x 9Hz, black
:quality(75))

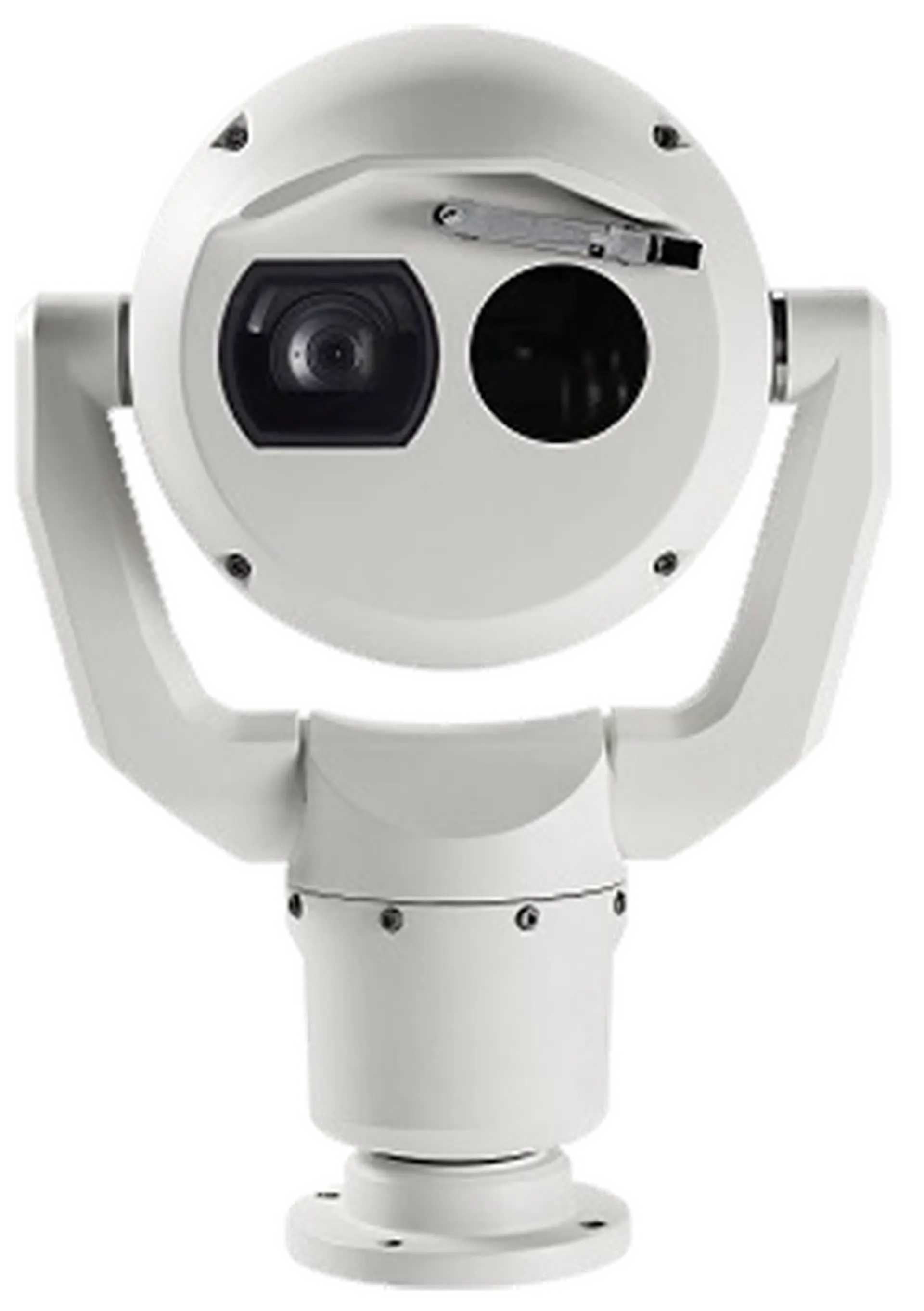

PTZ thermal VGA-50mm 2MP 30x 9Hz, white
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
PTZ thermal VGA-50mm 2MP 30x 9Hz, white
PTZ thermal VGA-50mm 2MP 30x 30Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
PTZ thermal VGA-50mm 2MP 30x 30Hz, black
PTZ thermal VGA-50mm 2MP 30x 30Hz, white
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
PTZ thermal VGA-50mm 2MP 30x 30Hz, white
:quality(75))

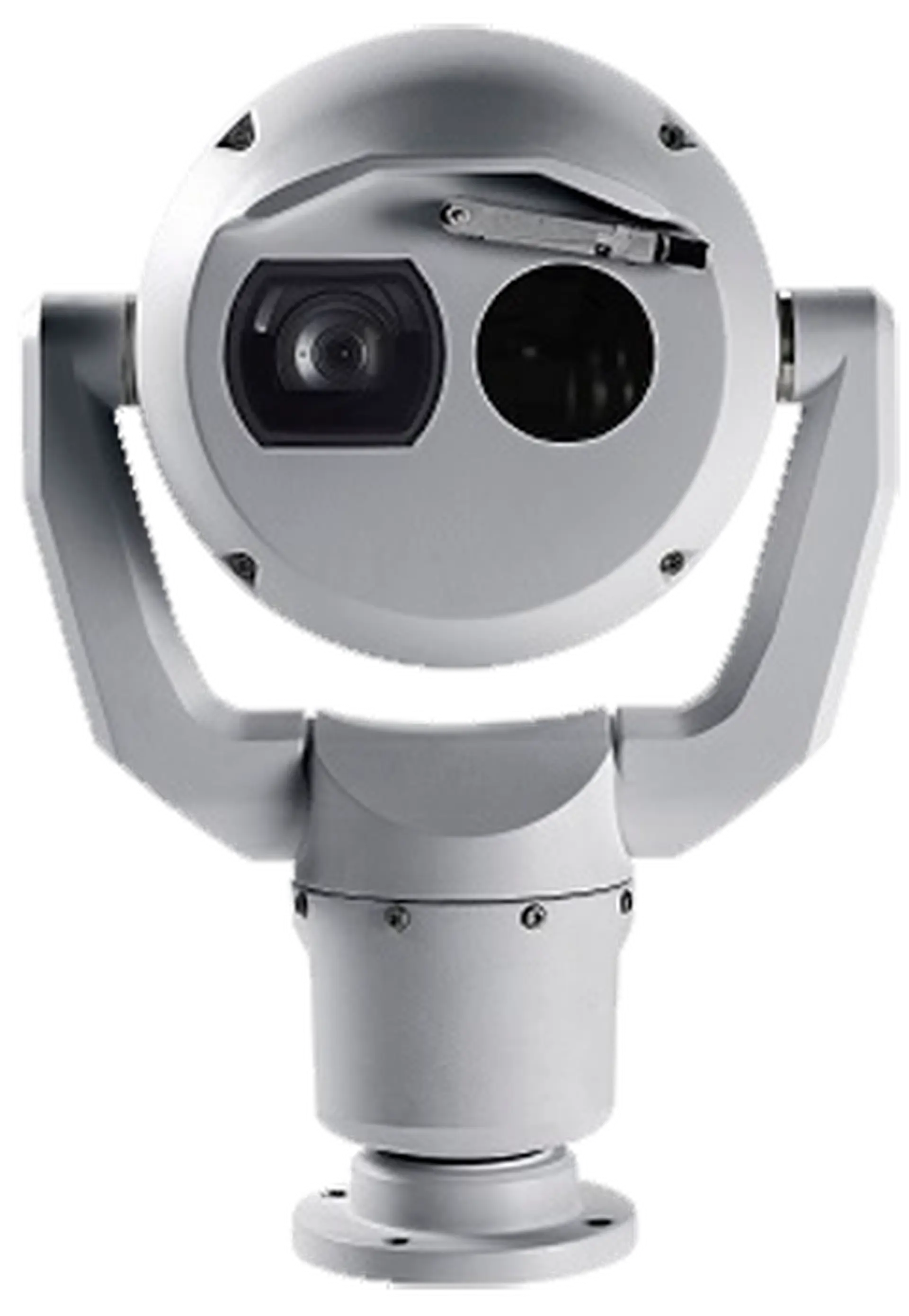

PTZ thermal VGA-50mm 2MP 30x 30Hz, gray
