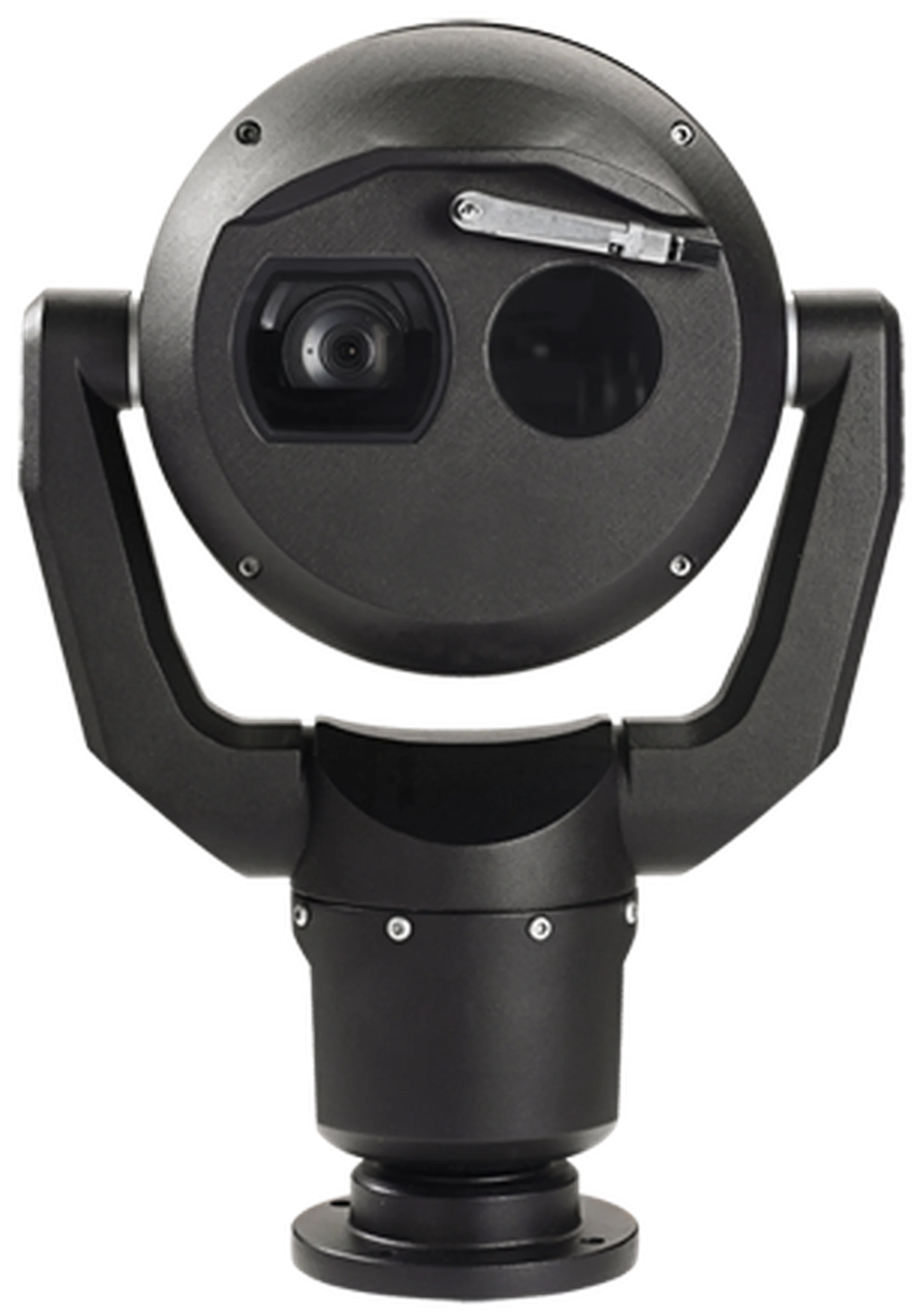

PTZ thermal VGA-50mm 2MP 30x 9Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30BVS
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; <9Hz Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x); 50 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-50mm 2MP 30x 9Hz, black
The camera features a unique metadata fusion capability that blends detected events from both the thermal and visible image streams. This ensures operators receive immediate notifications of critical activity, eliminating the need to constantly monitor both feeds and providing a higher level of situational awareness even through smoke, dust, or severe weather.
Equipped with a high-sensitivity VGA un-cooled vanadium oxide microbolometer and a 50 mm Athermal lens, the thermal imager delivers exceptional early detection. It can reliably detect objects at distances up to 4,517 meters (14,820 feet) based on DRI criteria, maximizing the ability to identify and respond to long-range threats before they escalate.
Yes. The built-in Intelligent Video Analytics can trigger alarms when the visible imager detects moving objects within defined alarm fields, even while the camera is panning or tilting. This means guard tours sweeping across monitored areas can automatically alarm on intruders, reducing the time a threat can slip by unnoticed. It can also seamlessly trigger the Intelligent Tracking feature to automatically follow the detected object.
Absolutely. Engineered with a ruggedized all-metal body, the camera withstands IK10-level impacts and continuous low-frequency vibration. It complies with IP68 standards, eliminating the risk of dust or water ingress without requiring pressurized housings. Additionally, an embedded image stabilization algorithm corrects shaky video, ensuring a stable, clear field of view when mounted on unstable structures like tall poles or bridges.
The camera is secure by design, requiring secure channels and service-level passwords upon initial setup. It supports state-of-the-art TLS 1.2 protocols with AES 256-bit encryption for web browser access. Superior defense against malicious attacks is guaranteed by an embedded login firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support, ensuring only authenticated firmware can be uploaded.
