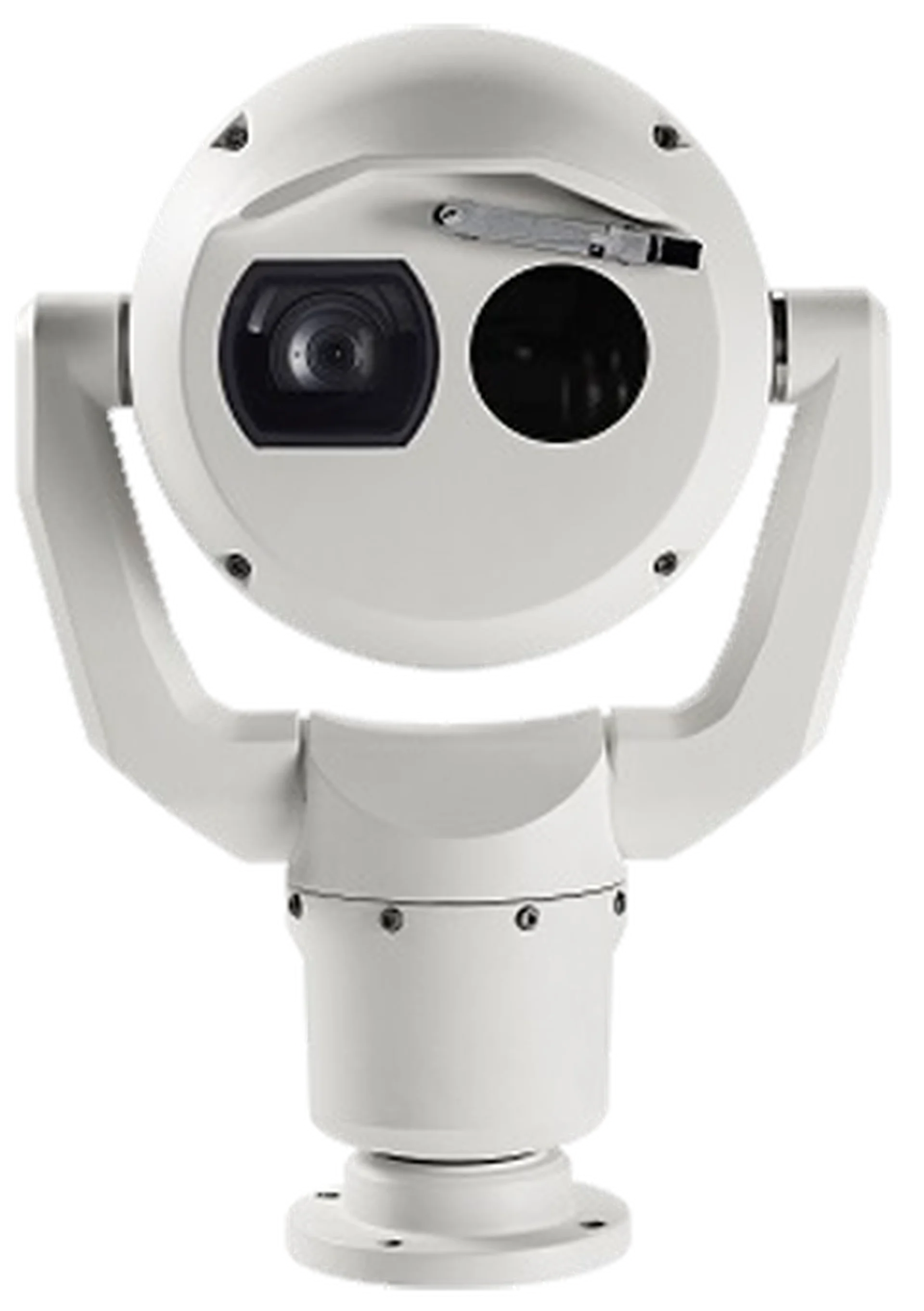

PTZ thermal VGA-50mm 2MP 30x 9Hz, white
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30WVS
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; <9 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x); 50 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-50mm 2MP 30x 9Hz, white
The metadata fusion feature enables operators to receive notification of detected events from both thermal and visible image streams, regardless of which image stream they are viewing. This gives operators a much higher level of situational awareness and eliminates the need to monitor both visible and thermal images constantly. Once alerted, operators can easily switch to the thermal image to see the objects creating the alarm.
Yes, Intelligent Video Analytics can trigger an alarm when the visible imager detects objects in motion in alarm fields while the camera is moving. Guard tours sweeping across monitored areas provide an intruder less time to slip by and can automatically alarm on those intruders. If desired, the alarm can even be used to trigger the Intelligent Tracking feature.
The camera is environmentally sealed and complies with Type 6P and IP68 standards, eliminating any risk of dust or water ingress. It features an all-metal body engineered to withstand IK10-level impacts and continuous low-frequency vibration. Additionally, both windows incorporate embedded defrosters and a highly durable silicone wiper to minimize the build-up of snow and ice, ensuring the highest-possible image details in extreme cold and moist conditions.
The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology and is equipped with a fixed focal length Athermal lens. This provides exceptional early detection capabilities, allowing for object detection up to 4,517 meters (14,820 feet) based on DRI criteria, which maximizes the ability to detect and react to long-range threats.
Special measures ensure the highest level of security for device access and data transport. The camera is only accessible over secure channels, and web browser access can be protected using HTTPS or other secure protocols that support state-of-the-art TLS 1.2 protocol with updated cipher suites including AES encryption with 256-bit keys. Superior protection from malicious attacks is guaranteed by the Embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support.
