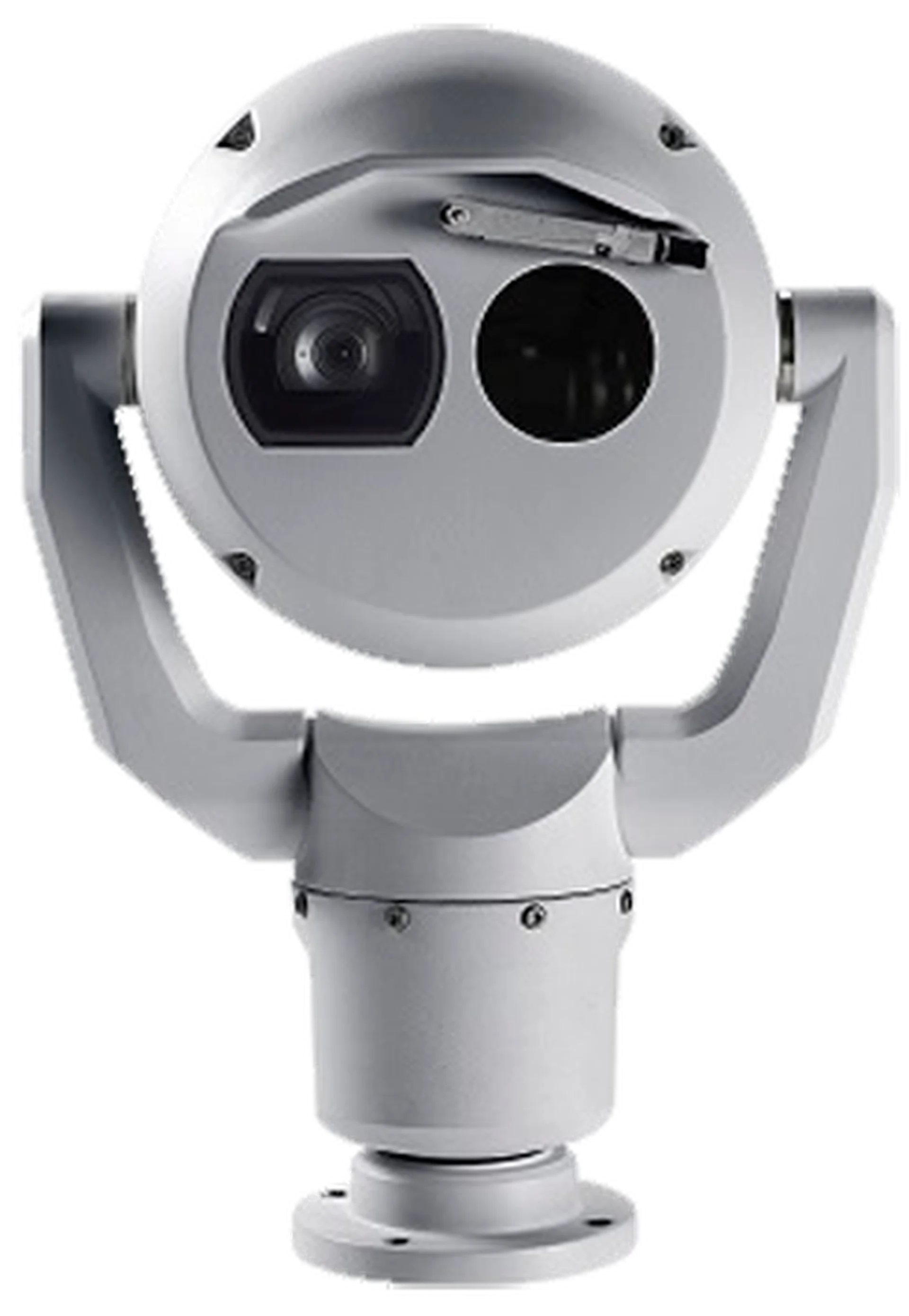

PTZ thermal VGA-9mm 2MP 30x 30Hz, gray
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30GVF9
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up 800 m (2625 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x) ; 9 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 70° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-9mm 2MP 30x 30Hz, gray
The metadata fusion feature allows operators to receive notifications of detected events from both the thermal and visible image streams, regardless of which stream they are currently viewing. This integrated approach ensures critical activity is never missed, providing a complete understanding of the environment without the need to constantly monitor both feeds.
Yes, the built-in Intelligent Video Analytics can trigger alarms and detect objects in motion even while the camera is actively moving on guard tours. If an object is detected during a sweep of the monitored area, the system can automatically activate the Intelligent Tracking feature to keep the subject in view, providing continuous context and visibility.
The camera provides exceptional early detection, capable of identifying objects up to 800 meters (2,625 feet) based on DRI criteria. This un-cooled vanadium oxide microbolometer technology allows security teams to detect risks early in darkness, fog, smoke, or heavy dust, enabling proactive responses before situations escalate.
Yes, the all-metal body is engineered to withstand IK10-level impacts and continuous low-frequency vibration. It is environmentally sealed to IP68 standards and features an integrated silicone wiper alongside embedded window defrosters. This ruggedized design ensures the highest availability of usable images in harsh conditions, including freezing rain, snow, and heavy wind.
The system is secure by design, featuring an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. Device access and data transport are protected using HTTPS, TLS 1.2, and AES 256-bit encryption. This multi-layered approach ensures that video data remains secure from capture to delivery, protecting against unauthorized access and maintaining the integrity of the system.
