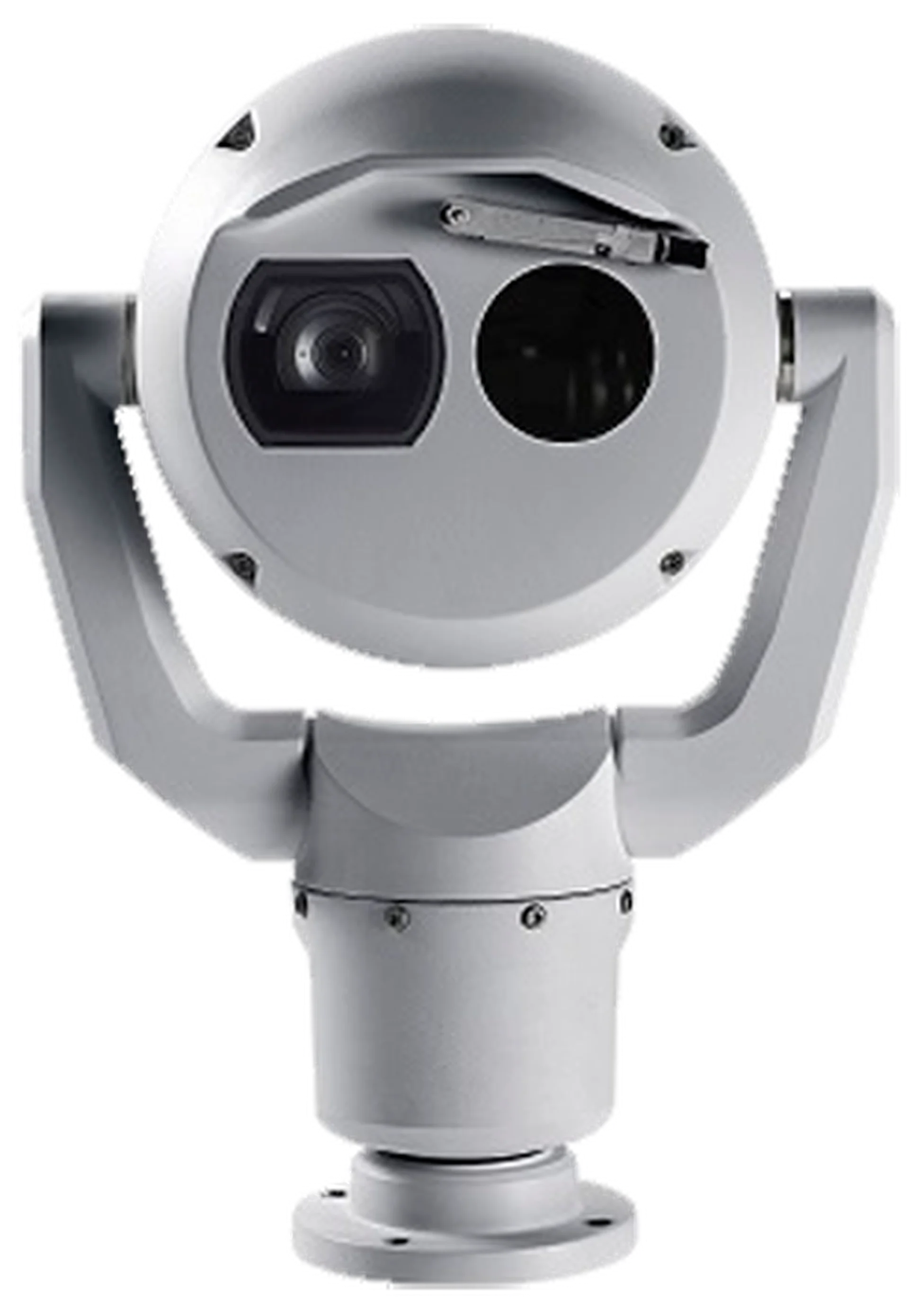

PTZ thermal VGA-50mm 2MP 30x 30Hz, gray
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30GVF
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x); 50 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-50mm 2MP 30x 30Hz, gray
The metadata fusion feature alerts operators to detected events from both the thermal and visible image streams simultaneously, regardless of which feed is currently being viewed. This capability eliminates the need to constantly monitor both screens, providing continuous visibility and ensuring teams can respond earlier to potential risks.
Equipped with a 50 mm Athermal lens and a 30Hz frame rate, the thermal imager delivers smooth, high-resolution video that maximizes detection distances. This allows the system to detect objects up to 4,517 meters (14,820 feet) away based on DRI criteria, giving operators the critical time needed to understand the context and take confident action.
Yes. Intelligent Video Analytics can trigger alarms and track moving objects even while the camera is in motion. By defining alarm fields across the pan-tilt-zoom views, the system automatically detects intruders during sweeping guard tours, reducing blind spots and ensuring continuous operational awareness.
Built for extreme environments, the camera features an IP68-rated, IK10 all-metal housing that withstands high winds, continuous vibration, and heavy rain. It also includes an integrated silicone wiper and embedded window defrosters to prevent the build-up of snow and ice, ensuring high-quality images and reliable performance when it matters most.
The camera is secure by design, utilizing an embedded Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to protect network access. Video streams are encrypted using TLS 1.0 and AES 256-bit keys, ensuring that critical data remains cyber-resilient from capture to delivery without compromising system performance.
