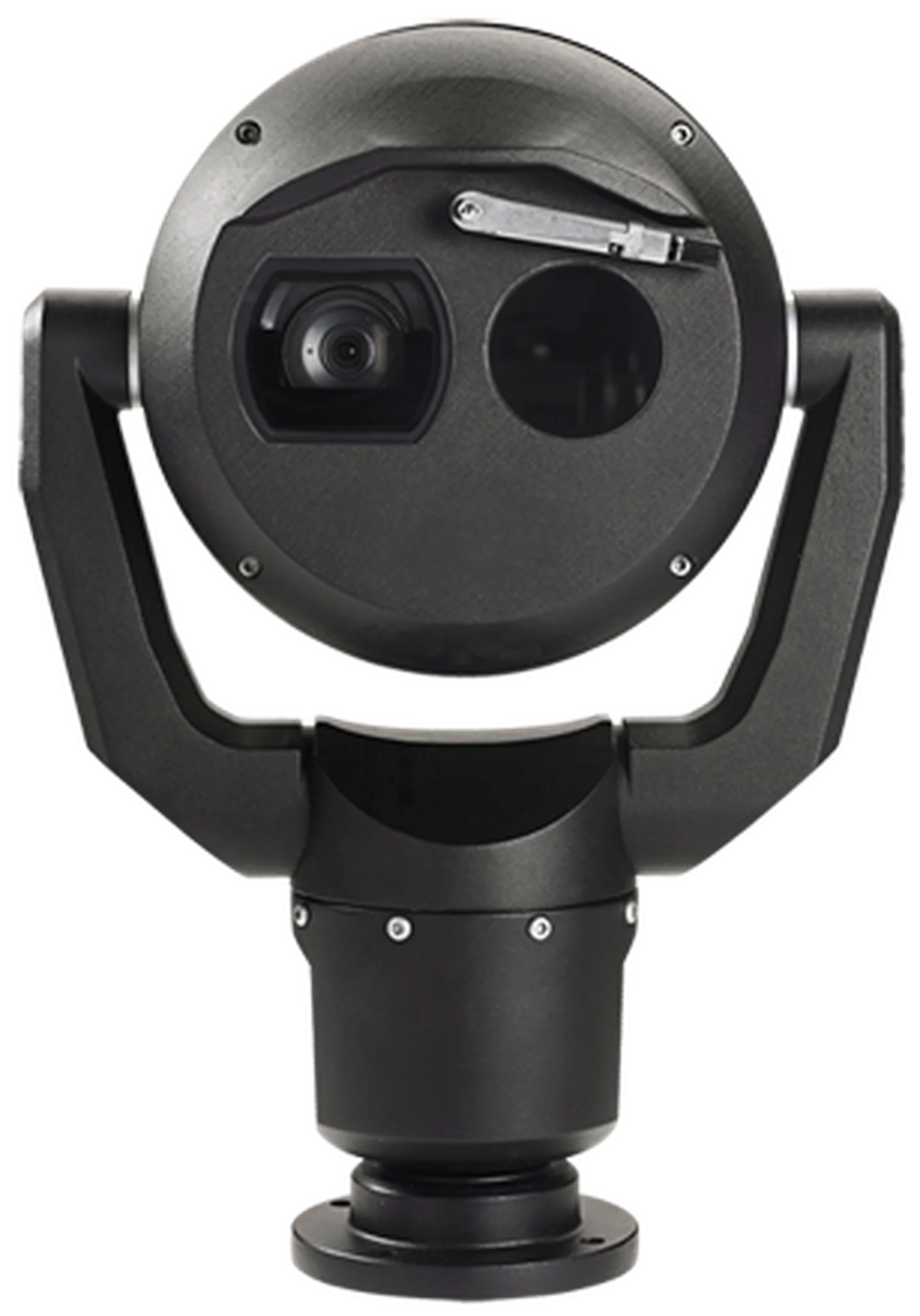

PTZ thermal QVGA-19mm 2MP 30x 9Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30BQS
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 1746 m (5728 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 320×240 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; up to 9 Hz or 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x) ; 19 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 16° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal QVGA-19mm 2MP 30x 9Hz, black
The camera features a ruggedized, all-metal body and incorporates a high-performance thermal imager sitting side-by-side with an HD visible imager. This dual-imager approach is designed to provide the highest availability of usable images, delivering clear visual intelligence regardless of challenging lighting conditions, high winds, rain, fog, dust, or smoke.
The unique metadata fusion feature enables operators to receive notifications of detected events from both the thermal and visible image streams simultaneously, regardless of which feed they are actively viewing. This provides the ultimate in situational awareness by eliminating the need to constantly monitor both streams, helping teams see clearly and act confidently.
The MIC IP fusion 9000i offers exceptional early detection capabilities, providing object detection up to 1,746 meters (5,728 feet) based on DRI criteria. This extended range allows security personnel to identify long-range risks and initiate rapid, informed responses before incidents escalate.
Yes, it features advanced on-board Intelligent Video Analytics capable of reliable object detection even when the camera is on guard tours. If an object triggers an alarm field during a pan, tilt, or zoom movement, the system can automatically activate intelligent tracking to follow the subject and keep it securely in view.
The system is secure by design, utilizing an embedded login firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. It mandates secure channels for initial setup and supports state-of-the-art TLS 1.2 protocols with AES 256-bit encryption, ensuring that video data and device access remain fully protected against malicious attacks.
