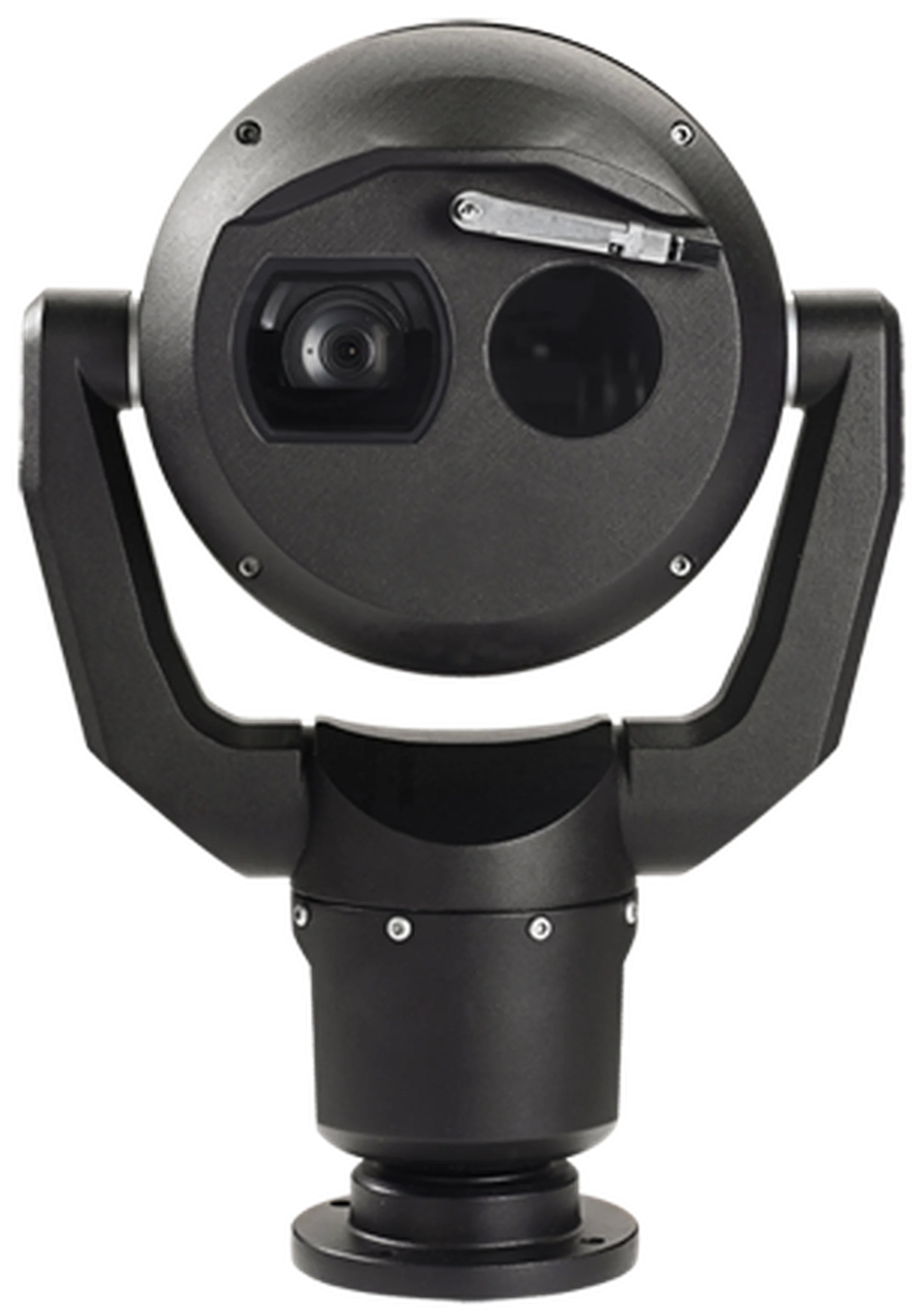

PTZ thermal VGA-50mm 2MP 30x 30Hz, black
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30BVF
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal VGA 640×480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x); 50 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-50mm 2MP 30x 30Hz, black
The MIC IP fusion 9000i features a unique metadata fusion capability that combines data from both the thermal and HD visible image streams. If an event is detected by the thermal imager, operators receive an instant notification regardless of which stream they are currently viewing. This eliminates the need to constantly monitor both feeds and ensures that critical activity is never missed, even in environments with limited visibility like heavy smoke, dust, or fog.
Yes. Engineered for extreme environments, the camera features an all-metal body designed to withstand IK10-level impacts and continuous low-frequency vibration. It is environmentally sealed, complying with IP68 standards to prevent dust and water ingress. With a wide operating temperature range, superior corrosion protection, and an embedded window defroster, the system delivers reliable visual intelligence in rain, snow, high winds, and extreme cold.
The high-performance thermal imager offers exceptional early detection capabilities, allowing the system to identify objects up to 4,517 meters (14,820 feet) away based on DRI (Detection, Recognition, and Identification) criteria. This long-range visibility provides security teams with crucial advanced warning, enabling them to understand the context of an approaching risk and initiate a proactive response long before an incident escalates.
Yes. The system features advanced on-board Intelligent Video Analytics that can detect, track, and analyze moving objects even when the camera is conducting routine guard tours. If the visible imager detects an object in an active alarm field while sweeping across a monitored area, it can trigger an immediate alert and automatically activate the Intelligent Tracking feature to keep the subject centered in the field of view.
The MIC IP fusion 9000i is secure by design, incorporating an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to protect device access and data transport. It requires secure channels for initial setup and supports state-of-the-art TLS 1.2 protocols with AES 256-bit encryption. These built-in safeguards ensure that your video network remains protected from malicious attacks throughout its entire operational lifecycle.
