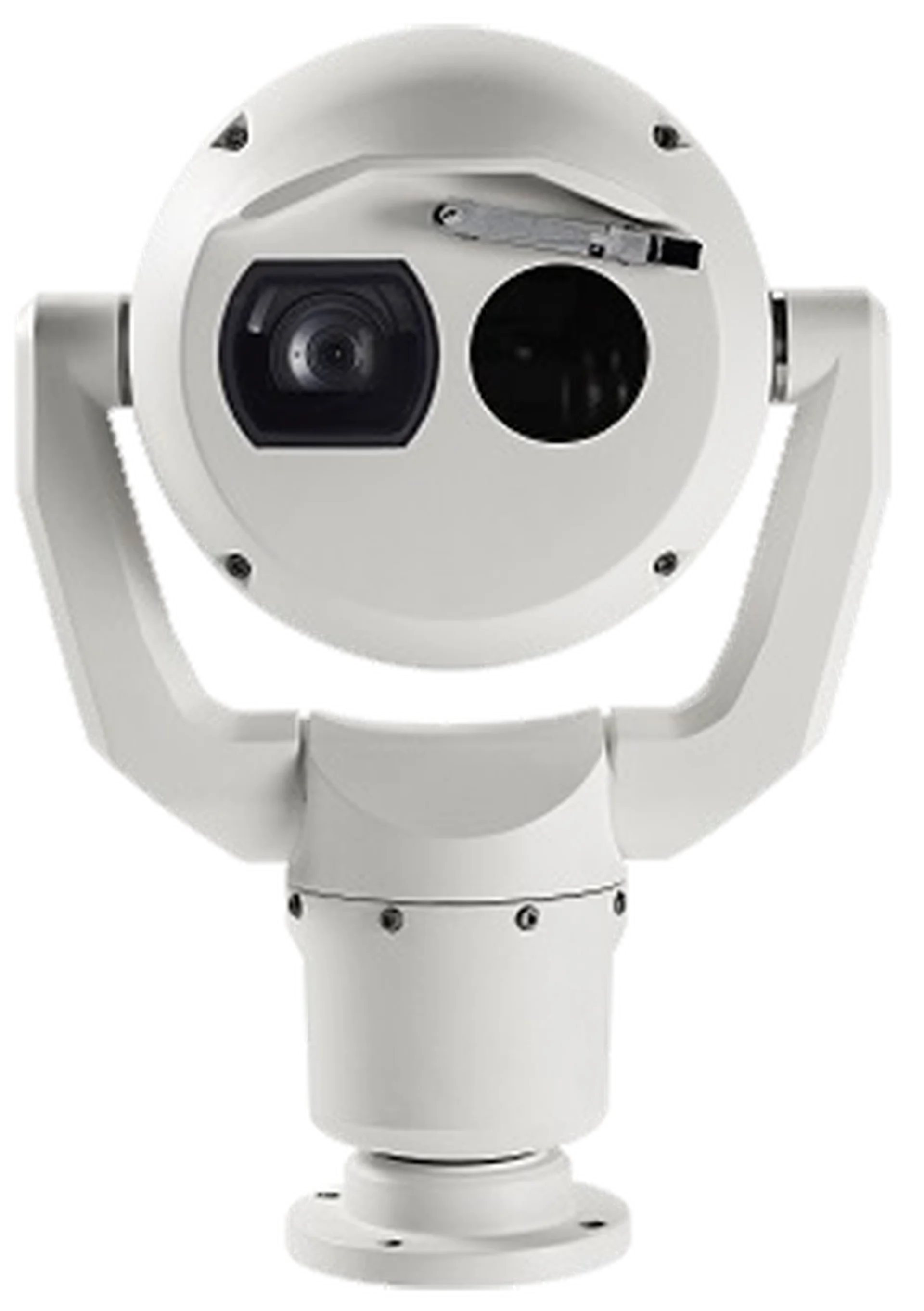

PTZ thermal VGA-50mm 2MP 30x 30Hz, white
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30WVF
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x); 50 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 12.4° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-50mm 2MP 30x 30Hz, white
The camera features a ruggedized, all-metal body engineered to withstand IK10-level impacts, continuous low-frequency vibration, and extreme temperatures ranging from -40 °C to +65 °C. It is environmentally sealed to Type 6P and IP68 standards, ensuring reliable visual intelligence in rain, dust, snow, and high-wind conditions. A durable silicone wiper and embedded window defrosters further maximize image details in extreme cold and moisture.
Metadata fusion blends detection data from both the thermal and visible image streams. This capability allows operators to receive notifications of detected events regardless of which video stream they are actively viewing. By eliminating the need to constantly monitor both feeds, teams gain a much higher level of situational awareness and can act earlier when risks are identified.
Yes, the integrated high-performance thermal imager provides exceptional early detection capabilities. Utilizing a 50 mm Athermal lens and VGA resolution, the system can detect objects up to 4,517 meters (14,820 feet) away based on DRI criteria, giving security personnel the foresight needed to respond to potential situations before they escalate.
Yes, the camera features Intelligent Video Analytics that can trigger alarms when the visible imager detects objects in motion, even while the camera is panning, tilting, or executing guard tours. This continuous edge analytics capability ensures that monitoring remains active across swept areas, automatically alerting operators to intruders and seamlessly triggering the Intelligent Tracking feature to keep subjects in view.
The system is secure by design, incorporating an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to guarantee data security. Access is protected by HTTPS and TLS 1.2 protocols using AES encryption with 256-bit keys. Additionally, no unauthorized software can be installed, and only authenticated firmware can be uploaded, ensuring continuous protection against malicious attacks.
