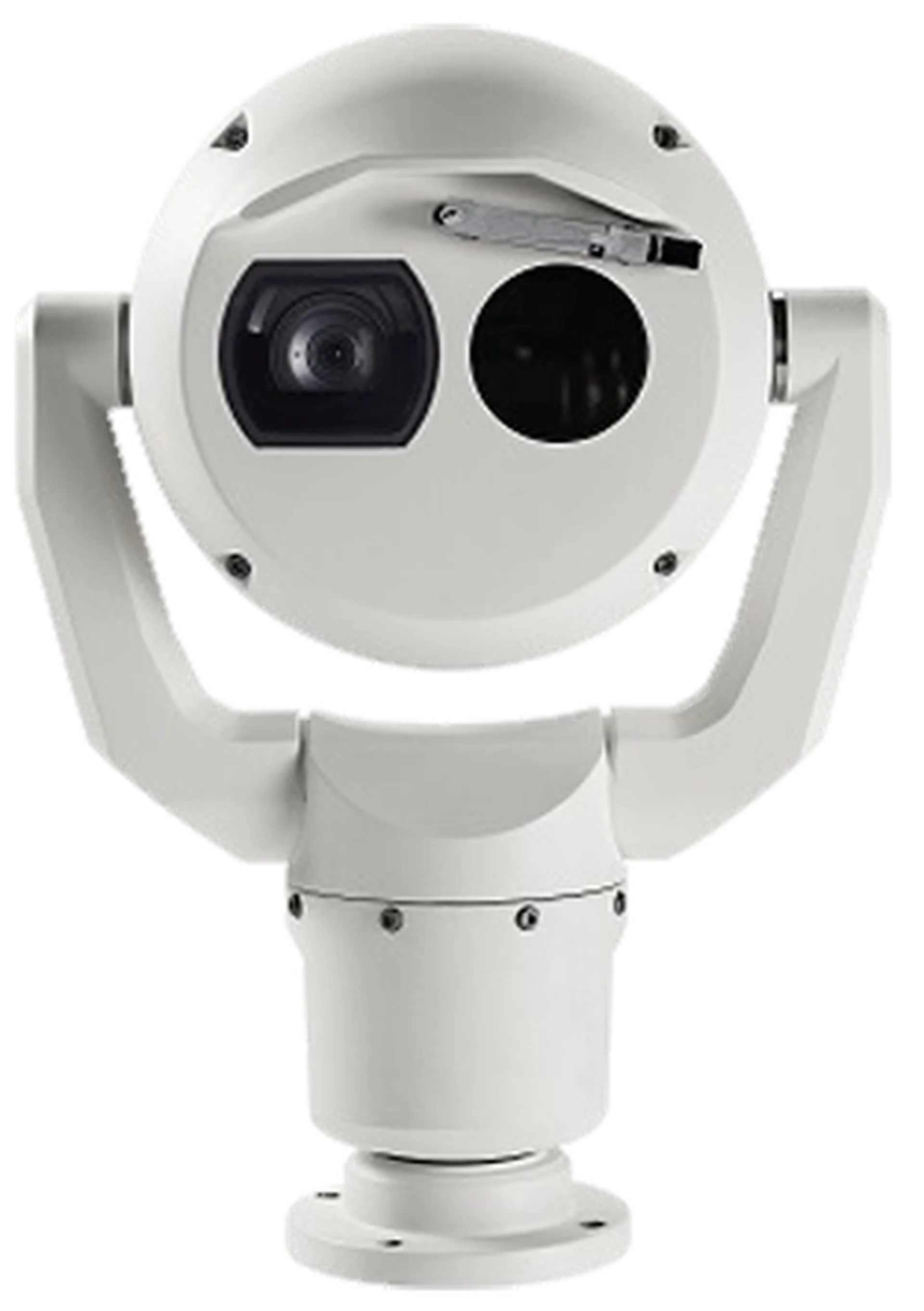

PTZ thermal VGA-9mm 2MP 30x 30Hz, white
The MIC IP fusion 9000i family are ruggedized PTZ cameras with exceptional object detection using side-by-side thermal and visible imagers. Engineered for the most extreme environments, it combines built-in Intelligent Video Analytics with metadata fusion for continuous situational awareness regardless of weather or lighting.
Commercial Type No: MIC-9502-Z30WVF9
Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
Unique metadata fusion feature provides the ultimate in situation awareness
Exceptional early detection capabilities: Object detection up 800 m (2625 ft) based on DRI criteria
Advanced on-board intelligent video tracking, object detection even when camera is on tours
Product Overview
Maximize situational awareness everywhere
Side-by-side thermal and visible imagers combine with metadata fusion to reveal hidden details in any lighting or weather condition.
Detect critical events earlier
High-performance thermal imaging enables precise object detection at distances up to 4,517 m (14,820 ft) to keep operators ahead of potential risks.
Maintain visibility in extreme environments
An environmentally sealed, IP68-rated housing withstands high winds, severe temperatures, and heavy impacts to ensure continuous operation.
Track targets without interruption
Built-in Intelligent Video Analytics detects and tracks moving objects automatically, even when the camera is actively panning or tilting.
Ensure clear images automatically
An integrated silicone wiper and embedded window defrosters remove moisture and ice build-up for reliable clarity in harsh climates.
Key Specifications
| Sensor type | 1/2.8 inch Exmor R CMOS (visible) + Uncooled microbolometer (thermal) |
|---|---|
| Resolution | 2MP visible + thermal QVGA 640 × 480 |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps (visible) ; 30 Hz (thermal) |
| Lens focal length (mm) | 4.3 – 129 mm visible (30x) ; 9 mm thermal |
| Lens zoom (x) | 30x (visible) |
| Horizontal field of view (°) | 2.3° – 64.7° (visible) ; 70° (thermal) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ thermal VGA-9mm 2MP 30x 30Hz, white
The metadata fusion feature enables operators to receive notifications of detected events from both the thermal and visible image streams, regardless of which feed they are actively viewing. This eliminates the need to constantly monitor both images side-by-side, giving teams a much higher level of situational awareness and the ability to quickly switch to the most useful view when an alarm occurs.
Designed for exceptional early detection, the thermal imager can detect objects up to 800 meters (2,625 feet) away based on DRI criteria. By utilizing high-sensitivity thermal technology and user-adjustable settings for contrast and gain, operators can identify potential risks earlier in challenging conditions like complete darkness, heavy fog, or thick smoke.
Yes. The built-in Intelligent Video Analytics can reliably detect, track, and analyze moving objects even when the camera is actively panning, tilting, or executing guard tours. Any part of the predefined alarm fields that enters the camera’s current view becomes active, allowing the system to automatically alert operators to intruders while sweeping across large monitored areas.
Yes. The camera features a ruggedized, all-metal body engineered to withstand IK10-level impacts and continuous low-frequency vibration. It is environmentally sealed to comply with IP68 and Type 6P standards, eliminating the risk of dust or water ingress. With a durable silicone window wiper and embedded defrosters, the system maintains clear visibility in rain, snow, flying debris, and temperatures ranging from -40 °C to +65 °C.
Data security is built into the camera's architecture. It features an onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to guarantee secure device access. All web browser and viewing client access is protected using HTTPS and TLS 1.2 protocols with AES 256-bit encryption. Furthermore, the system only accepts authenticated firmware uploads, ensuring resilient protection against malicious attacks.
