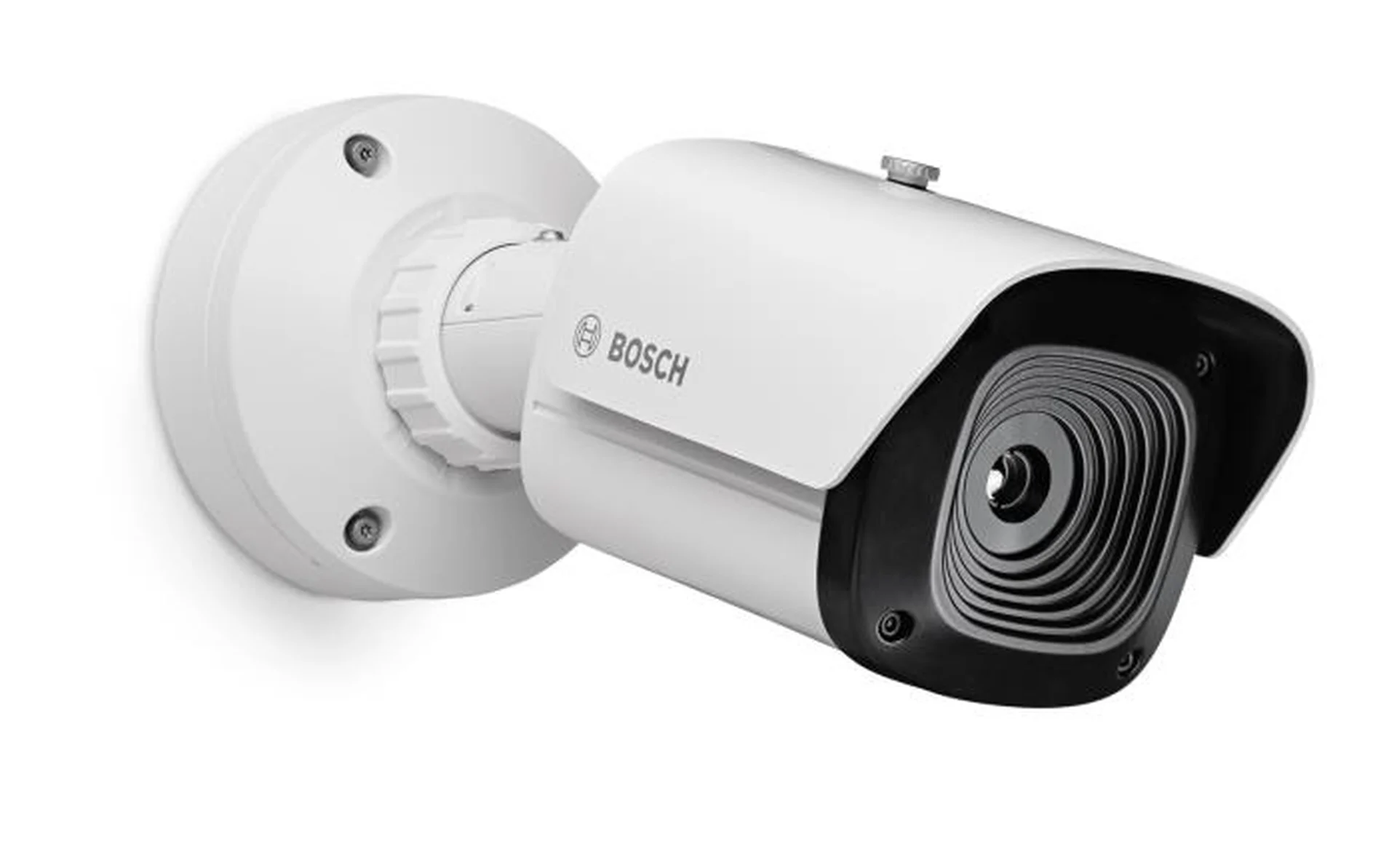

DINION thermal 8100i - QVGA
The DINION thermal 8100i - QVGA family offers detection without visible light to meet diverse mission-critical perimeter detection needs with multiple lens options from telephoto to wide-angle. Advanced thermal imaging and built-in IVA Pro analytics combine to help achieve an ultra-low false alarm rate, while AI-based (3D) autocalibration supports rapid installation.
Offers lens options from telephoto to wide-angle to suit diverse monitoring needs.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
QVGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal cameras with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Resolution | 320 x 240 |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 3 mm ; 5 mm ; 9 mm ; 18 mm |
| Horizontal field of view (°) | 80° ; 45° ; 24° ; 12° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the DINION thermal 8100i - QVGA
By detecting heat signatures instead of visible light, the camera delivers high-resolution VGA thermal imaging. This allows operators to monitor large perimeters and identify potential threats in zero-lux conditions, smoke, fog, or heavy rain.
No, the uncooled microbolometer detects heat signatures emitted by objects. This enables the camera to visualize subtle temperature differences and provide exceptional situational awareness in complete darkness, smoke, or fog.
A key advantage of the DINON thermal 8100i is the combination of Deep Neural Network (DNN)-based person & vehicle detectors with proven motion and foreground/background analysis. This advanced approach improves the detection accuracy while reducing the false alarm caused by animals, lines, vegetation, shadows and other environmental factor.
The camera utilizes AI-driven 3D autocalibration to streamline the setup process. This minimizes configuration effort, allowing installers to establish highly accurate perimeter detection quickly and precisely without complex manual adjustments.
Designed for mission-critical applications, the camera features a rugged, corrosion-resistant housing rated to IP66/IP67 and IK10 standards. It maintains reliable operation across a wide temperature range, protecting against rain, dust, and vandalism.
The camera ensures the highest level of cyber resilience with an onboard Trusted Platform Module (TPM), Embedded Login Firewall, and Public Key Infrastructure (PKI) support. It enforces secure channels on initial setup and supports state-of-the-art TLS 1.2 encryption.
