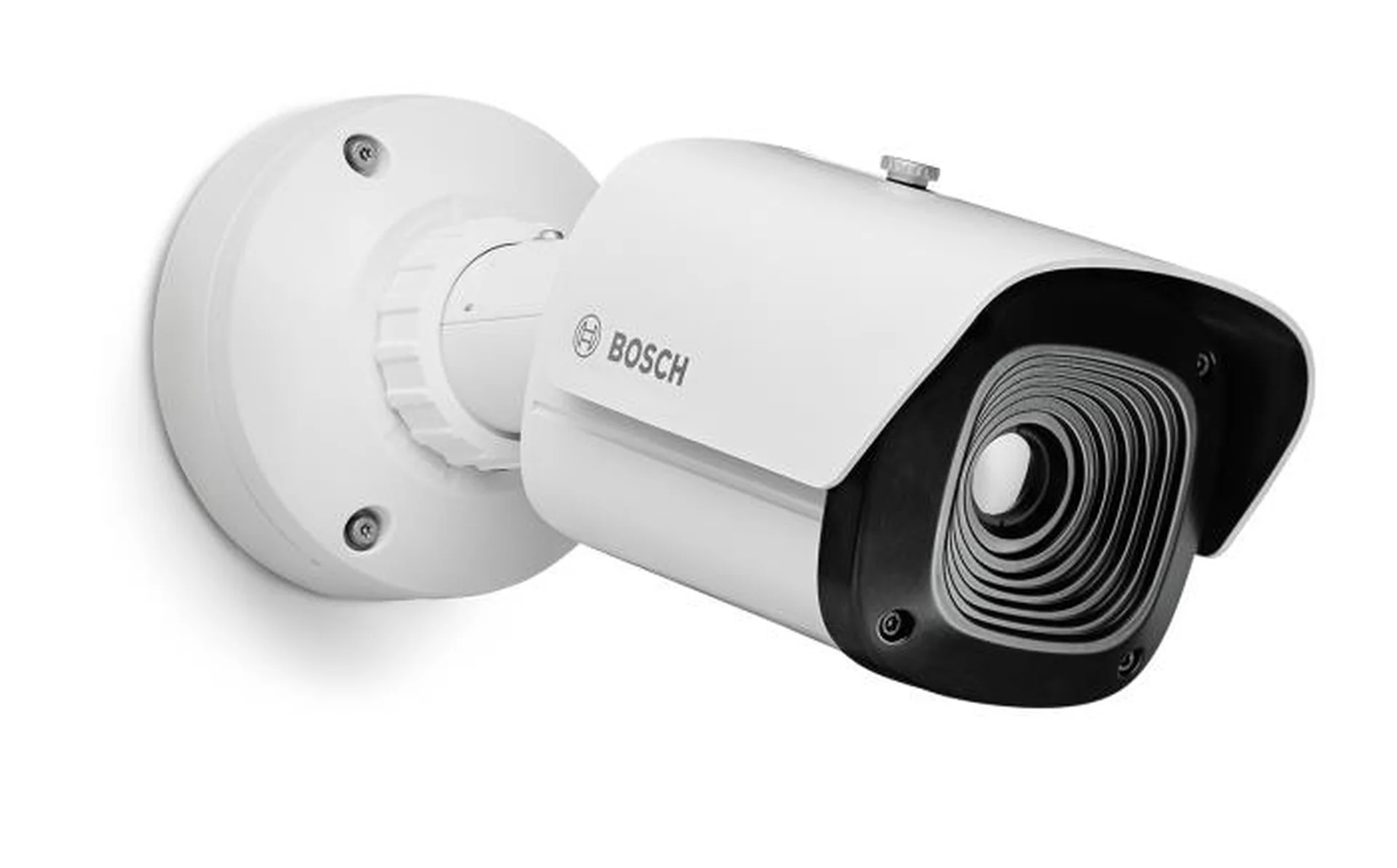

Bullet thermal QVGA 12° 30Hz
The DINION thermal 8100i - QVGA family offers detection without visible light to meet diverse mission-critical perimeter detection needs with multiple lens options from telephoto to wide-angle. Advanced thermal imaging and built-in IVA Pro analytics combine to help achieve an ultra-low false alarm rate, while AI-based (3D) autocalibration supports rapid installation.
Commercial Type No: NBT-8700-F18QF
Offers lens options from telephoto to wide-angle to suit diverse monitoring needs.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
QVGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal cameras with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Resolution | 320 x 240 |
| Sensor technology | Thermal imaging |
| Thermal Sensitivity: < 30 mK at 25 °C (77 °F) | N/A |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 18 mm |
| Horizontal field of view (°) | 12° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal QVGA 12° 30Hz
The camera comes with IVA Pro Buildings and IVA Pro Perimeter pre-installed, delivering highly reliable deep-learning-based detection and tracking. It is extremely resistant to false triggers caused by challenging environmental factors like rain, wind, moving trees, snow, and reflections, as well as shadows and small animals. This ensures operators achieve an ultra-low false alarm rate and can confidently detect, track, and classify professional intruders.
The DINION thermal 8100i - QVGA operates without the need for visible light by detecting heat signatures emitted by objects and visualizing temperature differences. This makes it highly effective in outdoor environments where visual light is absent or compromised, such as complete darkness, smoke, and fog. Its uncooled microbolometer delivers unparalleled thermal imaging to maintain exceptional situational awareness.
Yes, the camera features AI-based (3D) autocalibration which simplifies installation, resulting in a fast and simple setup. Additionally, configuration effort for the built-in Intelligent Video Analytics is minimized, allowing installers to easily define smart sets of alarm and counter rules. Using a wireless installation dongle and the Project Assistant app, installers can also perform the initial configuration wirelessly from a mobile device.
Designed for robust reliability in any outdoor environment, the camera features a rugged, corrosion-resistant aluminum housing with a dehumidifying membrane. It is rated according to IP66, IP67, and IK10 standards, safeguarding the device against rain, dust, vandalism, and tampering. It also operates reliably in a wide ambient temperature range between -40 °C to +55 °C (-40 °F to 131 °F).
The DINION thermal 8100i - QVGA is secure by design, utilizing an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to guarantee superior protection from malicious attacks. It enforces password protection on initial setup and ensures that only authenticated firmware can be uploaded. Furthermore, the camera holds IEC 62443-4-1 and UL CAP cybersecurity certifications, and it is fully NDAA and TAA compliant.
