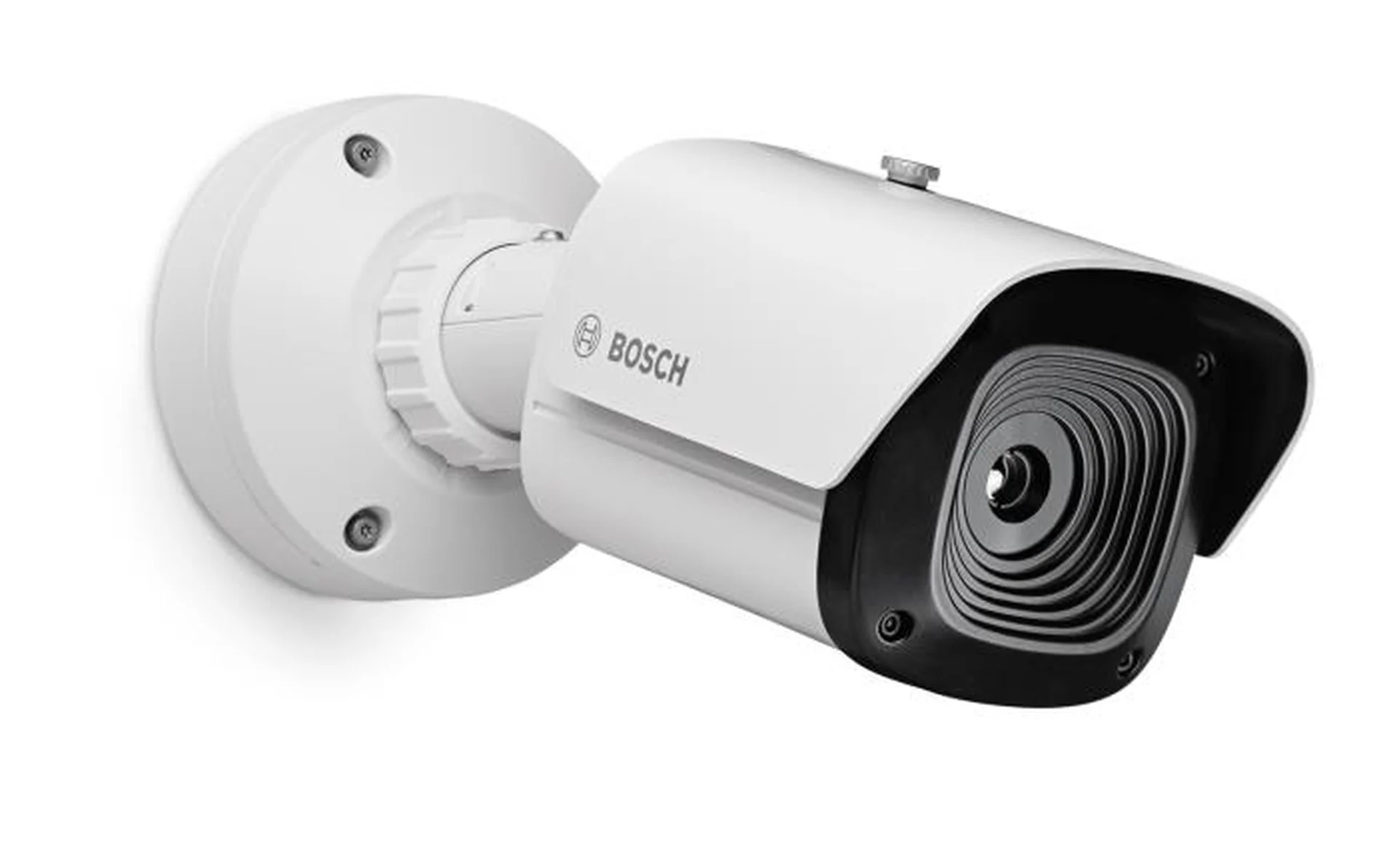

Bullet thermal QVGA 24° 30Hz
The DINION thermal 8100i - QVGA family offers detection without visible light to meet diverse mission-critical perimeter detection needs with multiple lens options from telephoto to wide-angle. Advanced thermal imaging and built-in IVA Pro analytics combine to help achieve an ultra-low false alarm rate, while AI-based (3D) autocalibration supports rapid installation.
Commercial Type No: NBT-8700-F09QF
Offers lens options from telephoto to wide-angle to suit diverse monitoring needs.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
QVGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal cameras with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Resolution | 320 x 240 |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 9 mm |
| Horizontal field of view (°) | 24° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal QVGA 24° 30Hz
By detecting heat signatures emitted by objects, the camera delivers unparalleled thermal imaging without the need for visible light. It visualizes subtle temperature differences, providing exceptional situational awareness in complete darkness, smoke, and fog.
The camera comes with IVA Pro Buildings and IVA Pro Perimeter pre-installed. These deep-learning video analytics reliably detect, track, and classify objects while remaining extremely resistant to false triggers caused by rain, wind, moving trees, and small animals. This ensures an ultra-low false alarm rate and reliable perimeter intrusion detection.
Configuration effort is minimized through AI-based 3D autocalibration, resulting in a fast and simple installation. Installers can also utilize a wireless installation dongle via the camera's USB-C port to perform the initial configuration wirelessly using the Project Assistant app.
The camera is highly cybersecure, featuring an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. Superior protection from malicious attacks is guaranteed by an Embedded Login Firewall, and network access can be protected using 802.1x authentication with EAP/TLS.
Yes, the robust design of the camera features a corrosion-resistant housing rated to IP66, IP67, and IK10 standards. This safeguards the device against rain, dust, and vandalism, ensuring reliable operation in ambient temperatures ranging from -40 °C to 55 °C (-40 °F to 131 °F).
