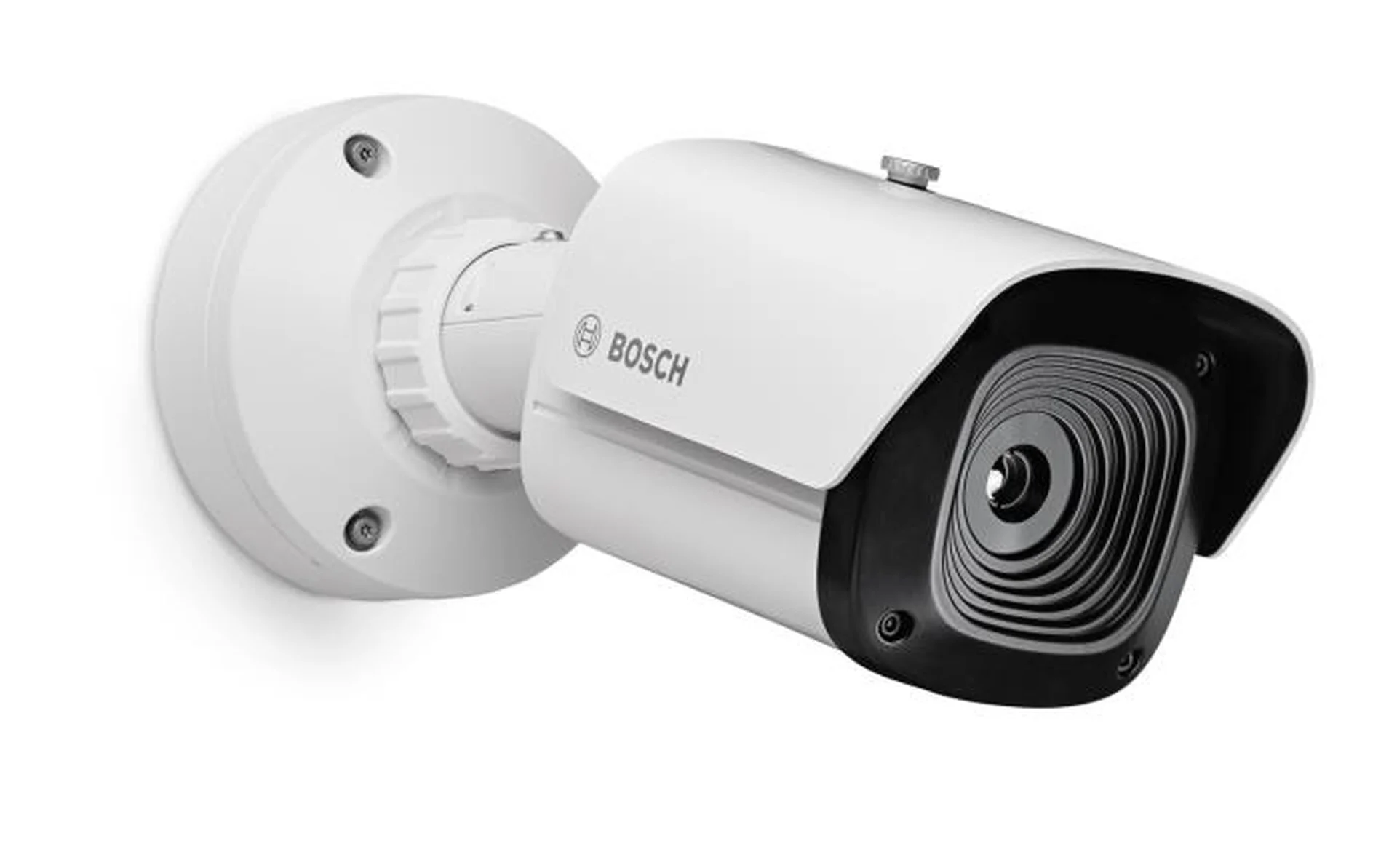

Bullet thermal QVGA 80° 30Hz
The DINION thermal 8100i - QVGA family offers detection without visible light to meet diverse mission-critical perimeter detection needs with multiple lens options from telephoto to wide-angle. Advanced thermal imaging and built-in IVA Pro analytics combine to help achieve an ultra-low false alarm rate, while AI-based (3D) autocalibration supports rapid installation.
Commercial Type No: NBT-8700-F03QF
Offers lens options from telephoto to wide-angle to suit diverse monitoring needs.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
QVGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal cameras with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
|---|---|
| Sensor technology | Thermal imaging |
| WDR technology | Thermal sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 fps - 30 fps |
| Lens focal length (mm) | 3 mm |
| Horizontal field of view (°) | 80° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C - 55 °C (-40 °F - 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal QVGA 80° 30Hz
The camera incorporates an uncooled microbolometer to deliver unparalleled QVGA thermal imaging. By detecting heat signatures emitted by objects, it operates effectively without the need for visible light. This enables the camera to visualize subtle temperature differences and identify potential threats in complete darkness, smoke, fog, and other challenging outdoor environments.
The DINION thermal 8100i - QVGA comes pre-installed with IVA Pro Buildings and IVA Pro Perimeter. These highly reliable, deep-learning-based analytics provide accurate detection and tracking of persons and vehicles. By combining thermal imaging with IVA Pro Perimeter, the camera achieves an ultra-low false alarm rate, ignoring environmental triggers like rain, snow, moving trees, and small animals.
Yes, the camera offers lens options ranging from telephoto to wide-angle to suit diverse monitoring needs. Furthermore, it features AI-based 3D autocalibration, which simplifies the setup process. This AI-driven autocalibration ensures quick, precise configuration, minimizing the effort required by system integrators during deployment.
Designed for critical infrastructure, the camera features a robust, corrosion-resistant housing rated to IP66, IP67, and IK10 standards. This ensures reliable operation while resisting rain, dust, tampering, and vandalism. It can continuously operate in a wide ambient temperature range from -40 degrees Celsius to 55 degrees Celsius (-40 degrees Fahrenheit to 131 degrees Fahrenheit).
The camera is secure by design and compliant with NDAA and TAA regulations. It features an on-board Trusted Platform Module (TPM), an Embedded Login Firewall, and supports Public Key Infrastructure (PKI). Device access is protected using HTTPS and TLS 1.2 encryption, ensuring that only authenticated firmware can be uploaded and preventing malicious attacks on the network.
