MIC IP ultra 7100i

MIC IP ultra 7100i

IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.

  • UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)

  • Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining

  • Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity

  • Edge intelligence with Intelligent Tracking and object detection even when the camera is moving

  • Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene

Product Overview

Uninterrupted tracking across expansive areas

Built-in Intelligent Video Analytics detects and follows critical targets even while the camera is in motion, ensuring operators never lose sight of unfolding events.

Continuous operation in extreme environments

Engineered to exceed conventional mechanical capabilities, the heavy-duty housing withstands severe shock, vibration, and marine-level corrosion to deliver reliable performance anywhere.

Exceptional 4K clarity and stability

Optical image stabilization actively corrects shaky video caused by wind or traffic, providing operators with sharp, detailed 4K resolution for confident forensic analysis.

Reliable visibility in total darkness

An optional multispectral illuminator dynamically adjusts lighting intensity based on the zoom level, ensuring clear, evenly lit scenes without blinding overexposure.

Automatic defroster for clear imaging

An integrated window defroster rapidly melts accumulated ice and prevents condensation, minimizing maintenance needs and maintaining visibility in freezing conditions.

Key Specifications

Key specifications
Sensor type1 inch Exmor R CMOS
Resolution8MP
Low light technologystarlight
WDR technologyHDR
Frame rate (fps)1 – 30 fps
Lens focal length (mm)9.3 – 111.6 mm
Lens zoom (x)12x
Horizontal field of view (°)6.1° – 64.6°
Video compressionH.264 / AVC; H.265 / HEVC; M-JPEG
IP ratingIP66; IP68
Impact protectionIK10
Operating temperature-40 °C – 65 °C (-40 °F – 149 °F)
Analytics (built-in)Intelligent Video Analytics

Frequently Asked Questions

Common questions about the MIC IP ultra 7100i

The camera is built to withstand the harshest environments, featuring an industry-leading IP68 and Type 6P rating alongside an IK10 rating for impact resistance. Its anodized aluminum housing provides exceptional corrosion protection, while an integrated window defroster ensures clear visibility by melting ice and preventing condensation in freezing temperatures.

Designed for deployment on bridges, highways, and tall poles, the camera utilizes built-in optical image stabilization (OIS). If it detects continuous vibration or shock, the system dynamically corrects the video across both vertical and horizontal axes, ensuring a stable, 4K field of view without pixel loss.

Yes, the camera features advanced edge intelligence that allows Intelligent Video Analytics to detect and track objects even while the camera is moving. Whether on a guard tour or being manually operated, the system can automatically trigger an alarm if an object enters a predefined field, providing continuous situational awareness.

The camera is secure by design, incorporating an onboard Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. It utilizes advanced certificate handling and supports HTTPS and 802.1x network authentication, ensuring that all device access and video data transport remain strictly protected against malicious attacks.

The camera supports an optional dual-mode illuminator featuring both infrared and white light LEDs. Using integrated Constant Light technology, it dynamically steers the IR beam to match the camera's zoom level, distributing light uniformly to eliminate dark spots and overexposure for reliable detection at night.

In this family

MIC IP ultra 7100i

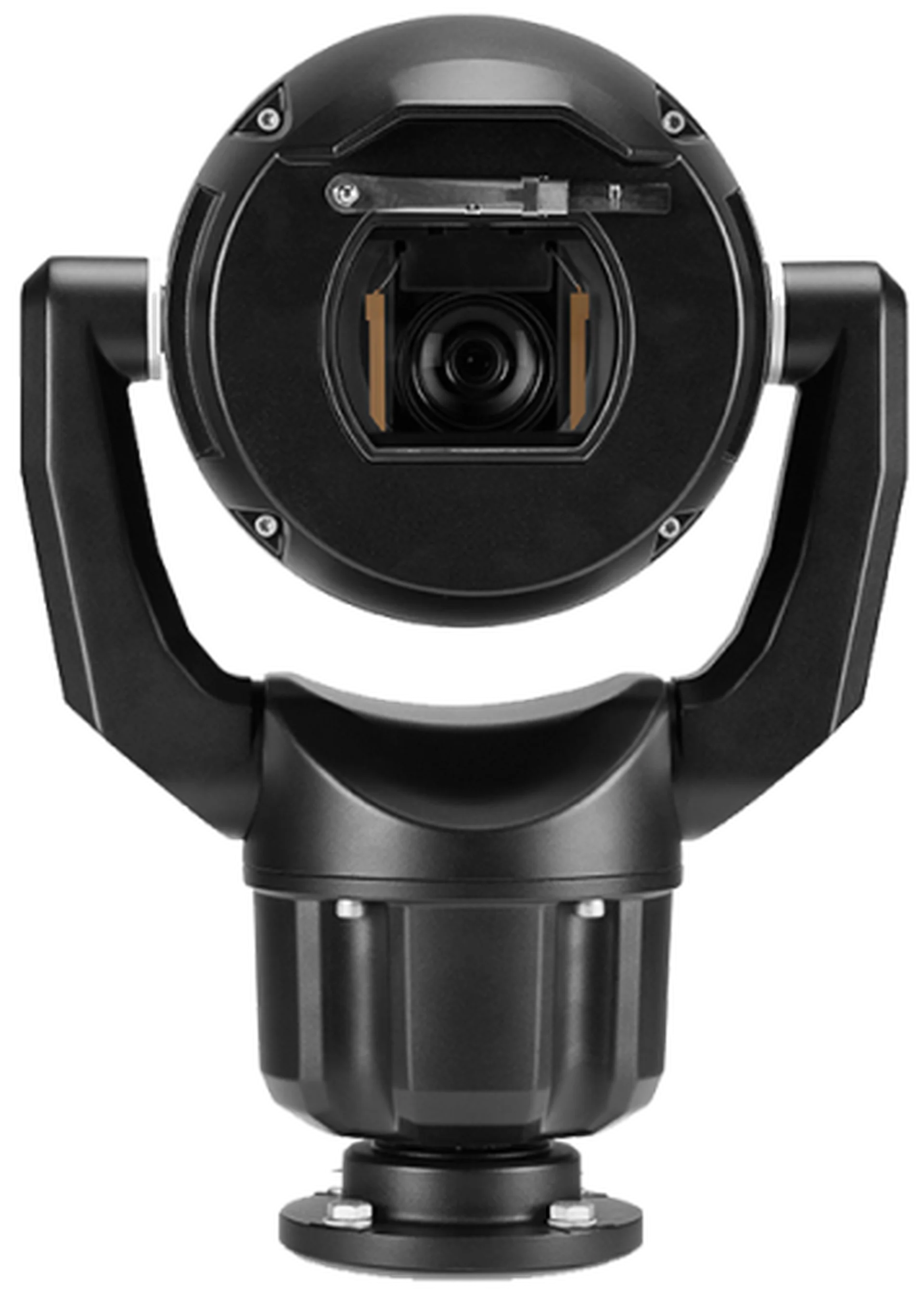

PTZ 8MP 12x IP68 enhanced black

IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.

View Details

PTZ 8MP 12x IP68 enhanced black

Sensor type1 inch Exmor R CMOS
Resolution8MP
Low light technologystarlight
WDR technologyHDR
View Details

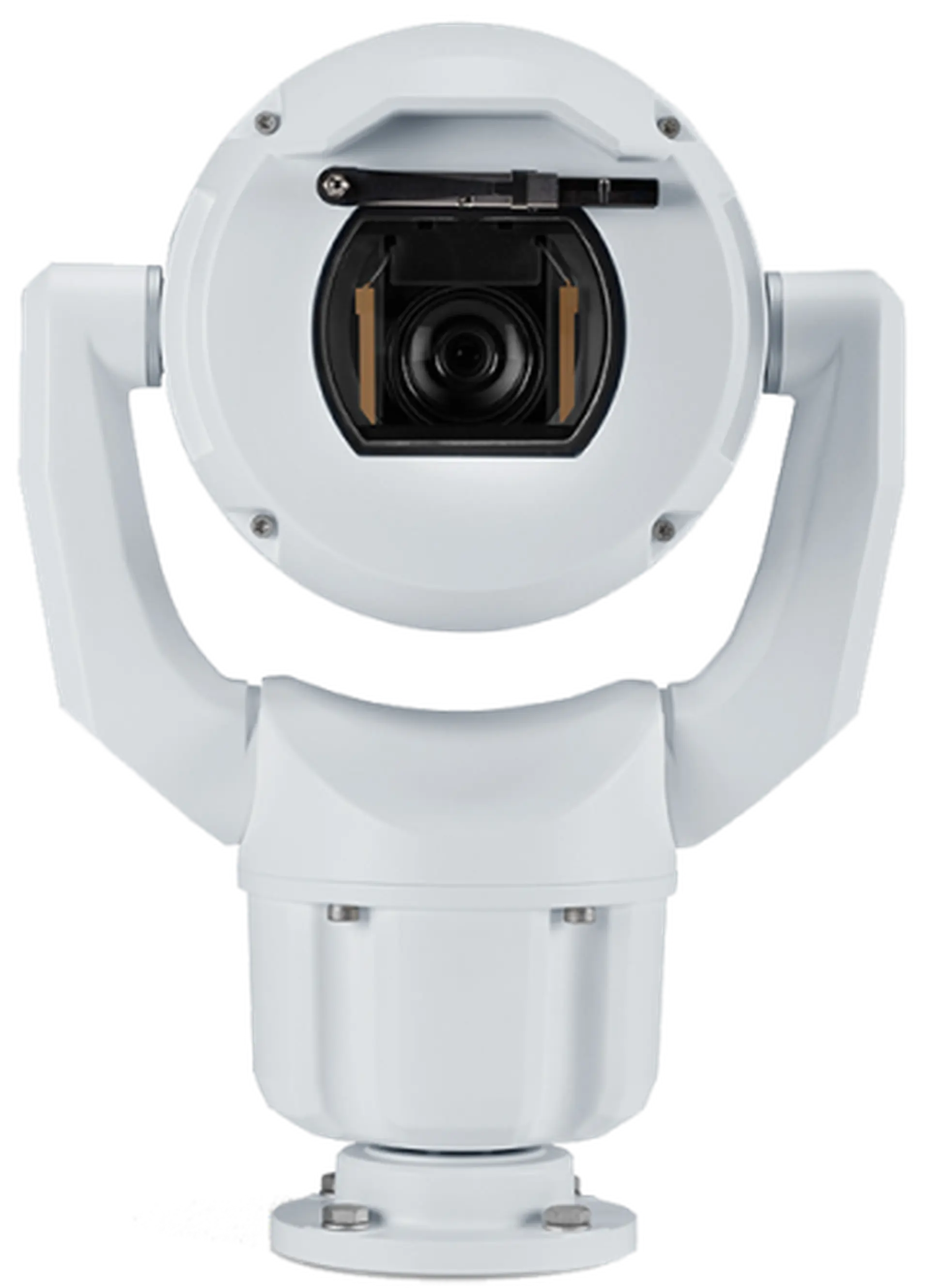

PTZ 8MP 12x IP68 enhanced white

IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.

View Details

PTZ 8MP 12x IP68 enhanced white

Sensor type1 inch Exmor R CMOS
Resolution8MP
Low light technologystarlight
WDR technologyHDR
View Details

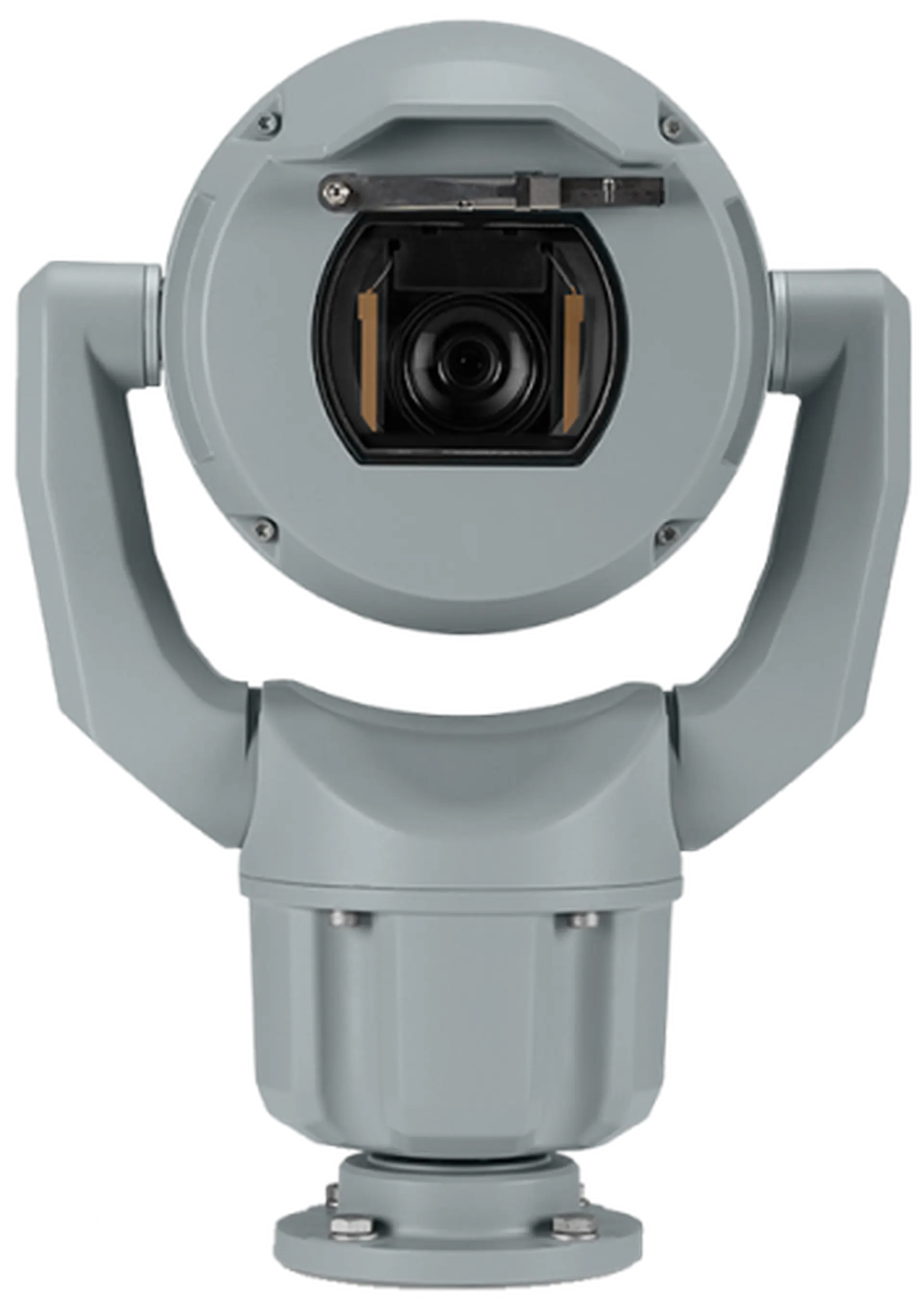

PTZ 8MP 12x IP68 enhanced gray
