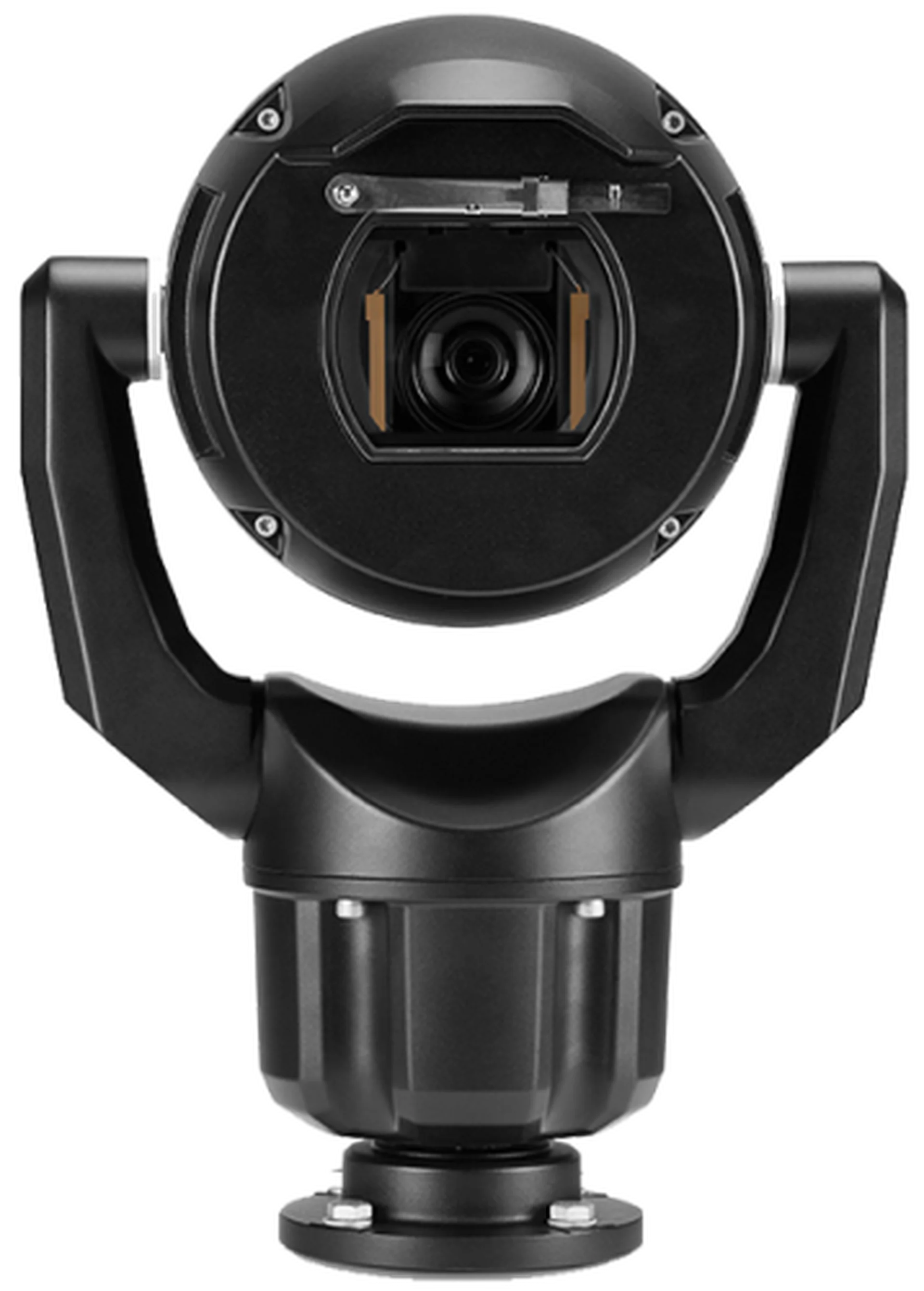

PTZ 8MP 12x IP68 enhanced black
IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.
Commercial Type No: MIC-7504-Z12BR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Uninterrupted tracking across expansive areas
Built-in Intelligent Video Analytics detects and follows critical targets even while the camera is in motion, ensuring operators never lose sight of unfolding events.
Continuous operation in extreme environments
Engineered to exceed conventional mechanical capabilities, the heavy-duty housing withstands severe shock, vibration, and marine-level corrosion to deliver reliable performance anywhere.
Exceptional 4K clarity and stability
Optical image stabilization actively corrects shaky video caused by wind or traffic, providing operators with sharp, detailed 4K resolution for confident forensic analysis.
Reliable visibility in total darkness
An optional multispectral illuminator dynamically adjusts lighting intensity based on the zoom level, ensuring clear, evenly lit scenes without blinding overexposure.
Automatic defroster for clear imaging
An integrated window defroster rapidly melts accumulated ice and prevents condensation, minimizing maintenance needs and maintaining visibility in freezing conditions.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
|---|---|
| Resolution | 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm (12x zoom) |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 8MP 12x IP68 enhanced black
The camera incorporates a built-in, optical image stabilization feature that dynamically corrects shaky video in both the vertical and horizontal axis. If it detects vibration, it prevents pixel loss and outperforms electronic stabilization, resulting in exceptional image clarity and a stable field of view on the monitor.
Yes, it features Intelligent Tracking that controls the pan, tilt, and zoom actions to keep detected objects in view. The newest generation of this feature ensures smoother camera motion for comfortable viewing and reliable tracking, even when the camera itself is moving or on a guard tour.
Absolutely. It features an industry-leading IP68 and Type 6P rating, an anodized aluminum housing with powder coat paint for unequalled corrosion protection, and a built-in window defroster. It is engineered to withstand high-impact, low-frequency vibration and extreme weather without needing pressurization.
The camera requires secure channels for initial setup and a service-level password to access functions. It supports the state-of-the-art TLS 1.2 protocol, AES encryption with 256-bit keys, and 802.1x network authentication. Superior protection from malicious attacks is guaranteed by an Embedded Login Firewall and an on-board Trusted Platform Module (TPM).
The optional illuminator uses multispectral LEDs to distribute infrared light uniformly, avoiding dark spots or over-illuminated scenes. It features patented, integrated Constant Light technology that delivers a consistent level of illumination performance throughout the life of the product, even in fluctuating temperatures.
