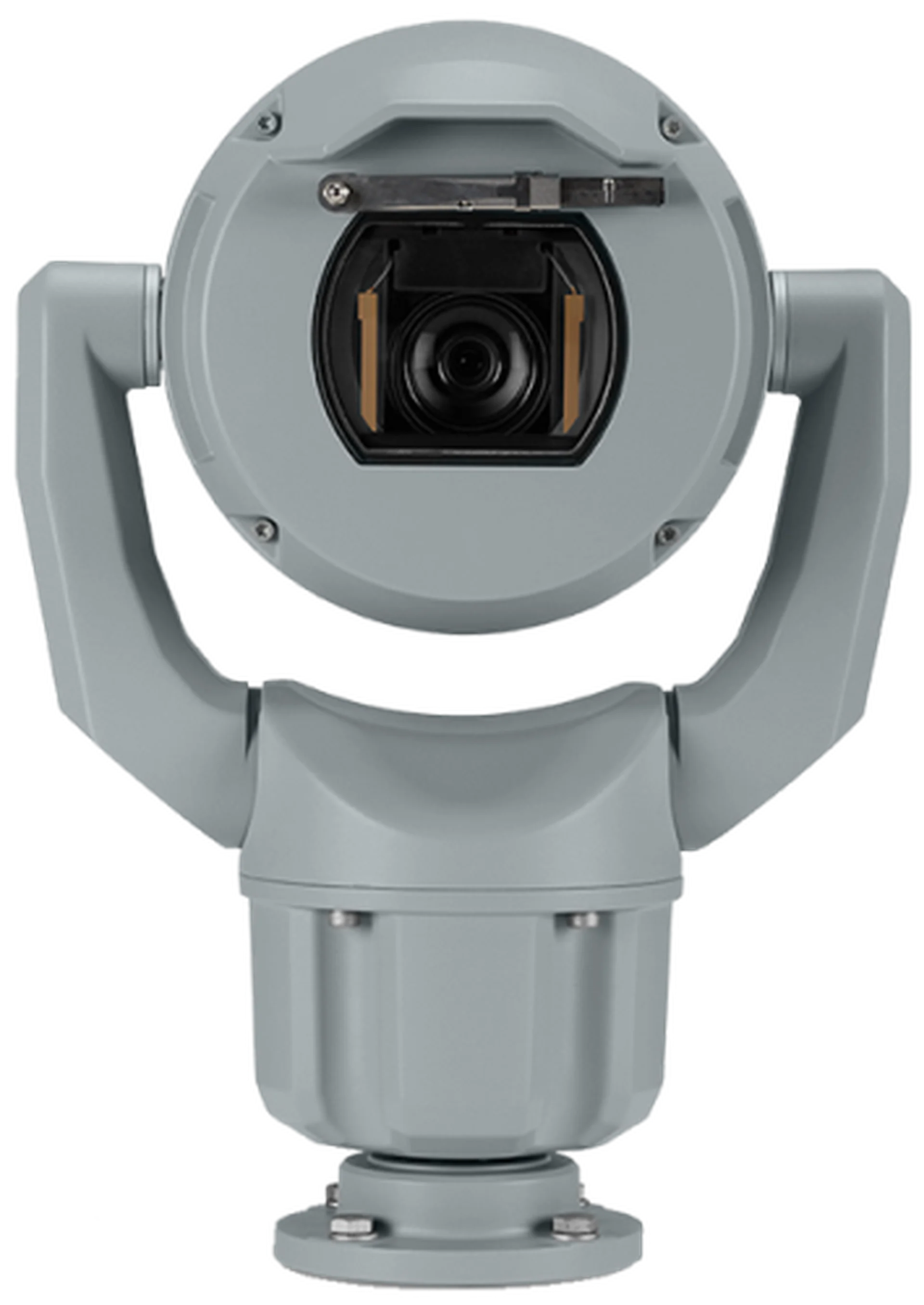

PTZ 8MP 12x IP68 enhanced gray
IQSIGHT's MIC IP ultra 7100i family are ruggedized PTZ cameras offering unmatched imaging and reliability, with 4K visibility @ 30fps, 12x zoom and Optical Image Stabilization (OIS). Built for critical infrastructure and traffic monitoring, it combines exceptional weather resilience with intelligent tracking to help operators maintain continuous situational awareness.
Commercial Type No: MIC-7504-Z12GR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Uninterrupted tracking across expansive areas
Built-in Intelligent Video Analytics detects and follows critical targets even while the camera is in motion, ensuring operators never lose sight of unfolding events.
Continuous operation in extreme environments
Engineered to exceed conventional mechanical capabilities, the heavy-duty housing withstands severe shock, vibration, and marine-level corrosion to deliver reliable performance anywhere.
Exceptional 4K clarity and stability
Optical image stabilization actively corrects shaky video caused by wind or traffic, providing operators with sharp, detailed 4K resolution for confident forensic analysis.
Reliable visibility in total darkness
An optional multispectral illuminator dynamically adjusts lighting intensity based on the zoom level, ensuring clear, evenly lit scenes without blinding overexposure.
Automatic defroster for clear imaging
An integrated window defroster rapidly melts accumulated ice and prevents condensation, minimizing maintenance needs and maintaining visibility in freezing conditions.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
|---|---|
| Resolution | 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm (12x zoom) |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 8MP 12x IP68 enhanced gray
The camera is engineered for extreme outdoor applications that exceed the capabilities of conventional positioning systems. Rated to IP68 and IK10 standards, its anodized metal body withstands high-impact, low-frequency vibration, severe weather, and corrosion, making it ideal for traffic monitoring, critical infrastructure, and city surveillance.
Intelligent Video Analytics operates continuously, even while the PTZ camera is moving manually or on a guard tour. It detects and tracks objects within predefined alarm fields, automatically triggering alerts and utilizing Intelligent Tracking to keep moving targets in view for real-time situational awareness.
The device incorporates built-in optical image stabilization (OIS) and a closed-loop positioning system. If vibration is detected—such as on a bridge or tall pole—the camera dynamically corrects the video in both vertical and horizontal axes, preventing pixel loss and delivering a stable, 4K UHD field of view.
The camera features a Secure by Design architecture with an Embedded Login Firewall and an on-board Trusted Platform Module (TPM). It supports HTTPS, state-of-the-art TLS 1.2 protocols, and 802.1x network authentication to ensure cyber-resilient operation from capture to delivery.
For installations prone to ice or condensation, the camera includes an automatic viewing window defroster. Using a transparent heated coating on the glass, it can melt accumulated ice in minutes, ensuring operators maintain clear visibility and uninterrupted understanding in environments as cold as -40 degrees Celsius.
