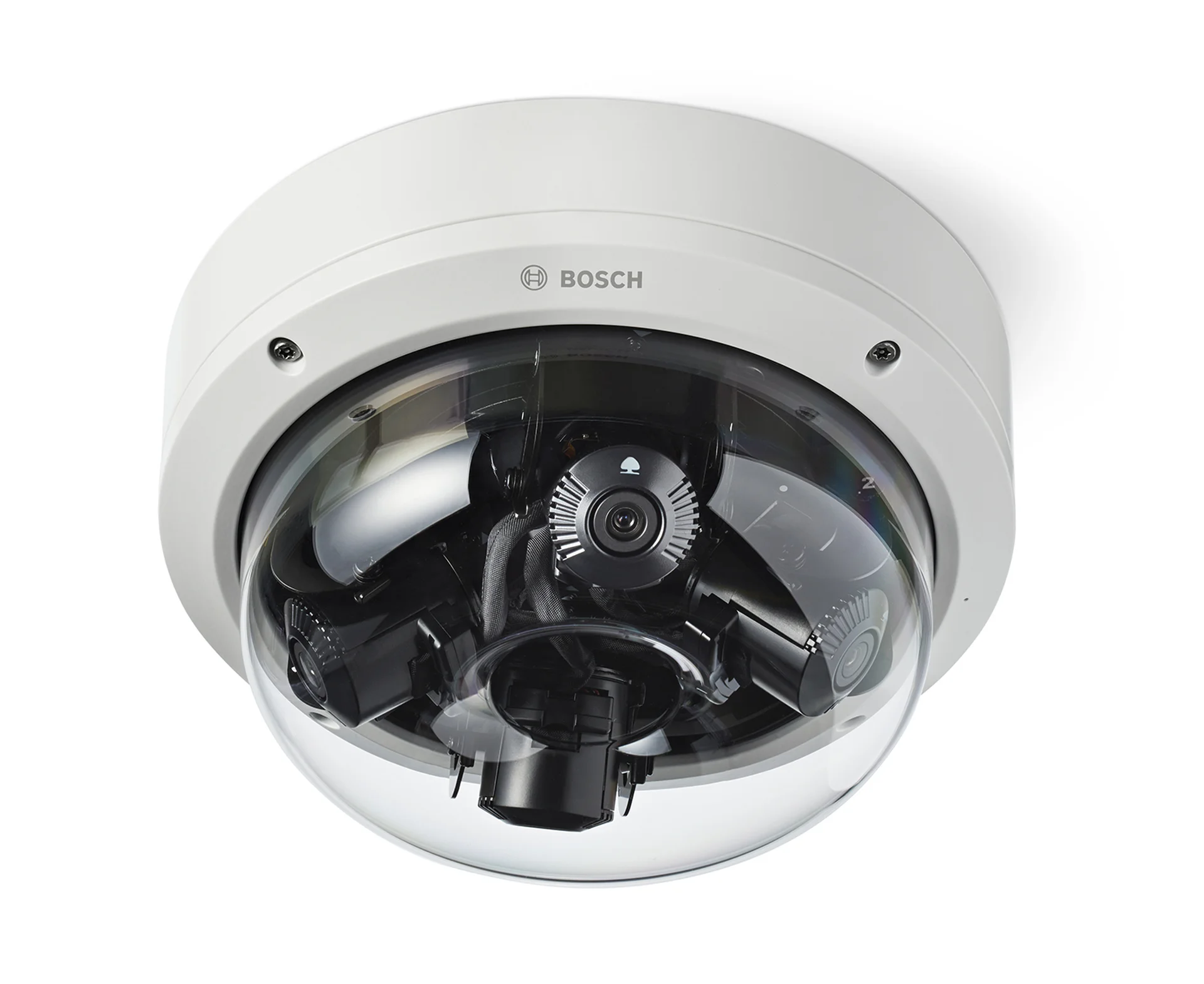

FLEXIDOME multi 7000i
The FLEXIDOME multi 7000i family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, it delivers intelligent detection, real-time alerts, and enhanced situational awareness. Ideal for traffic intersections, building corners, and other demanding surveillance environments.
Four 3 MP or 5 MP imagers at 30 fps in one camera on a single IP address
Easy and flexible remote adjustments. Four motorized zoom and focus lenses for easy adjustment to the viewing angle without physically climbing to the device.
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Product Overview
Comprehensive coverage from a single device
Four 3 MP or 5 MP imagers capture activity at 30 fps on a single IP address, reducing hardware and licensing costs.
Reliable detection in crowded environments
Built-in IVA Pro brings highly reliable, deep learning-based detection of persons and vehicles to scenes ranging from sterile zones to congested areas.
Clear visibility in high-contrast scenes
High Dynamic Range reveals every critical detail in both the bright and dark areas of the scene, ensuring operators never lose sight of what matters.
Easy and flexible remote installation
Four motorized zoom and focus lenses allow teams to easily adjust fields of view and target specific areas without physically climbing to the device.
Secure by design in mission critical environments
Ensure trusted operation in mission-critical environments with hardware-based security, advanced encryption, and end-to-end authentication.
Key Specifications
| Sensor type | 4x 1/2.7 inch CMOS |
|---|---|
| Resolution | 12MP ; 20MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1-30 fps |
| Lens focal length (mm) | 3.7 – 7.7 mm (per sensor) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66 ; NEMA Type 4X |
| Impact protection | IK10 |
| Operating temperature | -50 °C – 55 °C (-40 °F to 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the FLEXIDOME multi 7000i
By combining four independent imagers into a single device, it requires only one cable, one IP address, and one video management software (VMS) license. The four motorized zoom and focus lenses can be configured remotely, significantly reducing setup time and infrastructure complexity.
The camera comes pre-installed with Intelligent Video Analytics Pro (IVA Pro) Buildings and IVA Pro Perimeter. These deep learning-based applications provide highly reliable detection and tracking of persons and vehicles, filtering out false triggers from rain, wind, and shadows without requiring manual calibration.
It features High Dynamic Range (HDR) technology, utilizing a multiple-exposure process to capture clear details in both the brightest highlights and darkest shadows of the same scene. This ensures operators can easily distinguish objects and facial features, even against bright backlighting.
Yes, it is built for extreme conditions with an IP66 rating against rain and dust, and an IK10 impact protection rating to safeguard against vandalism. It maintains reliable operation in ambient temperatures ranging from -50 °C up to +55 °C (-58 °F to 131 °F).
It incorporates a built-in Secure Element and Trusted Platform Module (TPM) functionality to protect cryptographic keys and ensure secure device access. Supporting TLS 1.2/1.3, RSA 4096-bit encryption, and full end-to-end encryption, it provides superior protection against malicious attacks and unauthorized access.
In this family
FLEXIDOME multi 7000i
:quality(75))
Fixed dome 20MP 3.7-7.7mm IP66
The FLEXIDOME multi 7000i family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, it delivers intelligent detection, real-time alerts, and enhanced situational awareness, making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Fixed dome 20MP 3.7-7.7mm IP66
Fixed dome 12MP 3.7-7.7mm IP66
Offering four independent views from a single IP address, the FLEXIDOME multi 7000i family simplifies multidirectional coverage, with built-in IVA Pro analytics and High Dynamic Range for clear, actionable images. These cameras are perfect for wide area coverage, traffic intersections and building corners.
Fixed dome 12MP 3.7-7.7mm IP66
