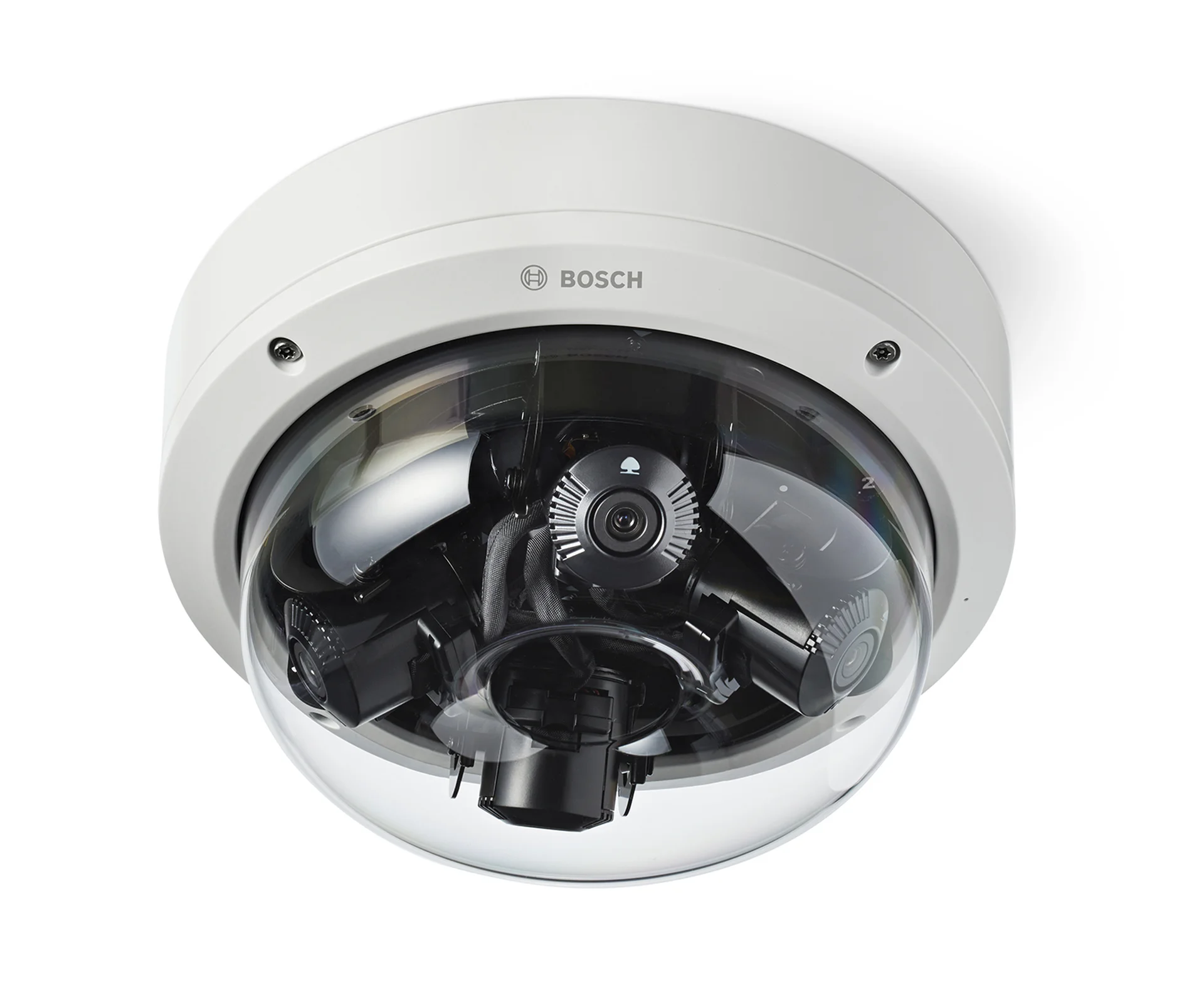

Fixed dome 12MP 3.7-7.7mm IP66
Offering four independent views from a single IP address, the FLEXIDOME multi 7000i family simplifies multidirectional coverage, with built-in IVA Pro analytics and High Dynamic Range for clear, actionable images. These cameras are perfect for wide area coverage, traffic intersections and building corners.
Commercial Type No: NDM-7702-A
Four 3 MP imagers at 30 fps in one camera on a single IP address
Easy and flexible installation with four motorized zoom/focus lenses
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Product Overview
Comprehensive coverage from a single device
Four 3 MP or 5 MP imagers capture activity at 30 fps on a single IP address, reducing hardware and licensing costs.
Reliable detection in crowded environments
Built-in IVA Pro brings highly reliable, deep learning-based detection of persons and vehicles to scenes ranging from sterile zones to congested areas.
Clear visibility in high-contrast scenes
High Dynamic Range reveals every critical detail in both the bright and dark areas of the scene, ensuring operators never lose sight of what matters.
Easy and flexible remote installation
Four motorized zoom and focus lenses allow teams to easily adjust fields of view and target specific areas without physically climbing to the device.
Secure operation in harsh conditions
Engineered with an IP66 and IK10-rated housing alongside built-in hardware encryption, it ensures continuous, cyber-resilient performance outdoors.
Key Specifications
| Resolution | 12 MP |
| WDR technology | HDR |
| Frame rate (fps) | 1-30 fps |
| Lens focal length (mm) | 1310 mm |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66 and NEMA Type 4X |
| Impact protection | IK10 |
| Operating temperature | -50 °C – 55 °C (-40 °F to 158 °F) |
| Analytics (built-in) | Intelligent Video Analytics Pro: IVA Pro Buildings; Intelligent Video Analytics Pro: IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Fixed dome 12MP 3.7-7.7mm IP66
The camera features four independent 3-megapixel imagers with separate remote zoom and focus lenses, capturing detailed images from every angle. Operating on a single IP address, these imagers can be flexibly positioned along a circular track to provide up to 360-degree coverage. This enables comprehensive situational awareness for traffic intersections and building corners without the need to install multiple separate devices.
The FLEXIDOME multi 7000i comes pre-installed with IVA Pro Buildings and IVA Pro Perimeter. These intelligent video analytics deliver highly reliable, deep learning based detection and tracking of persons and vehicles. The system is extremely resistant to false triggers caused by rain, wind, and moving trees, ensuring operators receive accurate, actionable alerts in both sterile zones and crowded environments.
Equipped with High Dynamic Range (HDR) technology, the camera utilizes a multiple-exposure process to capture details in both the highlights and shadows of the same scene. This ensures that operators can easily distinguish objects and features, such as faces against bright backlight, enabling confident action in high-contrast environments.
Installing the FLEXIDOME multi 7000i requires only one cable, one IP address, and a single video management system license to operate all four imagers. Power is supplied via Power-over-Ethernet (PoE), eliminating the need for a local power source. Additionally, the four motorized zoom and focus lenses can be easily configured, reducing installation time and lowering overall operational costs.
The camera features an integrated microphone and supports two-way audio, allowing operators to communicate with individuals via an external audio line. Audio detection can be configured to generate alarms based on specific sounds, providing an early risk signal that helps teams act proactively before an incident escalates. If required by local privacy laws, the microphone can be easily disabled.
