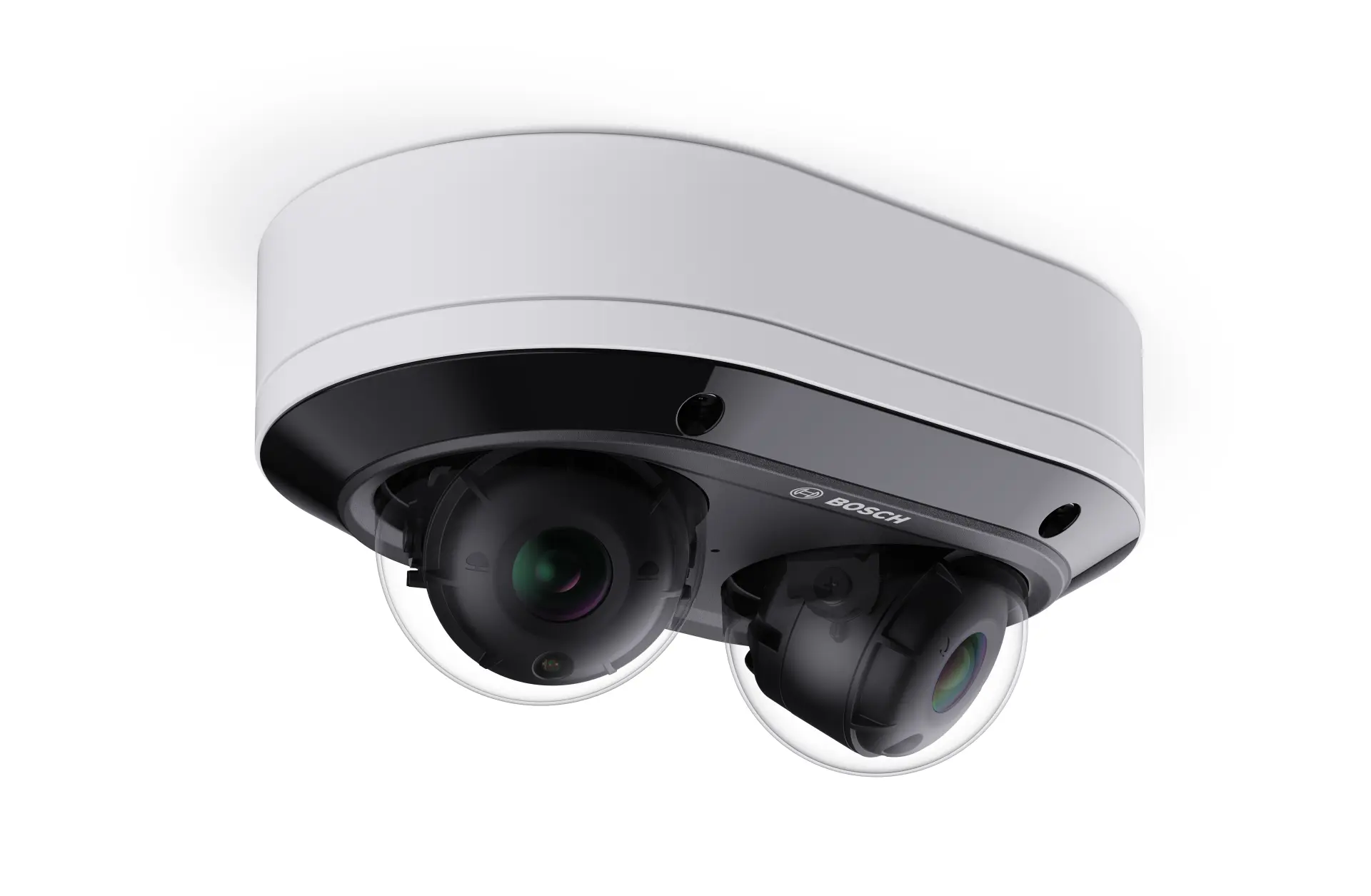

FLEXIDOME dual 7100i IR

FLEXIDOME dual 7100i IR

The FLEXIDOME dual 7100i IR family of cameras combine two imagers in a single compact housing for expanded situational awareness in corridors, stairwells, and corners. Advanced low-light visibility and built-in IVA Pro analytics deliver real-time understanding while a single IP address for both imagers reduces installation complexity.

  • Two imagers with up to 5MP at 30 fps in one camera on a single IP address

  • Orientation-based split IR, based on the camera installation with dedicated LEDs that are powered on for best experience

  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones

  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts

  • Built-in microphone and alarm/audio I/O enable sound-triggered alerts and two-way communication for smarter response

Product Overview

Expanded coverage from a single device

Two independent imagers deliver up to 5MP resolution at 30 fps on a single IP address, reducing hardware and installation costs.

Reliable detection with built-in analytics

Pre-installed IVA Pro delivers highly accurate person and vehicle tracking, filtering out environmental noise to ensure you only receive relevant alerts.

Clear visibility in challenging lighting

HDR X technology reveals critical details in both bright and dark areas without creating motion blur or imaging artifacts.

Optimized illumination for any installation

Orientation-based split IR automatically activates dedicated LEDs based on wall or ceiling mounting to ensure clear visibility in complete darkness.

Smarter response with integrated audio

A built-in microphone and two-way audio support enable sound-triggered alerts and direct communication to address situations as they unfold.

Key Specifications

Key specifications
Sensor type1/2.8 inch CMOS
Resolution2MP (per sensor) ; 5MP (per sensor)
Low light technologystarlight
WDR technologyHDR X
Frame rate (fps)1 fps – 30 fps
Lens focal length (mm)3.2 mm – 8.1 mm
Horizontal field of view (°)104° – 37°
Video compressionH.264 / AVC ; H.265 / HEVC ; M-JPEG
IP ratingIP66; IP67
Impact protectionIK10
Operating temperature-40 °C – 60 °C (-40 °F – 140 °F)
IR illumination range30 m (98 ft)
Analytics (built-in)IVA Pro Buildings ; IVA Pro Perimeter
Analytics (available)IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro PPE ; IVA Pro Visual Gun Detection ; Future release: IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; IVA Pro License Plate + Make Model : Intelligent Audio Analytics : Gunshot detection

Frequently Asked Questions

Common questions about the FLEXIDOME dual 7100i IR

The FLEXIDOME dual 7100i IR features two independently operating zoom lenses on a single IP address. This design allows for flexible configurations, such as a 180-degree overview or a combination of telephoto and wide-angle views, effectively reducing the number of cameras needed to monitor areas like corridors and stairwells.

Built with HDR X technology, the camera captures high-quality video in scenes with a large dynamic range without the motion blur or artifacts common in traditional HDR methods. It optimizes exposures to reveal crisp details in both the bright highlights and dark shadows of a scene.

Yes, the camera uses orientation-based split IR with four distinct illumination zones. Depending on whether the device is mounted on a wall or a ceiling, it automatically activates the corresponding dedicated LEDs to ensure optimal, evenly distributed infrared illumination without compromising image clarity.

The camera comes pre-installed with IVA Pro Buildings and IVA Pro Perimeter, delivering highly reliable, deep learning-based detection of persons and vehicles. It accurately tracks activity across sterile zones and crowded areas while filtering out false triggers from rain, wind, or shadows to provide actionable, real-time insights.

Security is built into the camera from the production stage. It features an EAL6+ certified Secure Element and is certified to FIPS 140-3 Level 3 standards, ensuring robust enterprise-grade cybersecurity, encrypted communications, and secure edge recording to protect data integrity.
