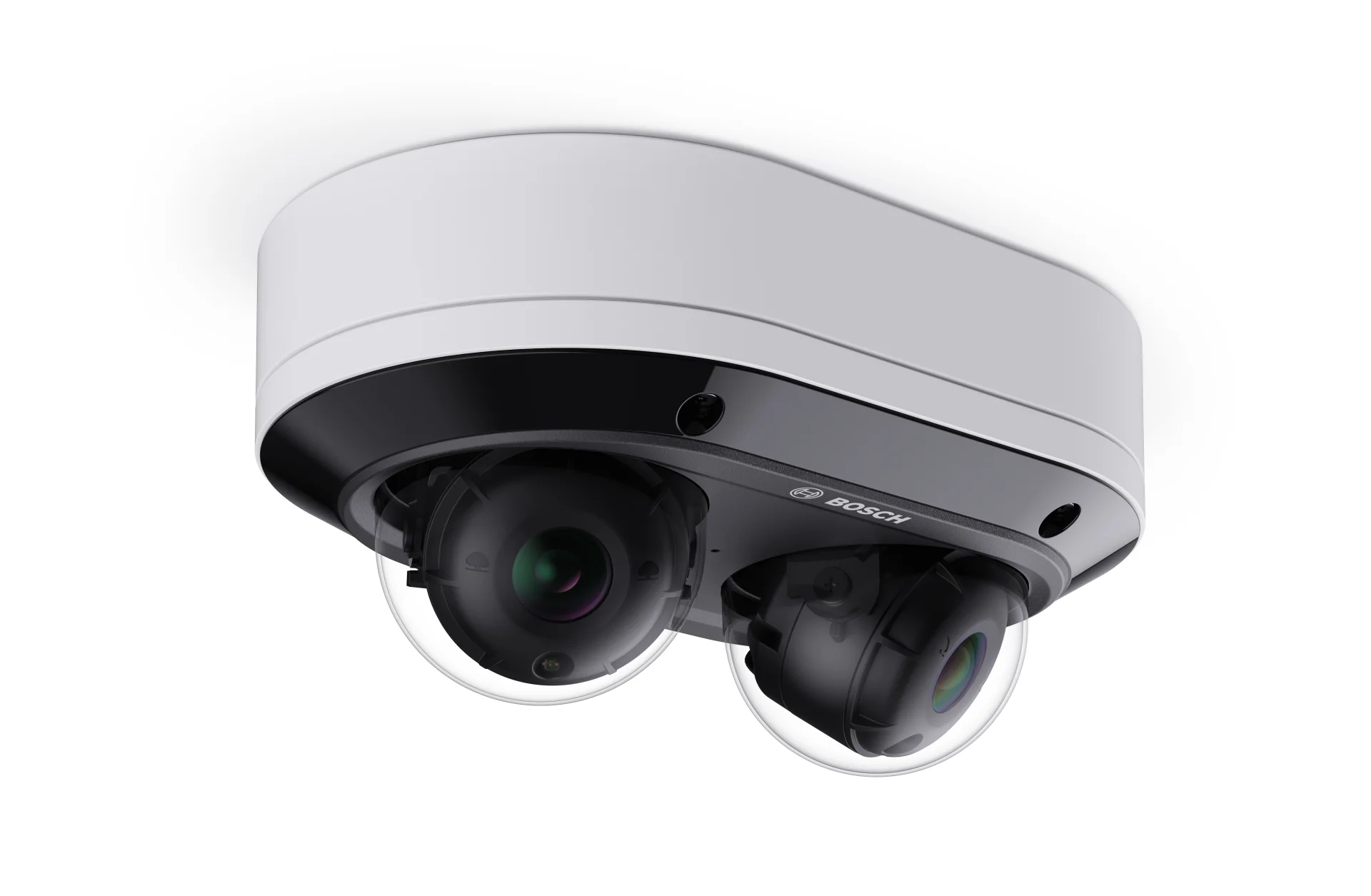

Dual dome 2x3MP 3.2-8.1mm IP67 IR
The FLEXIDOME dual 7100i IR family of cameras combine two imagers in a single compact housing for expanded situational awareness in corridors, stairwells, and corners. Advanced low-light visibility and built-in IVA Pro analytics deliver real-time understanding while a single IP address for both imagers reduces installation complexity.
Commercial Type No: NDD-7802-AL
Two 3MP imagers at 30 fps in one camera on a single IP address
Orientation-based split IR, based on the camera installation with dedicated LEDs that are powered on for best experience
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
Built-in microphone and alarm/audio I/O enable sound-triggered alerts and two-way communication for smarter response
Product Overview
Expanded coverage from a single device
Two independent imagers deliver up to 5MP resolution at 30 fps on a single IP address, reducing hardware and installation costs.
Reliable detection with built-in analytics
Pre-installed IVA Pro delivers highly accurate person and vehicle tracking, filtering out environmental noise to ensure you only receive relevant alerts.
Clear visibility in challenging lighting
HDR X technology reveals critical details in both bright and dark areas without creating motion blur or imaging artifacts.
Optimized illumination for any installation
Orientation-based split IR automatically activates dedicated LEDs based on wall or ceiling mounting to ensure clear visibility in complete darkness.
Smarter response with integrated audio
A built-in microphone and two-way audio support enable sound-triggered alerts and direct communication to address situations as they unfold.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 3.10 MP |
| Low light technology | starlight |
| WDR technology | HDR X |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 mm – 8.1 mm |
| Horizontal field of view (°) | 104° – 37° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | 30 m (98 ft) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro PPE ; IVA Pro Visual Gun Detection ; Future release: IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; IVA Pro License Plate + Make Model : Intelligent Audio Analytics : Gunshot detection |
Frequently Asked Questions
Common questions about the Dual dome 2x3MP 3.2-8.1mm IP67 IR
The camera features two independently operating 3MP zoom lenses running at 30 fps on a single IP address. This adaptable design allows for flexible configurations—including dual-directional views, a 180-degree overview, or a combination of telephoto and wide-angle views—reducing the total number of cameras needed to cover complex environments.
The camera is equipped with four distinct infrared zones, each containing dedicated LEDs optimized specifically for wall or ceiling installations. Based on how the camera is mounted, the corresponding LEDs automatically activate to provide precisely directed illumination, ensuring clear, high-quality images in complete darkness without the compromises of a single LED arrangement.
HDR X technology takes two different readouts from a single exposure to capture fine details in both the highlights and shadows of a scene. By avoiding the blending of multiple exposures used in traditional HDR, it provides a crisp image with an improved dynamic range while eliminating motion blur and imaging artefacts.
The camera includes IVA Pro Buildings and IVA Pro Perimeter out of the box. These deep-learning based analytics deliver highly reliable detection and tracking of persons and vehicles across sterile zones and crowded areas. They are resilient against false triggers caused by environmental conditions like rain, snow, shadows, and wind-induced movement.
Security is built into the product lifecycle. The camera includes a built-in Secure Element 3.0 that is certified to FIPS 140-3 Level 3 and Common Criteria EAL6+ standards. From first boot, every layer protects data, ensures secure interactions with third-party systems, and strengthens system integrity from the inside out.
