MIC 7100i - 8MP
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Flexible streaming capabilities powering three independent streams
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter security, city surveillance, and mining
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Capture exceptional 4K detail anywhere
UHD resolution combined with a 12x zoom ensures operators see critical details clearly, even across expansive perimeters or busy city centers.
Reliable operation in extreme conditions
An anodized metal housing and automatic defroster ensure continuous performance despite harsh weather, severe shock, or high-vibration environments. Meets ISO 12944:6 standard C5-M.
Track critical activity with automated precision
Built-in Intelligent Video Analytics automatically detects and tracks moving objects, giving operators real-time context to respond to incidents earlier.
Reveal vital details in total darkness
An optional multispectral LED illuminator dynamically adjusts to the zoom level, providing uniform visibility without dark spots or overexposure.
Optimize bandwidth without sacrificing quality
Flexible streaming capabilities power three independent streams using highly efficient H.265 compression, reducing network load while maintaining superior video quality.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
| Resolution | 8MP |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F – 149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the MIC 7100i - 8MP
Designed for surveillance applications beyond the capabilities of conventional positioning systems, the camera features a ruggedized, anodized aluminum body rated to IP68, Type 6P, and IK10 standards. The enhanced models also includes an automatic window defroster that melts accumulated ice, ensuring continuous visibility in extreme cold, while resisting high-impact, low-frequency vibrations.
The camera includes edge-based Intelligent Video Analytics designed for mission-critical applications. It can reliably detect, track, and analyze moving objects while suppressing unwanted alarms from spurious sources like moving trees or harsh weather. This allows operators to focus on real-time understanding and act confidently when an actual event occurs.
Yes, an optional field-installable illuminator features multispectral LEDs that distribute infrared light uniformly across the field of view. The system steers the IR beam dynamically to match the illumination intensity with the camera’s zoom level, avoiding dark spots or an over-illuminated scene, and ensuring operators capture critical details at night.
The camera is built with a Secure by Design approach, featuring a dedicated Secure Element crypto co-processor independently certified to high assurance levels. It supports secure and verified boot, hardware-based encryption, and advanced certificate handling, ensuring that all video data remains secure from capture to delivery.
In this family
MIC 7100i - 8MP
:quality(75))

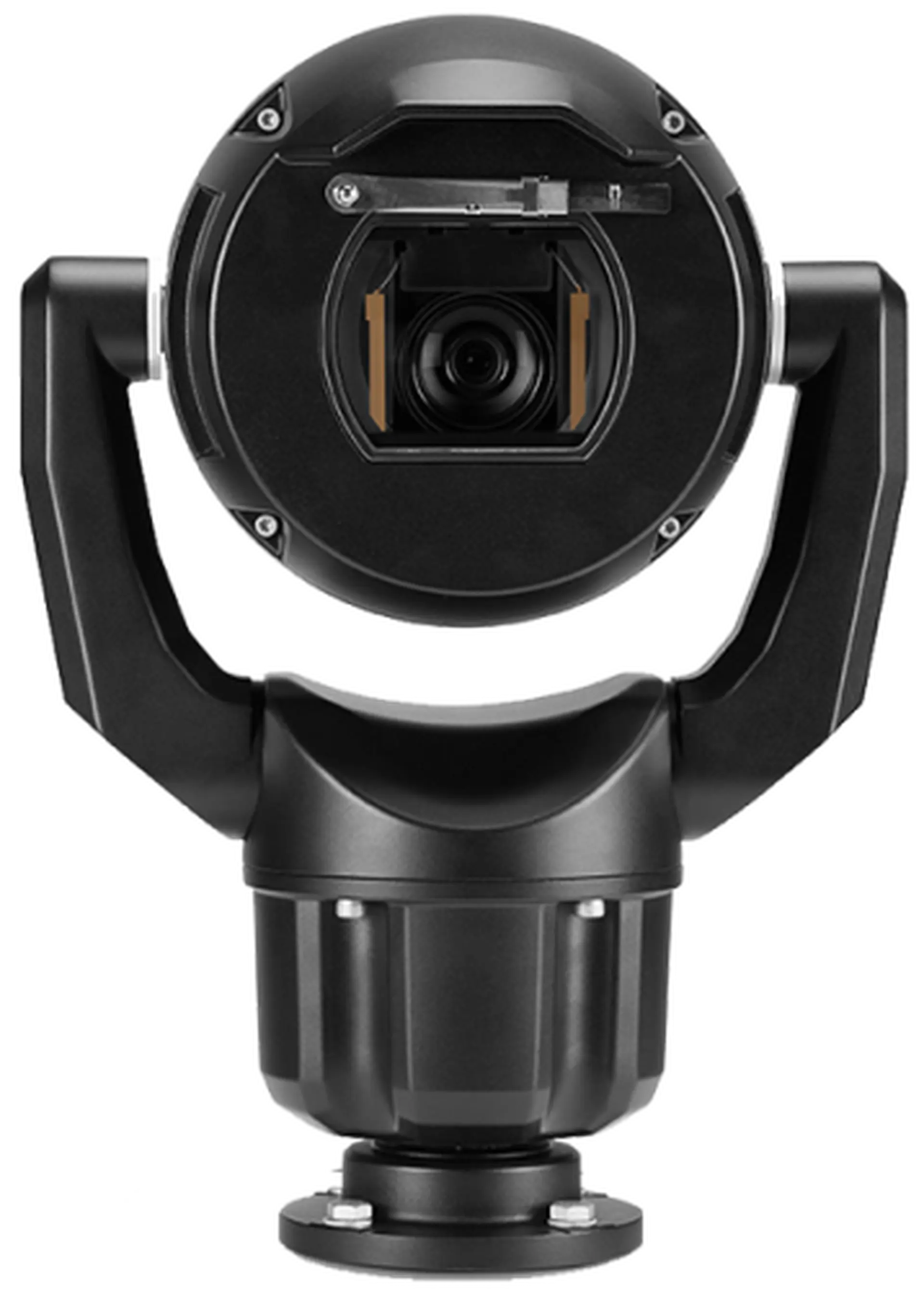

PTZ 8MP 12x enhanced black
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
PTZ 8MP 12x enhanced black
:quality(75))

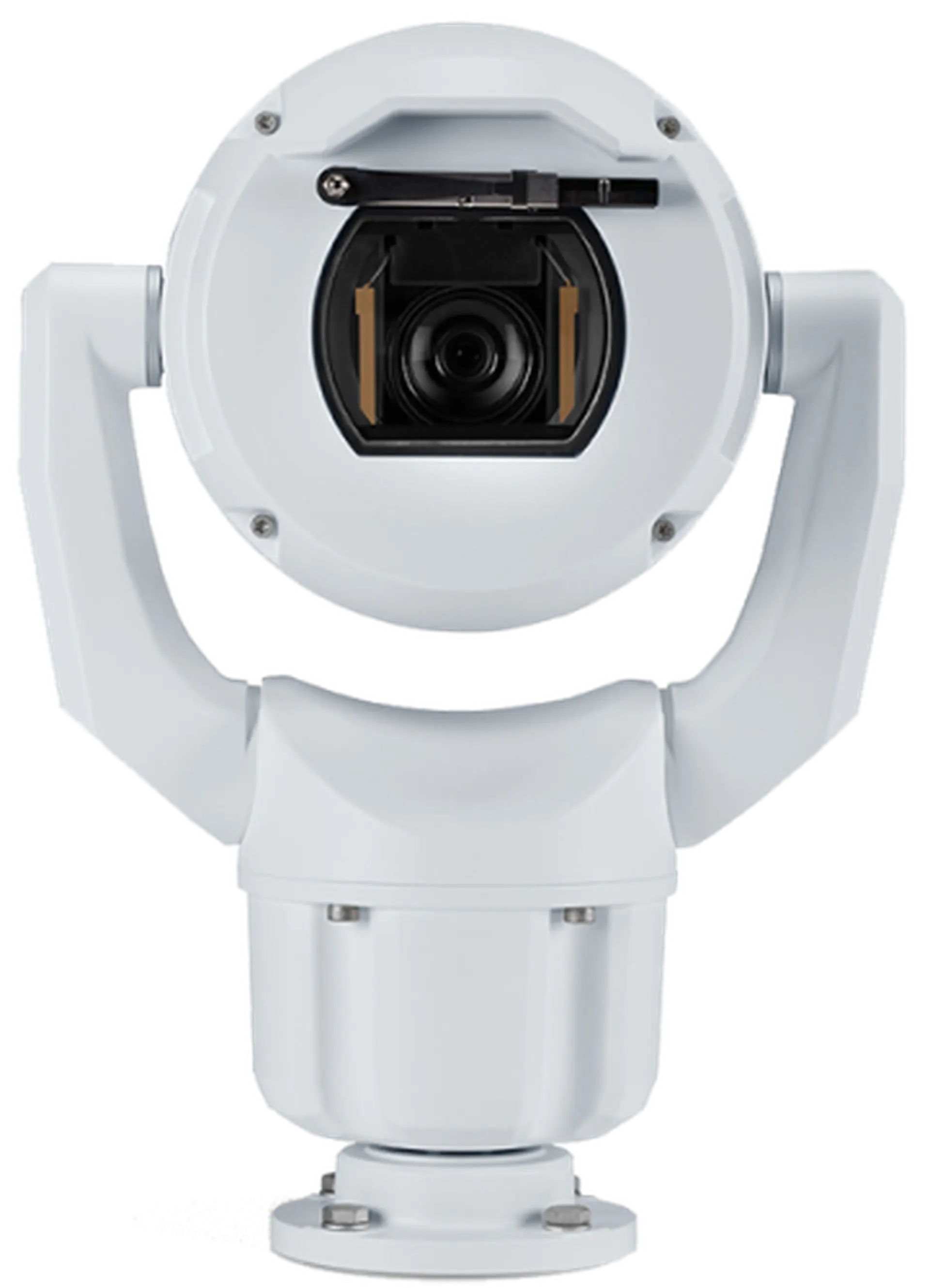

PTZ 8MP 12x enhanced white
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
PTZ 8MP 12x enhanced white
:quality(75))

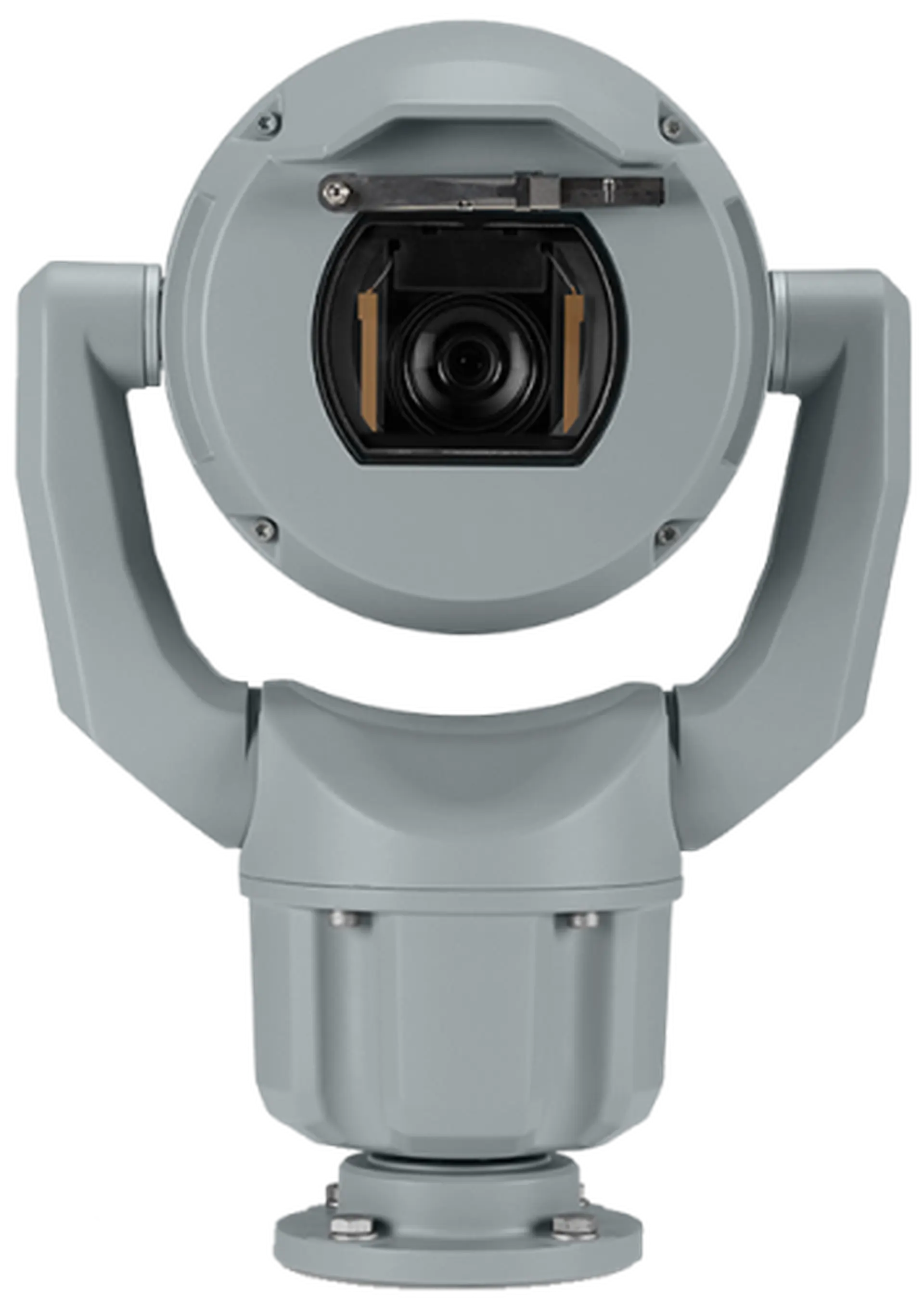

PTZ 8MP 12x enhanced gray
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
PTZ 8MP 12x enhanced gray
