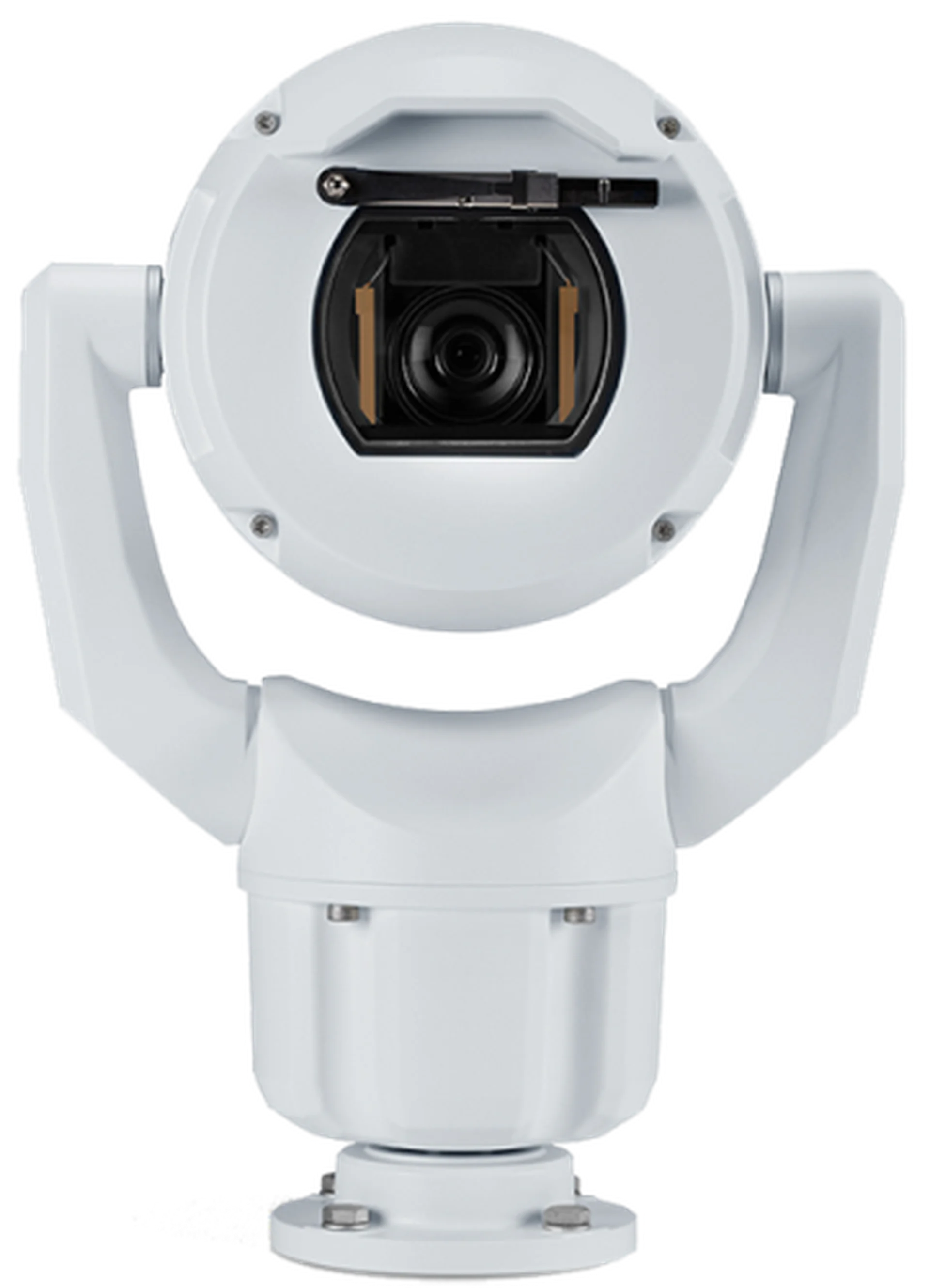

PTZ 8MP 12x enhanced white
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
Commercial Type No: MIC-7604-Z12WR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Capture exceptional 4K detail anywhere
UHD resolution combined with a 12x zoom ensures operators see critical details clearly, even across expansive perimeters or busy city centers.
Reliable operation in extreme conditions
An anodized metal housing and automatic defroster ensure continuous performance despite harsh weather, severe shock, or high-vibration environments. Meets ISO 12944:6 standard C5-M.
Track critical activity with automated precision
Built-in Intelligent Video Analytics automatically detects and tracks moving objects, giving operators real-time context to respond to incidents earlier.
Reveal vital details in total darkness
An optional multispectral LED illuminator dynamically adjusts to the zoom level, providing uniform visibility without dark spots or overexposure.
Optimize bandwidth without sacrificing quality
Flexible streaming capabilities power three independent streams using highly efficient H.265 compression, reducing network load while maintaining superior video quality.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
|---|---|
| Resolution | 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm (12x zoom) |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 8MP 12x enhanced white
The camera features UHD 4K resolution at 30 frames per second combined with a 12x zoom and built-in Optical Image Stabilization (OIS). If it detects vibration, the camera dynamically corrects shaky video in both the vertical and horizontal axis, resulting in exceptional image clarity and a stable field of view. It also includes an automatic defrosting function to prevent ice and condensation on the viewing window.
Yes, the MIC 7100i - 8MP features Intelligent Tracking and edge analytics that operate even when the camera is moving. Outside of pre-positions and during manual or guard tours, the Intelligent Video Analytics application can detect and trigger alarms when objects enter defined fields, automatically controlling pan, tilt, and zoom actions to track objects and keep them in view.
Designed for mission-critical applications, the camera features an anodized, all-metal intermeshing gear design that withstands high-impact, low-frequency vibration. It is rated to an industry-leading IP68, Type 6P, and IK10, making it perfectly suited for the most unforgiving environments, including traffic monitoring on bridges, city surveillance, and mining operations.
The camera supports an optional field-installable illuminator with multispectral LEDs that distribute IR light uniformly to avoid dark spots or an over-illuminated scene. It dynamically steers the IR beam to match the illumination intensity with the camera's field of view according to the zoom level, supplying a consistent level of illumination even in changing temperatures.
The camera provides the highest level of data security with a built-in Secure Element that is independently certified with Assurance Level (EAL) 6+. It features a three-level password protection system, an Embedded Login Firewall to improve robustness against Denial of Service (DoS) attacks, and secure firmware updates using only signed firmware files.
