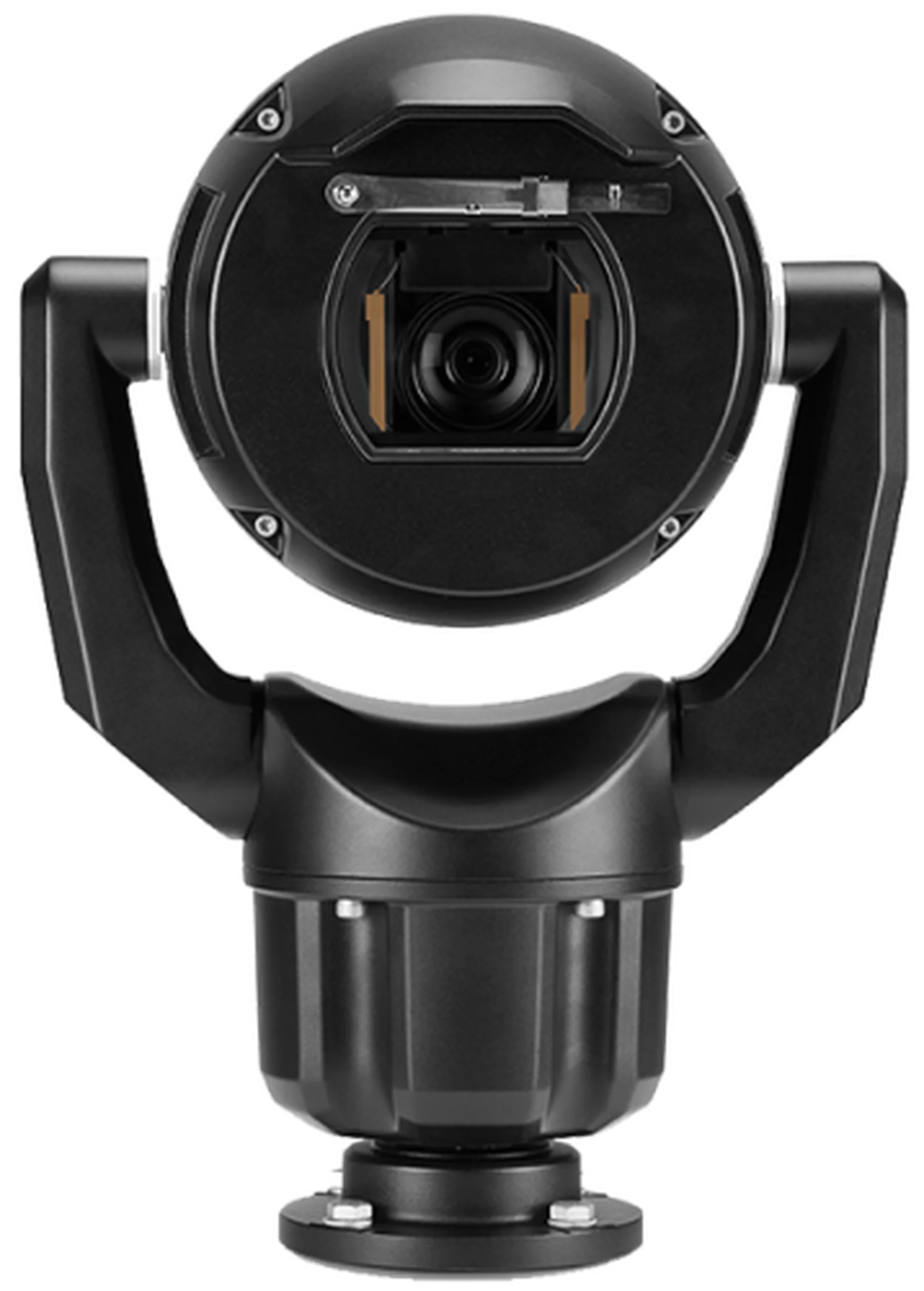

PTZ 8MP 12x enhanced black
The MIC 7100i - 8MP is a family of ruggedized PTZ cameras with 4K UHD imaging in extreme environments. Ideal for traffic monitoring and perimeter security, it combines robust weather resistance with optical stabilization to deliver clear images under demanding conditions.
Commercial Type No: MIC-7604-Z12BR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
Exceptional strength and ruggedness for any outdoor application including traffic monitoring (bridges, tunnels, or highways), perimeter protection, city surveillance, and mining
Built-in Camera Trainer to train the camera to recognize user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field to avoid dark spots or an over-illuminated scene
Product Overview
Capture exceptional 4K detail anywhere
UHD resolution combined with a 12x zoom ensures operators see critical details clearly, even across expansive perimeters or busy city centers.
Reliable operation in extreme conditions
An anodized metal housing and automatic defroster ensure continuous performance despite harsh weather, severe shock, or high-vibration environments. Meets ISO 12944:6 standard C5-M.
Track critical activity with automated precision
Built-in Intelligent Video Analytics automatically detects and tracks moving objects, giving operators real-time context to respond to incidents earlier.
Reveal vital details in total darkness
An optional multispectral LED illuminator dynamically adjusts to the zoom level, providing uniform visibility without dark spots or overexposure.
Optimize bandwidth without sacrificing quality
Flexible streaming capabilities power three independent streams using highly efficient H.265 compression, reducing network load while maintaining superior video quality.
Key Specifications
| Sensor type | 1 inch Exmor R CMOS |
| Resolution | 8MP |
| Low light technology | starlight |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 9.3 – 111.6 mm (12x zoom) |
| Lens zoom (x) | 12x |
| Horizontal field of view (°) | 6.1° – 64.6° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 8MP 12x enhanced black
The camera is engineered for surveillance applications beyond the mechanical capabilities of conventional positioning systems. Its anodized aluminum housing is rated to industry-leading IP68, Type 6P, and IK10 standards, providing exceptional corrosion and impact protection. A closed-loop positioning system and all-metal intermeshing gears allow the camera to maintain precise positioning and deliver stable 4K video during continuous low-frequency vibration, extreme shock events, or harsh weather conditions.
Yes. The built-in Intelligent Video Analytics application is designed to detect and trigger alarms even while the PTZ camera is moving manually or executing a guard tour. Additionally, Intelligent Tracking automatically controls the pan, tilt, and zoom actions to smoothly follow moving objects or individuals, ensuring critical activity remains in clear view even in challenging scenes.
The MIC 7100i - 8MP combines 4K UHD resolution with optical image stabilization (OIS) to prevent pixel loss and dynamically correct shaky video. For low-light performance, an optional field-installable illuminator features multispectral LEDs that dynamically steer the IR beam to match the zoom level, distributing light uniformly to eliminate dark spots and over-illuminated scenes.
Yes, the camera features an automatic window defroster that utilizes a transparent coating to apply heat directly to the glass. Based on technology used in aircraft windscreens, it can melt 1 cm of accumulated ice in just five minutes in environments as cold as -25 °C (-13 °F), ensuring continuous clarity where conventional cameras experience frosted windows.
The camera is secure by design, featuring an embedded Secure Element with a dedicated crypto co-processor independently certified to Assurance Level (EAL) 6+. It enforces three-level password protection, disables unsecure ports, and utilizes an Embedded Login Firewall to resist Denial of Service (DoS) attacks. Furthermore, firmware updates are strictly limited to digitally signed files, ensuring complete trust in device execution.
