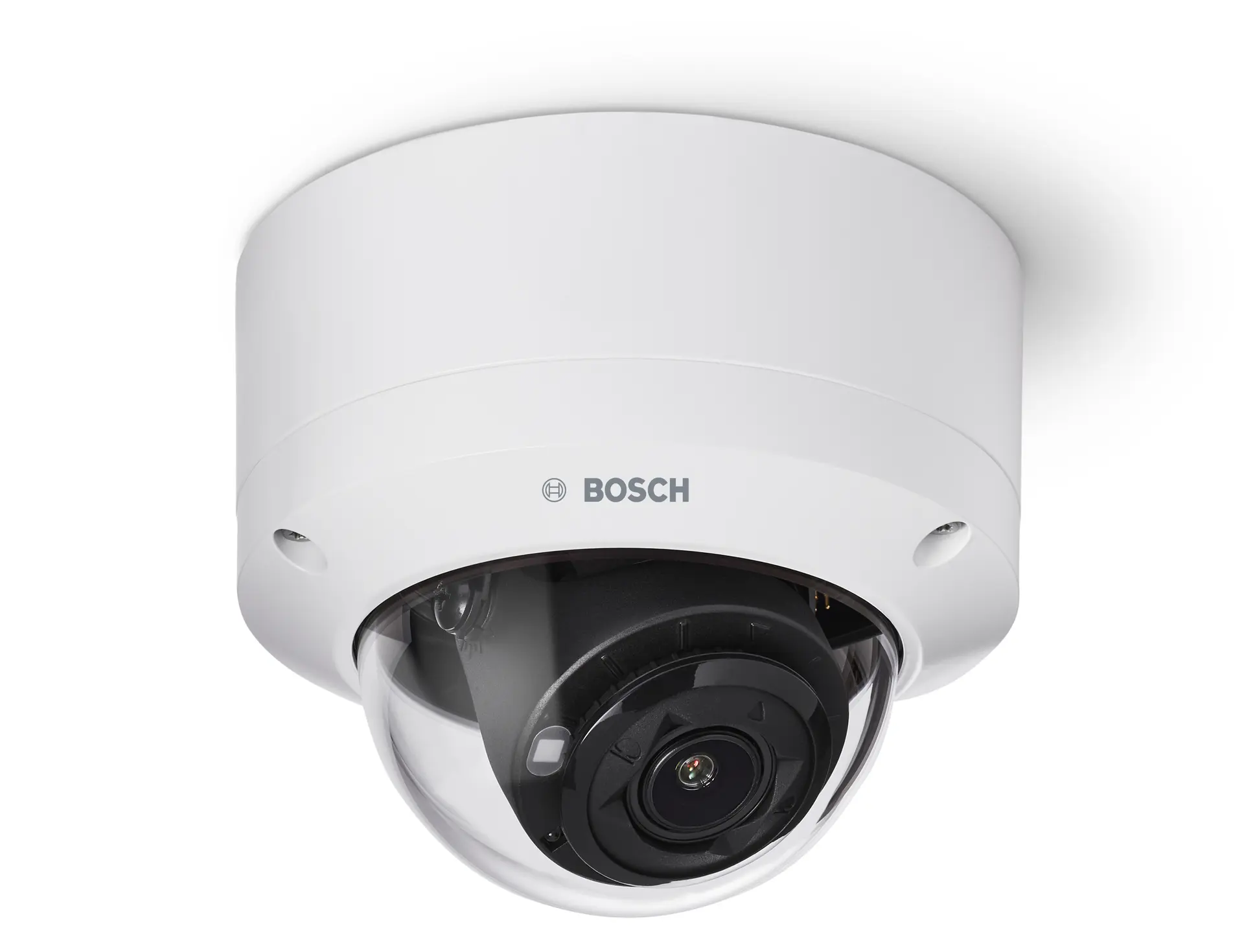

The FLEXIDOME indoor 5100i IR family delivers continuous visibility and real-time understanding in demanding environments. Featuring built-in intelligent infrared illumination and IVA Pro Buildings, this camera ensures clear, reliable detection in extreme low-light conditions.
Up to 4K ultra HD for highly detailed image
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
Filter false triggers with deep-learning detection
Built-in IVA Pro Buildings reliably detects and classifies persons and vehicles, ignoring shadows and reflections to deliver accurate alerts without complex calibration.
Maintain continuous visibility in darkness
The built-in intelligent infrared illuminator adapts to the scene, providing clear, highly detailed imaging up to 45 meters (148 feet) even in near zero-light conditions.
See clear details in high-contrast lighting
High Dynamic Range technology captures distinct details in both bright highlights and the dark shadows of the same scene.
Simplify deployment with modular installation
A click-and-rotate mechanism and Automatic Varifocal lens allow teams to securely mount, zoom, and focus the device without opening the housing.
Secure video data from capture to delivery
A built-in Secure Element and advanced encryption standards safeguard device access and ensure long-term cyber resilience against malicious attacks.
| Sensor type | 1/2.8 inch CMOS ; 1/2.7 inch CMOS |
| Resolution | 2MP ; 5MP ; 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 60 fps ; 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 – 10.5 mm |
| Horizontal field of view (°) | 105° – 31° (2MP, 8MP) ; 96º - 29º (5MP) |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP54 |
| Impact protection | IK10 |
| Operating temperature | -20 °C – 50 °C (-4 °F – 122 °F) |
| IR illumination range | 40 m (132ft) (8MP) ; 45 m (148 ft) (2MP, 5MP) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the FLEXIDOME indoor 5100i IR
The camera comes with IVA Pro Buildings pre-installed, bringing highly reliable deep-learning based detection of persons and vehicles. It is extremely resistant to false triggers caused by challenging environments, such as shadows and reflections, ensuring operators receive accurate alerts without the need for manual calibration.
Yes, it features a built-in intelligent IR illuminator that provides high performance in extreme low-light environments. The adaptive infrared range covers a viewing distance of up to 45 meters (148 feet), optimizing the scene to avoid over-exposure of objects that are close to the device.
The modular structure design uses a click-and-rotate mechanism that requires no hardware to secure the camera to the housing. Combined with Power-over-Ethernet (PoE) and the Automatic Varifocal (AVF) feature, installers can easily adjust the zoom position and accurately focus the camera without opening it.
Yes, it includes two-way audio and an integrated digital MEMS microphone to capture crisp, clear audio. Operators can communicate with visitors or intruders, and audio detection can be used to generate alarms, allowing security personnel to act earlier.
Special measures ensure the highest level of data security, including a built-in Secure Element (SE) providing Trusted Platform Module (TPM) functionality. It supports authenticated secure uploads, HTTPS protection, and is aligned to global standards like IEC 62443-4-1 to guarantee superior protection from malicious attacks.
