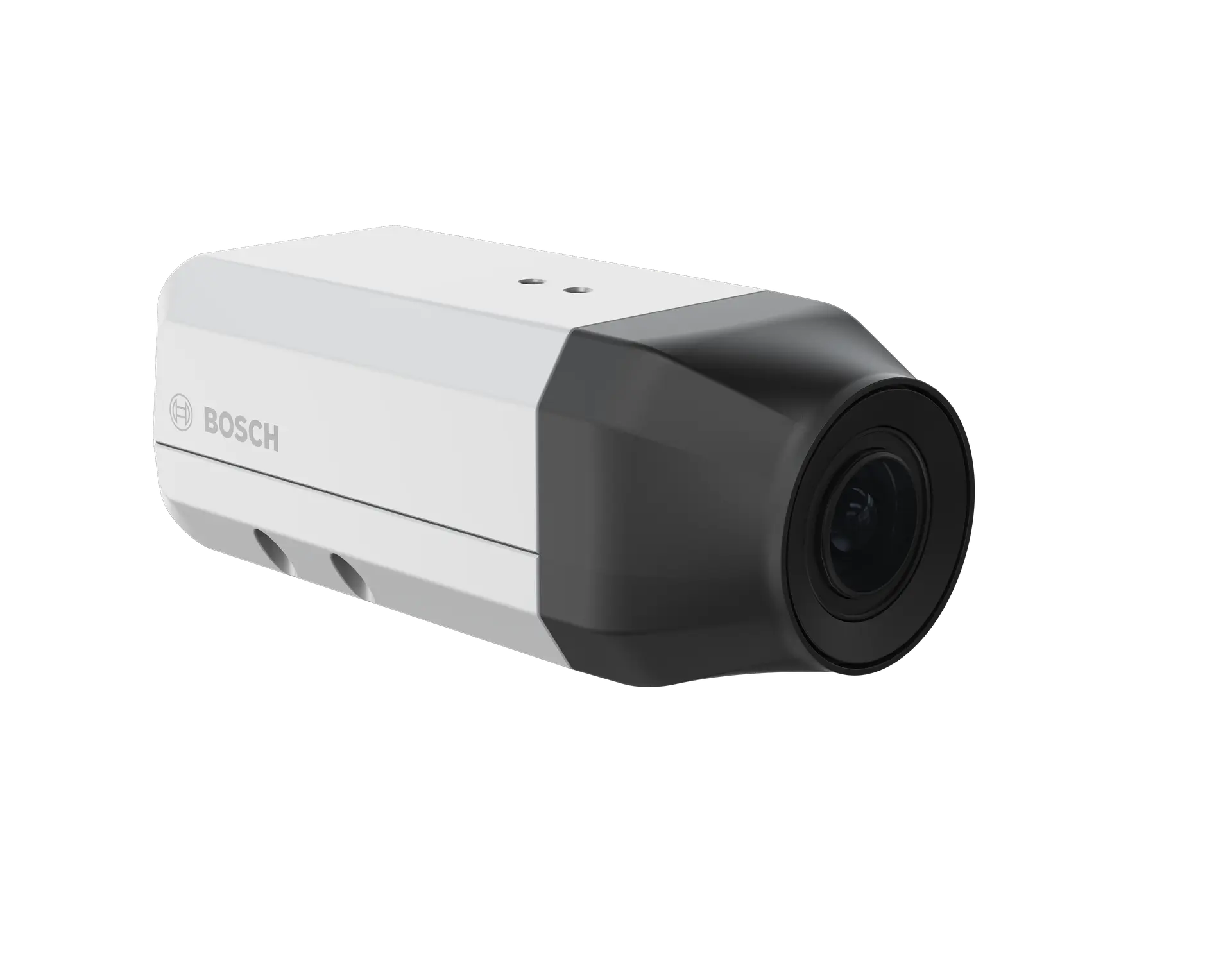

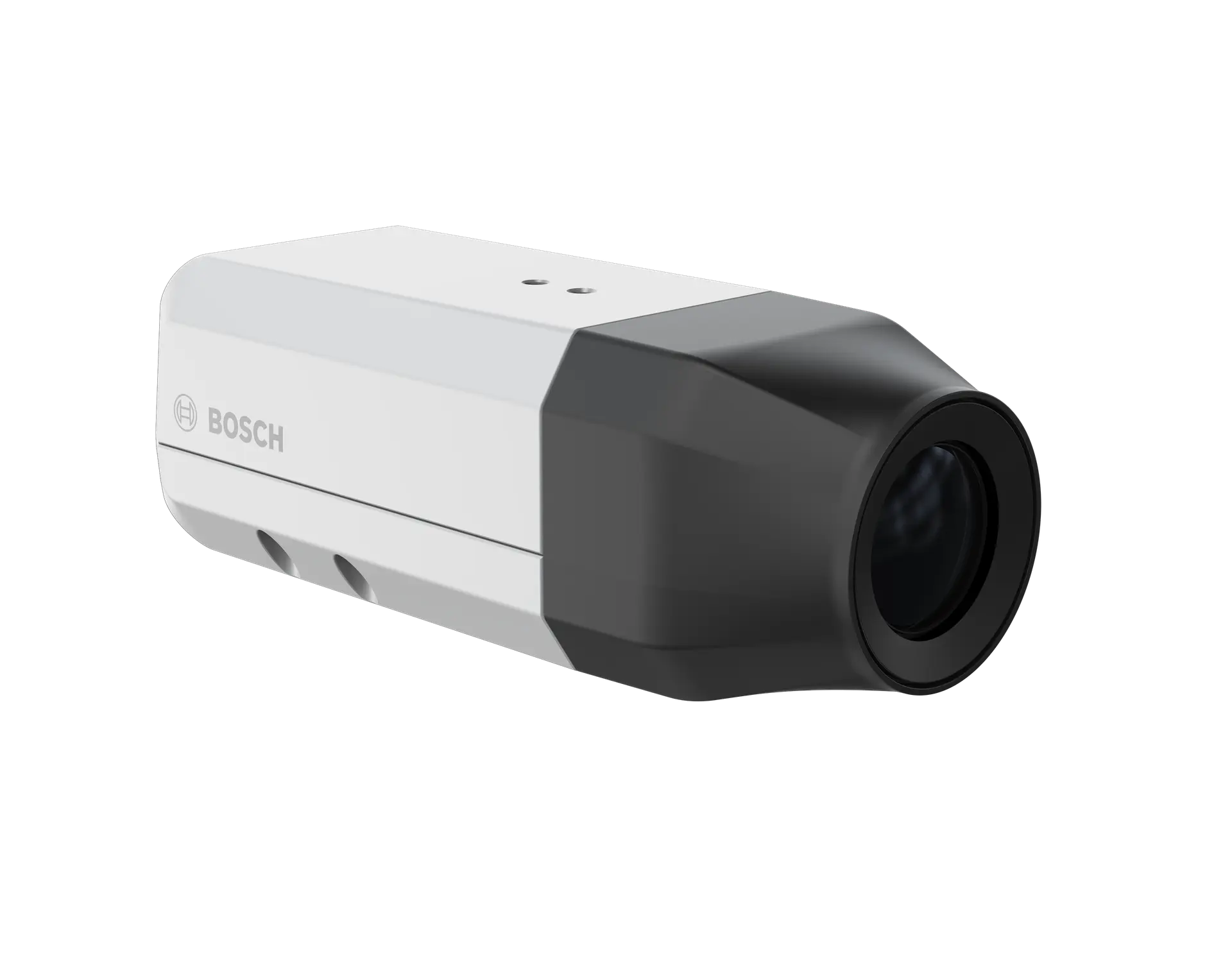

DINION 7100s

The DINION 7100s family delivers specialized imaging and advanced awareness for mission-critical environments. Combining starlight X and HDR X technology with built-in IVA Pro analytics, these cameras provides reliable detection and real-time understanding for city surveillance, traffic monitoring, and critical infrastructure.

Starlight X technology with 1/1.8” at up to 4 MP sensor
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Easy and flexible installation

Product Overview

Reliable detection in both sterile and crowded environments

Built-in IVA Pro delivers deep-learning object tracking that filters out environmental noise for accurate real-time understanding.

Exceptional clarity in extreme low light

Starlight X technology utilizes a large 1/1.8-inch sensor to capture sharp, detailed forensic insight in near darkness.

Artefact-free imaging for moving objects

HDR X resolves details in high-contrast scenes without blending exposures, eliminating motion blur on critical targets.

Stable video in high-vibration locations

Electronic image stabilization actively offsets mounting movement to maintain smooth, continuous visibility across challenging infrastructure sites.

Reduced bandwidth and storage requirements

Intelligent streaming adapts encoding based on analytic triggers, lowering bitrates significantly while preserving high-quality video for relevant events.

Key Specifications

Key specifications
Sensor type	1/1.8 inch CMOS
Resolution	2MP ; 4MP
Low light technology	starlight X
WDR technology	HDR X
Frame rate (fps)	1 fps – 60 fps
Lens focal length (mm)	4.4 mm – 10 mm
Horizontal field of view (°)	103° – 49°
Field of view adjustment	Fixed lens
Video compression	H.264 / AVC ; H.265 / HEVC ; M-JPEG
IP rating	IP5X
Operating temperature	-20 °C – 55 °C (-4 °F – 131 °F)
Analytics (built-in)	IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy
Analytics (available)	IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Visual Gun Detection ; IVA Pro Personal Protective Equipment

Frequently Asked Questions

Common questions about the DINION 7100s

The camera comes pre-installed with IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy. These deep learning-based analytics deliver highly reliable detection and tracking of persons and vehicles, filtering out false triggers from rain, wind, or shadows to ensure accurate object classification in both sterile and crowded environments.

Equipped with a 1/1.8-inch sensor, the device utilizes starlight X technology for exceptional low-light sensitivity. Additionally, HDR X captures high-quality video across scenes with large dynamic ranges, resolving details in both highlights and shadows without creating motion blur or artefacts on moving objects.

The built-in electronic image stabilization (EIS) uses a gyro sensor to continuously measure the frequency and amplitude of device vibrations. It automatically corrects shaky video on both the vertical and horizontal axes, ensuring stable, smooth, and usable footage even when the camera is mounted in environments prone to vibration.

Security is built into the device from production, starting with a unique cryptographic identity. The camera features Secure Element 3.0, providing enterprise-grade cybersecurity and protecting data through secure integration protocols. Independent third-party certifications validate the secure product lifecycle, ensuring systems remain protected and aligned with modern regulatory standards.

Auto-calibration uses AI technology to transform 2D pixels into 3D real-world measurements, determining parameters like the size, speed, and geolocation of objects. This reduces the calibration effort to a single click followed by human verification, saving time during setup while ensuring optimal tracking accuracy.
