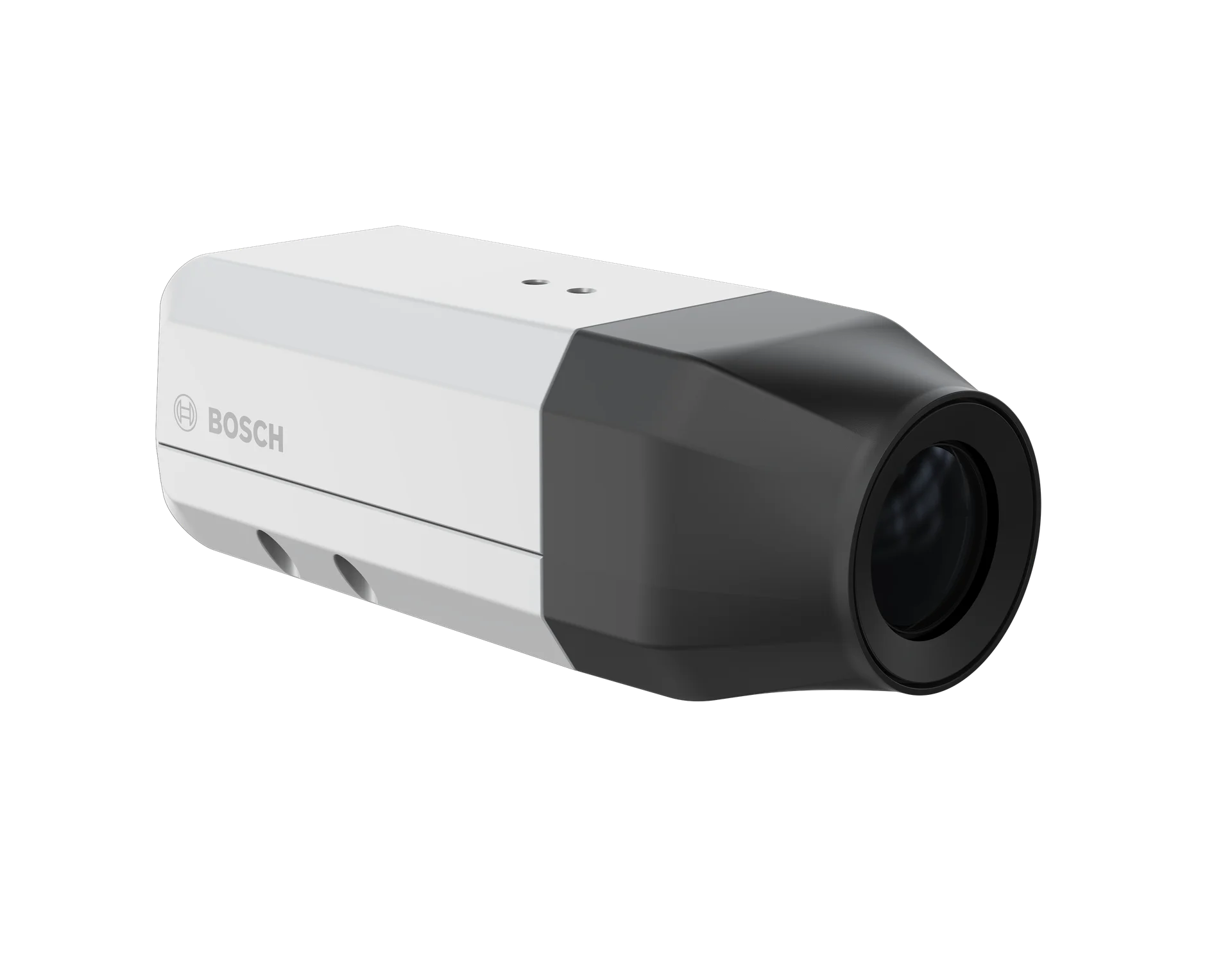

Fixed camera 4MP HDRX 10.5-47mm GenAI+
The DINION 7100s family delivers specialized imaging and advanced awareness for mission-critical environments. Combining starlight X and HDR X technology with built-in IVA Pro analytics, these cameras provides reliable detection and real-time understanding for city surveillance, traffic monitoring, and critical infrastructure.
Commercial Type No: NBI-7803S-AXT
Starlight X technology with 1/1.8" 4MP sensor
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Easy and flexible installation
Product Overview
Reliable detection in both sterile and crowded environments
Built-in IVA Pro delivers deep-learning object tracking that filters out environmental noise for accurate real-time understanding.
Exceptional clarity in extreme low light
Starlight X technology utilizes a large 1/1.8-inch sensor to capture sharp, detailed forensic insight in near darkness.
Artefact-free imaging for moving objects
HDR X resolves details in high-contrast scenes without blending exposures, eliminating motion blur on critical targets.
Stable video in high-vibration locations
Electronic image stabilization actively offsets mounting movement to maintain smooth, continuous visibility across challenging infrastructure sites.
Reduced bandwidth and storage requirements
Intelligent streaming adapts encoding based on analytic triggers, lowering bitrates significantly while preserving high-quality video for relevant events.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
|---|---|
| Resolution | 4MP |
| Low light technology | starlight X |
| WDR technology | HDR X |
| Frame rate (fps) | 1 fps – 60 fps |
| Lens focal length (mm) | 10.5 mm – 47 mm |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP5X |
| Operating temperature | -20 °C – 55 °C (-4 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy NBI-7803S-AXT Fixed camera 4MP HDRX 10.5-47mm GenAI+ 5 | 7 |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Visual Gun Detection ; IVA Pro Personal Protective Equipment |
Frequently Asked Questions
Common questions about the Fixed camera 4MP HDRX 10.5-47mm GenAI+
The DINION 7100s utilizes Starlight X technology and HDR X to deliver clear visibility in scenes with extreme contrast. Starlight X provides extreme low-light sensitivity for highly detailed images, while HDR X captures moving objects across different light levels without motion blur and imaging artefacts, ensuring you see every detail in both the highlights and shadows of the scene.
The camera comes pre-installed with IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy. This deep-learning based analytics suite delivers highly reliable detection and tracking of persons and vehicles. It is resilient against false triggers caused by rain, snow, shadows, and wind-induced movements, ensuring accurate object detection in scenes ranging from sterile zones to crowded and congested areas.
Configuration effort is made easy with the camera classifying objects out of the box. Auto-calibration reduces setup to a single click by transforming 2D pixels into 3D real-world measures like size, speed, and geolocation. Additionally, an optional wireless installation dongle allows installers to perform the initial set-up and lens zoom-focus wirelessly using the Project Assistant app.
To counteract unstable mounting environments, the DINION 7100s features Electronic Image Stabilization (EIS). The algorithm uses a built-in gyro sensor to measure the frequency and amplitude of the device's vibrations. It automatically corrects shaky video in both the vertical and horizontal axis, offsetting the physical impact to deliver a stable and smooth video feed.
Security begins at production, where each device receives a unique cryptographic identity. The DINION 7100s protects data and ensures secure interactions through Secure Element 3.0, which provides enterprise-grade cybersecurity and strengthens system integrity from the inside out. Independent third-party certifications validate the secure supply chain, ensuring the system remains protected, reliable, and aligned with modern regulatory standards.
