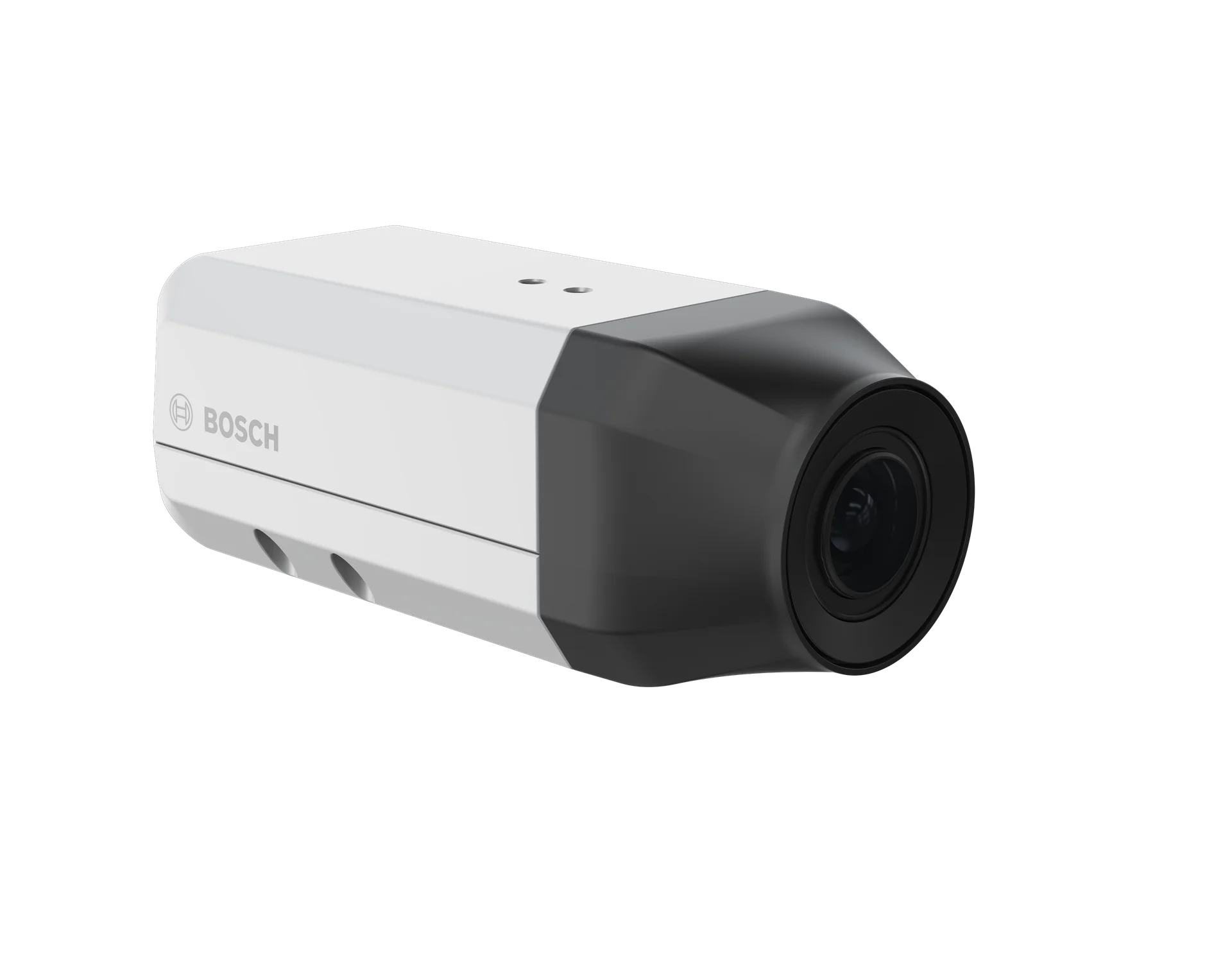

Fixed camera 2MP HDRX 4.4-10mm
The DINION 7100s family delivers specialized imaging and advanced awareness for mission-critical environments. Combining starlight X and HDR X technology with built-in IVA Pro analytics, these cameras provides reliable detection and real-time understanding for city surveillance, traffic monitoring, and critical infrastructure.
Commercial Type No: NBI-7802-AX
Starlight X technology with 1/1.8" HD 1080p sensor
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile to crowded and congested zones
Electronic image stabilization (EIS) measures the frequency and amplitude of the device’s vibrations to offset their impact on the image
Easy and flexible installation
Product Overview
Reliable detection in both sterile and crowded environments
Built-in IVA Pro delivers deep-learning object tracking that filters out environmental noise for accurate real-time understanding.
Exceptional clarity in extreme low light
Starlight X technology utilizes a large 1/1.8-inch sensor to capture sharp, detailed forensic insight in near darkness.
Artefact-free imaging for moving objects
HDR X resolves details in high-contrast scenes without blending exposures, eliminating motion blur on critical targets.
Stable video in high-vibration locations
Electronic image stabilization actively offsets mounting movement to maintain smooth, continuous visibility across challenging infrastructure sites.
Reduced bandwidth and storage requirements
Intelligent streaming adapts encoding based on analytic triggers, lowering bitrates significantly while preserving high-quality video for relevant events.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight X |
| WDR technology | HDR X |
| Frame rate (fps) | 1 fps – 60 fps |
| Lens focal length (mm) | 4.4 mm – 10 mm |
| Horizontal field of view (°) | 103° – 49° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP5X |
| Operating temperature | -20 °C – 55 °C (-4 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Visual Gun Detection ; IVA Pro Personal Protective Equipment |
Frequently Asked Questions
Common questions about the Fixed camera 2MP HDRX 4.4-10mm
The camera features Starlight X technology and HDR X to deliver exceptional clarity in both bright and dark areas. This ensures high-quality, detailed images without motion blur or artefacts, providing reliable visibility around the clock.
The DINION 7100s comes equipped with IVA Pro, bringing highly reliable deep-learning based detection of persons and vehicles. It is designed to understand context and deliver accurate alerts in scenes ranging from sterile perimeters to crowded and congested zones.
Yes. Built-in electronic image stabilization (EIS) continuously measures the frequency and amplitude of the device’s vibrations. It automatically offsets their impact on the image, ensuring a steady, clear view even when mounted on bridges, tall poles, or industrial sites.
The system is engineered for easy and flexible installation. Installers can leverage remote commissioning tools to configure settings and adjust fields of view, minimizing time spent on ladders and reducing overall project deployment friction.
The camera is Secure by Design, featuring a built-in Secure Element and alignment with global cybersecurity standards like FIPS 140-3 and IEC 62443-4-1. This ensures video streams and stored data remain protected from capture to delivery.
