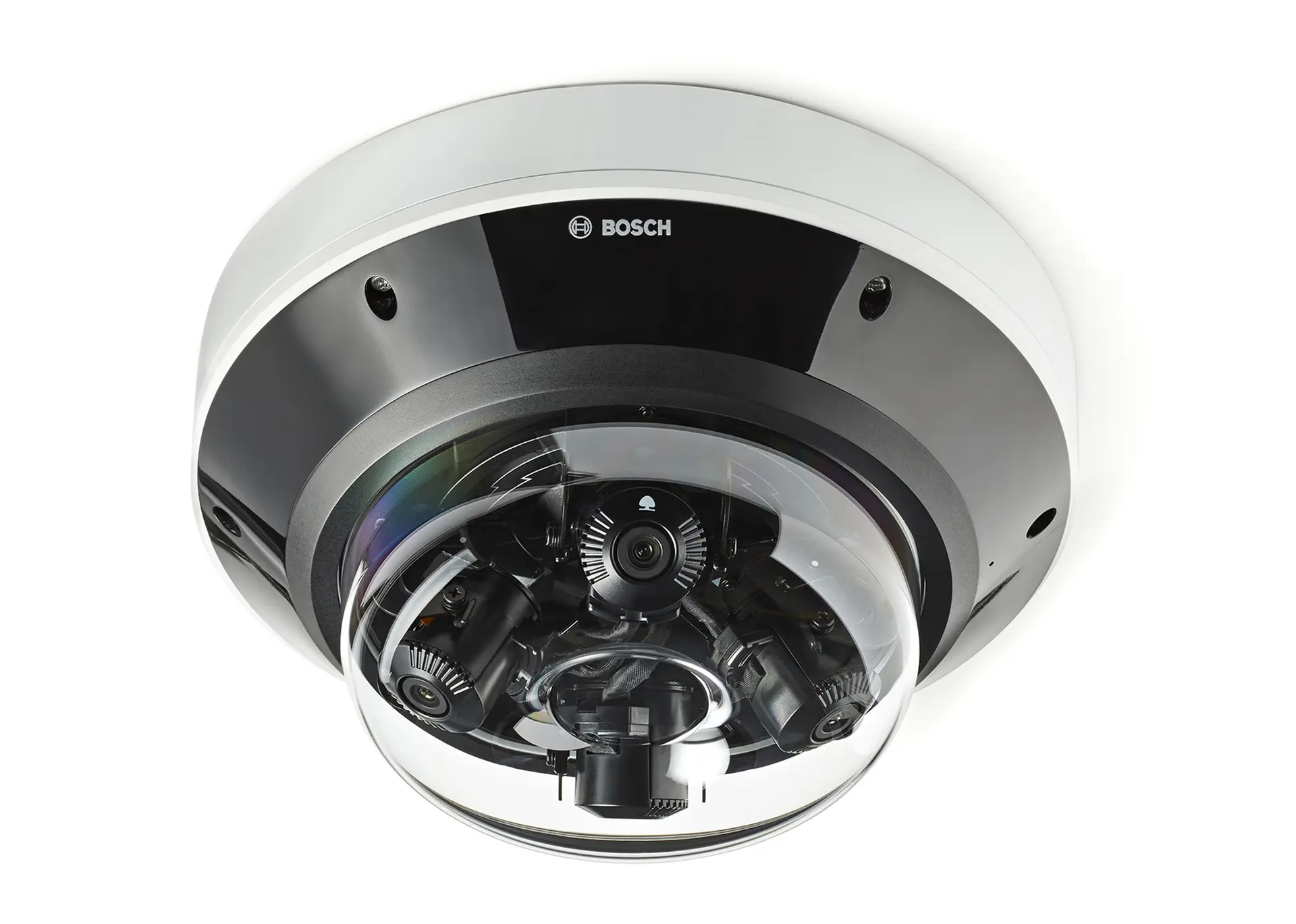

FLEXIDOME multi 7000i IR
The FLEXIDOME multi 7000i IR family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, and 360-degree infrared illumination it delivers intelligent detection, real-time alerts, and enhanced situational awareness making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Four 3 MP or 5 MP imagers at 30 fps in one camera on a single IP address
Easy and flexible installation with four motorized zoom/focus lenses
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Integrated surround IR illumination up to 30 m distance for pitch dark scenes
Product Overview
Expand coverage with fewer installed devices
Capture four independent, high-resolution views from a single IP address, significantly reducing installation time, cabling, and licensing costs.
Detect critical events with deep-learning analytics
Built-in IVA Pro Perimeter ignores environmental noise like rain or moving trees to reliably detect and classify people and vehicles in real time.
Maintain clear visibility in total darkness
Integrated 360-degree infrared illumination reveals crucial details up to 30 meters away, ensuring continuous awareness when lighting fails.
Simplify setup with remote motorized lenses
Easy and flexible remote adjustments Four motorized zoom and focus lenses allow teams to easily adjust the viewing angle without physically climbing to the device.
Secure by design
Ensure trusted operation in mission-critical environments with hardware-based security, advanced encryption, and end-to-end authentication.
Key Specifications
| Sensor type | 4x 1/2.7 inch CMOS |
|---|---|
| Resolution | 12 MP ; 20MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1-30 fps |
| Lens focal length (mm) | 3.7 – 7.7 mm (per sensor) |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66 and NEMA Type 4X |
| Impact protection | IK10 |
| Operating temperature | -50 °C – 55 °C (-58 °F – 131 °F) |
| IR illumination range | 30 m (98 ft) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the FLEXIDOME multi 7000i IR
It requires only one cable, one IP address, and one video management software (VMS) license to operate four independent cameras. Additionally, you can use the Project Assistant app with a wireless USB dongle to easily perform initial setup and adjust the motorized zoom and focus lenses from a mobile device.
The camera comes pre-installed with IVA Pro Buildings and IVA Pro Perimeter. These deep-learning applications provide highly reliable detection and tracking of persons and vehicles, resisting false triggers caused by challenging environments like rain, snow, moving trees, and shadows. Configuration is fast and easy, removing the need for manual calibration in most use cases.
It features integrated surround IR illumination that provides clear, detailed images up to 30 meters (98 feet) away in pitch-dark scenes. Combined with High Dynamic Range (HDR), it ensures operators can distinguish critical details and objects in both brightly backlit and extremely low-light conditions.
The device includes a built-in Secure Element (SE) hardware with Trusted Platform Module (TPM) functionality to ensure the highest levels of data security. It supports Public Key Infrastructure (PKI), 802.1x network authentication, and RSA encryption key lengths up to 4096 bits to guarantee superior protection against malicious attacks.
With four flexibly positioned imagers moving along a circular track, it is perfect for comprehensive surround coverage. This makes it highly effective for wide-area monitoring, complex traffic intersections, and building corners where maintaining continuous situational awareness without blind spots is critical.
In this family
FLEXIDOME multi 7000i IR
:quality(75))
Fixed dome 20MP 3.7-7.7mm IP66 IR
The FLEXIDOME multi 7000i IR family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, and 360-degree infrared illumination it delivers intelligent detection, real-time alerts, and enhanced situational awareness making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Fixed dome 20MP 3.7-7.7mm IP66 IR
Fixed dome 12MP 3.7-7.7mm IP66 IR
The FLEXIDOME multi 7000i IR family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, and 360-degree infrared illumination it delivers intelligent detection, real-time alerts, and enhanced situational awareness making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Fixed dome 12MP 3.7-7.7mm IP66 IR
