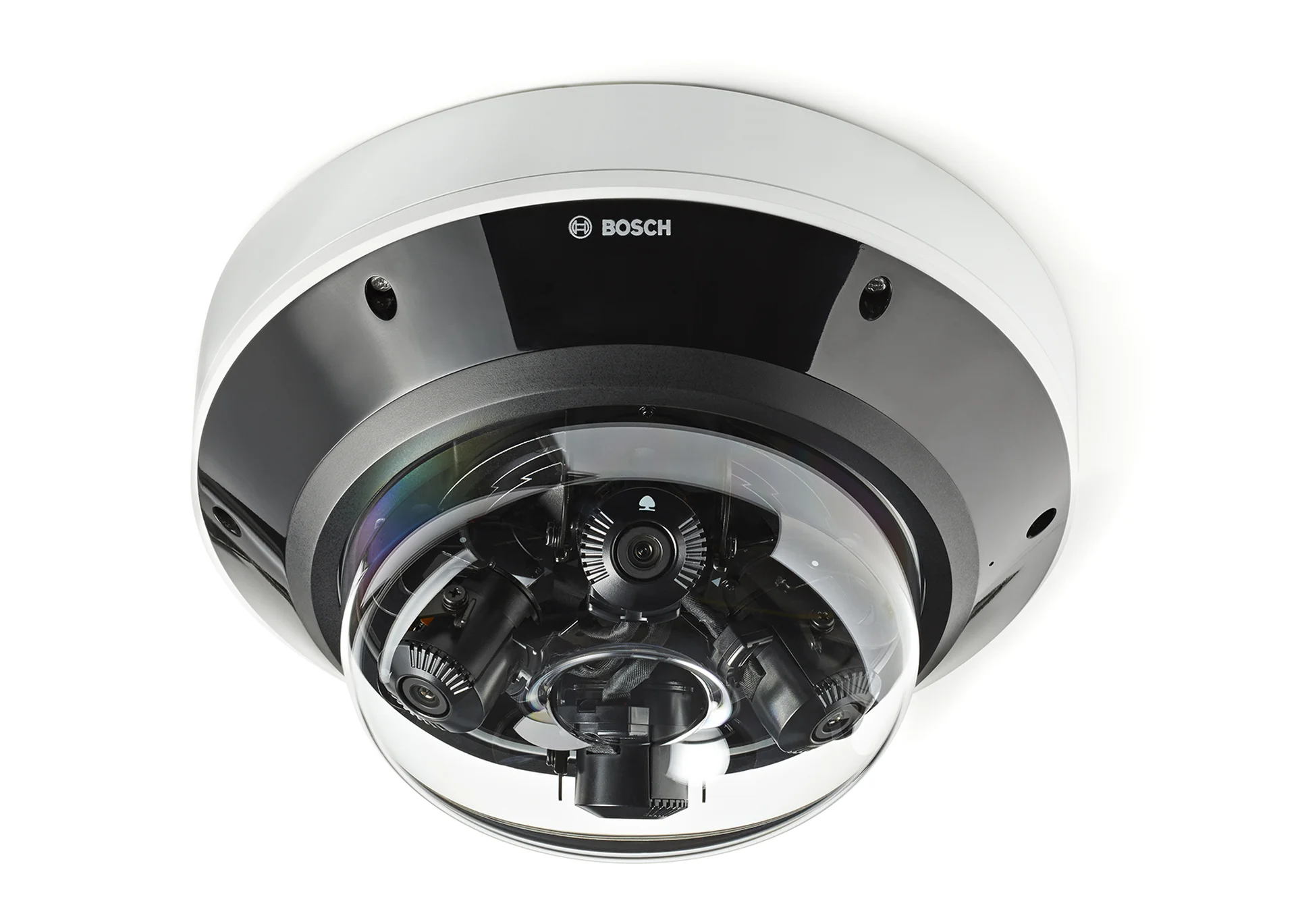

Fixed dome 20MP 3.7-7.7mm IP66 IR
The FLEXIDOME multi 7000i IR family provides four independently adjustable views in a single camera, enabling wide-area coverage while reducing installation and ownership costs. Equipped with built-in IVA Pro analytics, and 360-degree infrared illumination it delivers intelligent detection, real-time alerts, and enhanced situational awareness making it ideal for traffic intersections, building corners, and other demanding surveillance environments.
Commercial Type No: NDM-7703-AL
Four 5 MP imagers at 30 fps in one camera on a single IP address
Easy and flexible installation with four motorized zoom/focus lenses
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Integrated surround IR illumination up to 30 m distance for pitch dark scenes
Product Overview
Expand coverage with fewer installed devices
Capture four independent, high-resolution views from a single IP address, significantly reducing installation time, cabling, and licensing costs.
Detect critical events with deep-learning analytics
Built-in IVA Pro Perimeter ignores environmental noise like rain or moving trees to reliably detect and classify people and vehicles in real time.
Maintain clear visibility in total darkness
Integrated 360-degree infrared illumination reveals crucial details up to 30 meters away, ensuring continuous awareness when lighting fails.
Easy and flexible remote adjustments
Four motorized zoom and focus lenses allow teams to easily adjust the viewing angle without physically climbing to the device.
Secure by design
Ensure trusted operation in mission-critical environments with hardware-based security, advanced encryption, and end-to-end authentication.
Key Specifications
| Resolution | 20MP |
|---|---|
| WDR technology | HDR |
| Frame rate (fps) | 1-30 fps |
| Lens focal length (mm) | 3.7-7.7mm |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66 and NEMA Type 4X |
| Impact protection | IK10 |
| Operating temperature | -50 °C to +55 °C (-58 °F to +131 °F) |
| IR illumination range | 30 m (98 ft) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Fixed dome 20MP 3.7-7.7mm IP66 IR
The multi-imager camera simplifies installation by requiring only one mount, one cable, and one IP address to operate four independent 5 MP imagers. It utilizes Power-over-Ethernet (PoE) and features four motorized zoom/focus lenses, reducing configuration time and video management software licensing costs while delivering comprehensive surround coverage.
The camera comes pre-installed with IVA Pro Buildings and IVA Pro Perimeter. This deep-learning based intelligent video analytics system delivers highly reliable detection and tracking of persons and vehicles in scenes ranging from sterile zones to crowded, congested areas. It is extremely resistant to false triggers caused by rain, wind, or shadows, enabling confident, real-time understanding without the need for manual calibration.
The FLEXIDOME multi 7000i IR features High Dynamic Range (HDR) to capture detailed images in both the bright and dark areas of the same scene. Additionally, it includes integrated surround IR illumination that provides crisp visibility up to 30 meters (98 feet) away in pitch-dark conditions.
The camera is secure by design, featuring a built-in Secure Element (SE) hardware component that provides Trusted Platform Module (TPM) functionality. It supports Public Key Infrastructure (PKI), 802.1x network authentication, and RSA encryption key lengths up to 4096 bits. A Bosch origin device certificate is pre-installed to ensure the highest levels of data security and privacy protection.
The robust mechanical design is suitable for both indoor and outdoor usage. It is rated to IP66 and IK10 standards, safeguarding the camera against rain, dust, vandalism, and tampering. The camera also operates reliably in a wide ambient temperature range from -50 °C up to +55 °C (-58 °F up to 131 °F).
