MIC 7100i - 2MP

MIC 7100i - 2MP

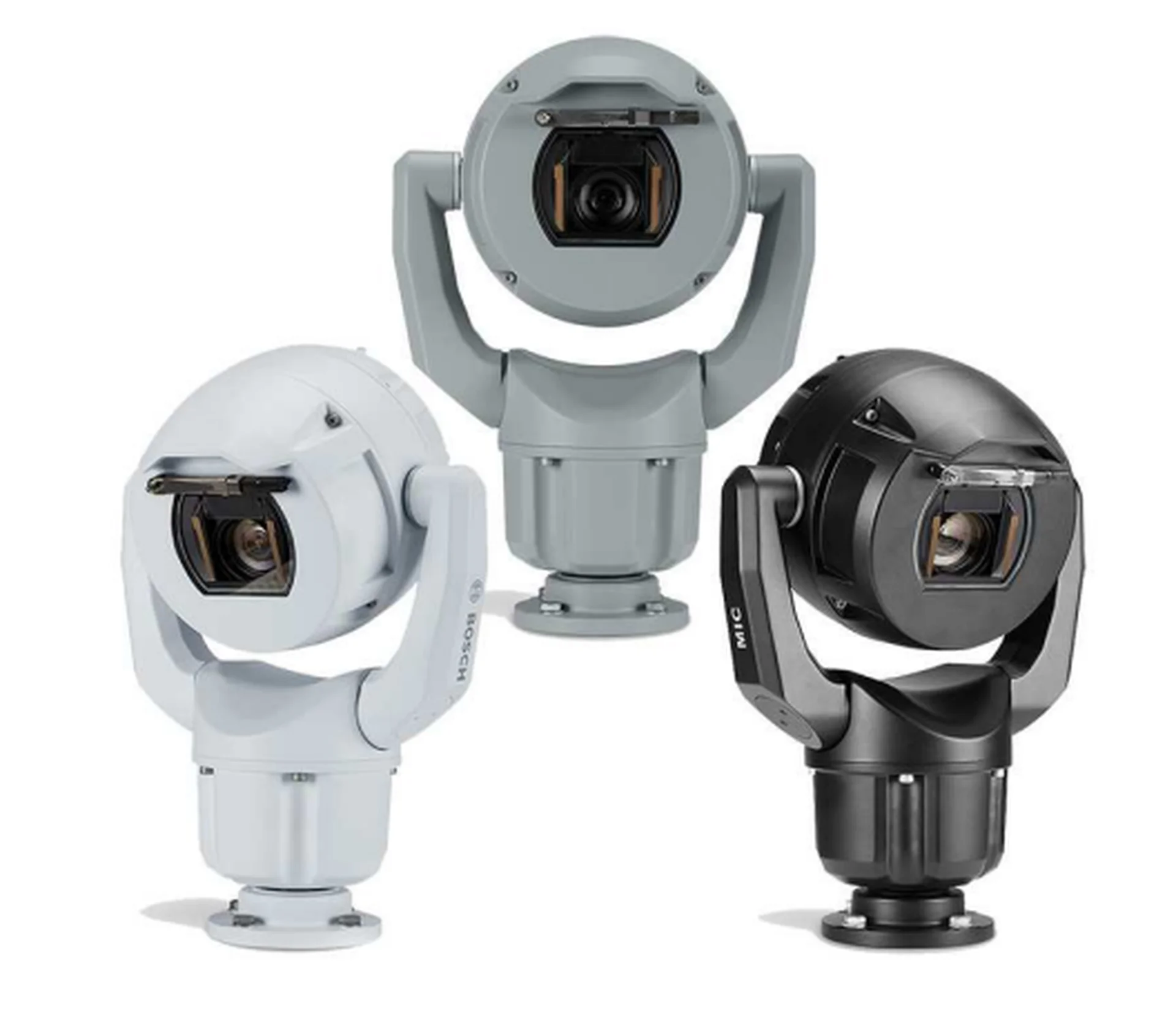

The MIC 7100i family of ruggedized PTZ cameras is engineered for mission-critical environments like city surveillance, transportation and critical infrastructure, with excellent image, accurate PTZ control and built-in analytics.

  • Starlight camera technology with excellent low-light sensitivity and HDR to see details in bright and dark areas simultaneously

  • Flexible streaming capabilities powering three independent streams

  • Edge intelligence and object detection even when the camera is moving

  • Optional illuminator with multispectral LEDs up to 550 m (1804.50 ft)

Product Overview

Continuous detection during camera movement

Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.

Clear visibility in near darkness

Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.

Uninterrupted performance in extreme conditions

A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.

Flexible bandwidth and storage management

Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.

Secure data from capture to delivery

Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.

Key Specifications

Key specifications
Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
Frame rate (fps)1 – 60 fps
Lens focal length (mm)6.6 – 198 mm
Lens zoom (x)30x
Horizontal field of view (°)2.1° – 58.3°
Video compressionH.264 / AVC ; H.265 / HEVC ; M-JPEG
IP ratingIP66; IP68
Impact protectionIK10
Operating temperature-40 °C – 65 °C (-40 °F – 149 °F)
Analytics (built-in)Intelligent Video Analytics

Frequently Asked Questions

Common questions about the MIC 7100i - 2MP

Built-in Intelligent Video Analytics allows the camera to maintain detection fields and detect objects entering them even when the camera is moving. This ensures continuous monitoring and situational awareness during Guard Tours.

With a ruggedized, all-metal anodized housing rated to IP68 and IK10, the camera providing outstanding protection against water, dust, impact, corrosion, and continuous vibration. Its all-metal intermeshing gears and closed-loop positioning system maintain precise camera positioning without recalibration, even in high-vibration locations such as bridges, ports, and industrial facilities. Enhanced models further improve reliability with an anti-backlash drive train and an integrated window defroster for clear imaging in harsh weather conditions.

Equipped with advanced starlight imaging technology and a 120 dB High Dynamic Range, the camera captures clear, highly detailed color video in near-darkness. For total darkness, an optional illuminator distributes infrared light uniformly up to 550 meters (1804.50 feet) without overexposing the scene.

Yes, the Intelligent Tracking feature automatically controls the pan, tilt, and zoom actions of the camera to follow moving objects. It offers smooth, continuous tracking even in challenging scenes with background movement, allowing operators to focus on critical events as they unfold.

The camera is secure by design, featuring an onboard Secure Element and a built-in login firewall. It requires secure connections upon initial setup and uses cryptographic keys to authenticate firmware, ensuring your data remains protected from unauthorized access or cyber threats.

In this family

MIC 7100i - 2MP

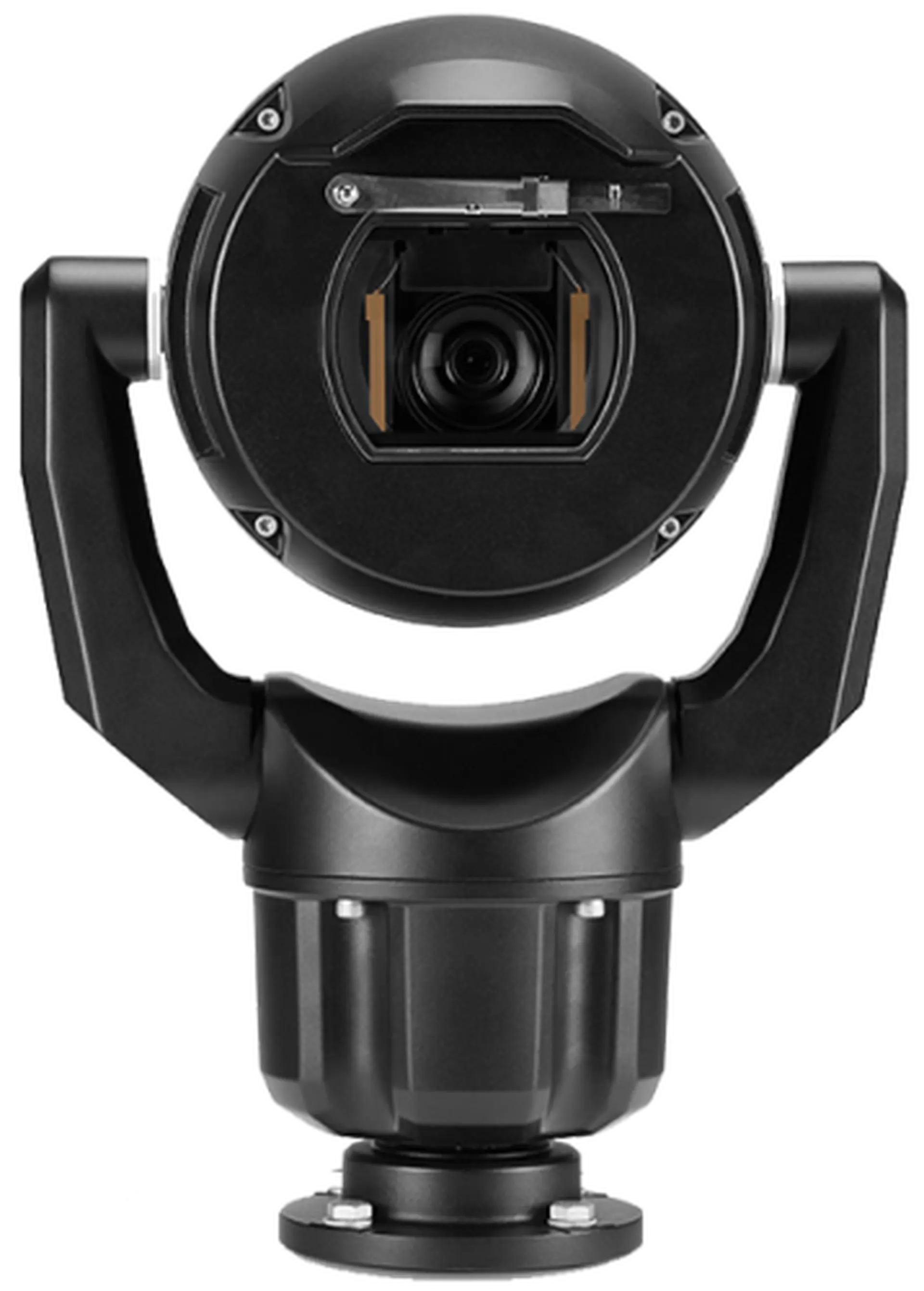

PTZ 2MP 30x starlight black

The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.

View Details

PTZ 2MP 30x starlight black

Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
View Details

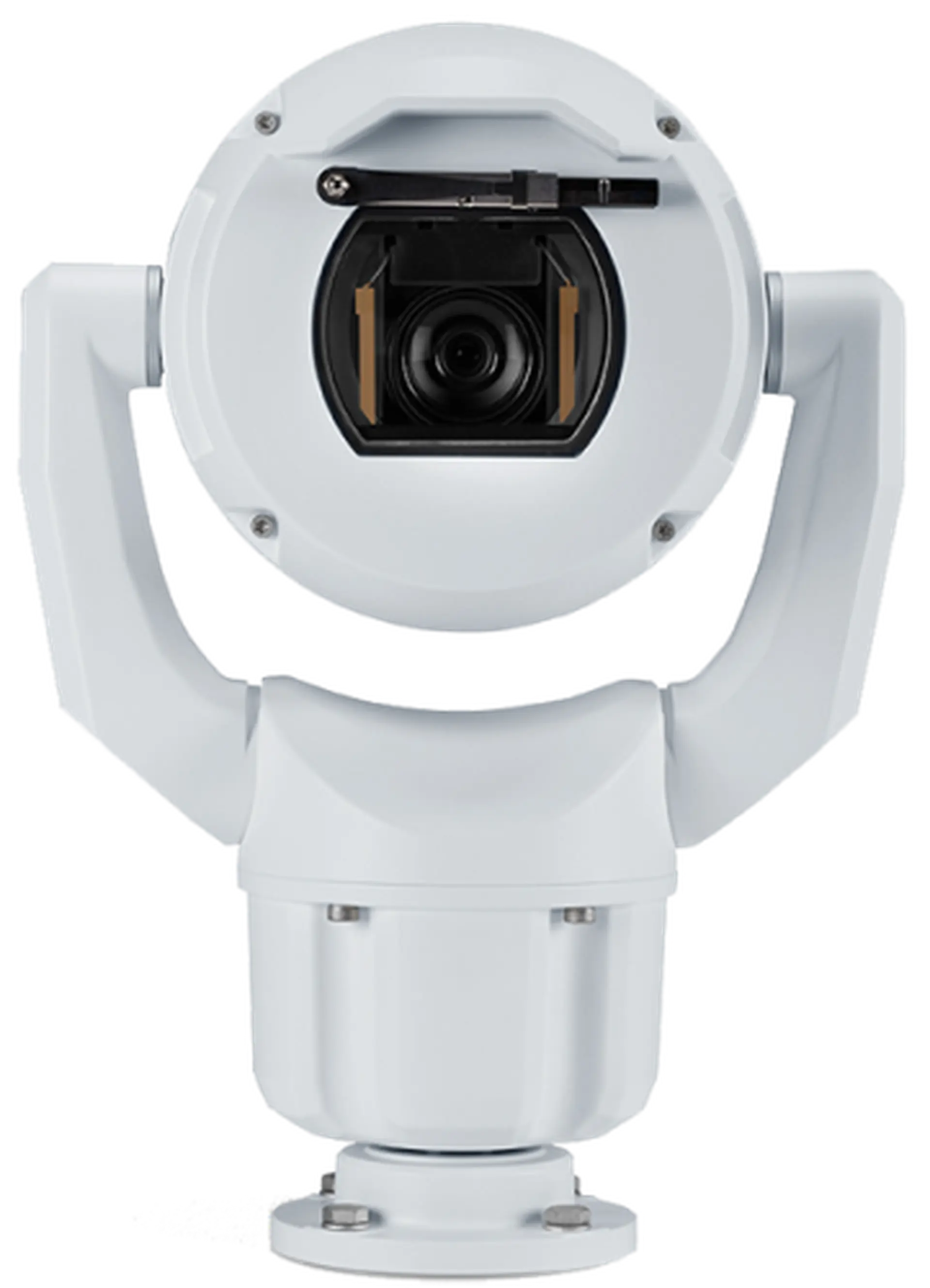

PTZ 2MP 30x starlight white

The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.

View Details

PTZ 2MP 30x starlight white

Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
View Details

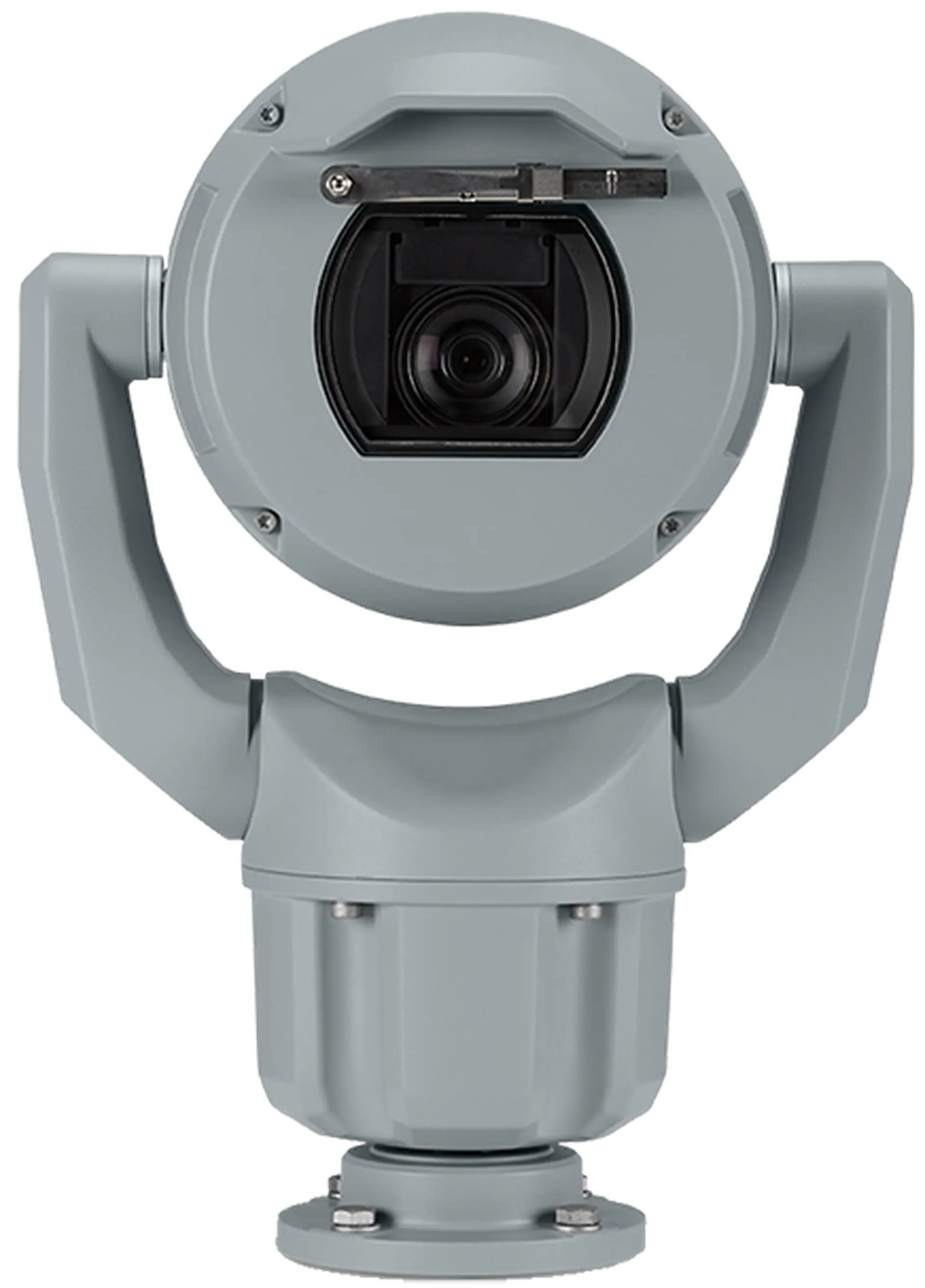

PTZ 2MP 30x starlight gray

The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.

View Details

PTZ 2MP 30x starlight gray

Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
View Details

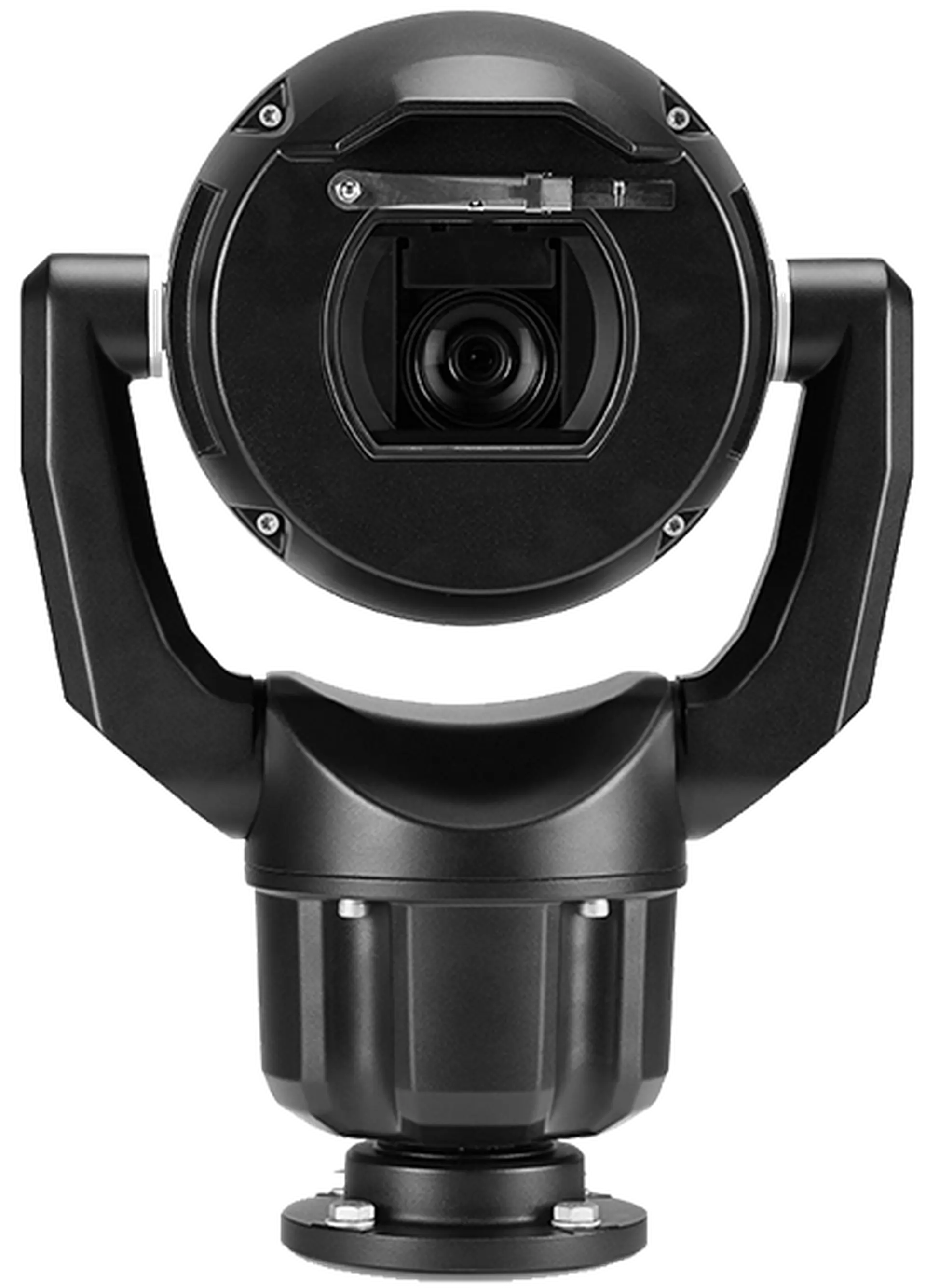

PTZ 2MP 30x starlight enhanced black

The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.

View Details

PTZ 2MP 30x starlight enhanced black

Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
View Details

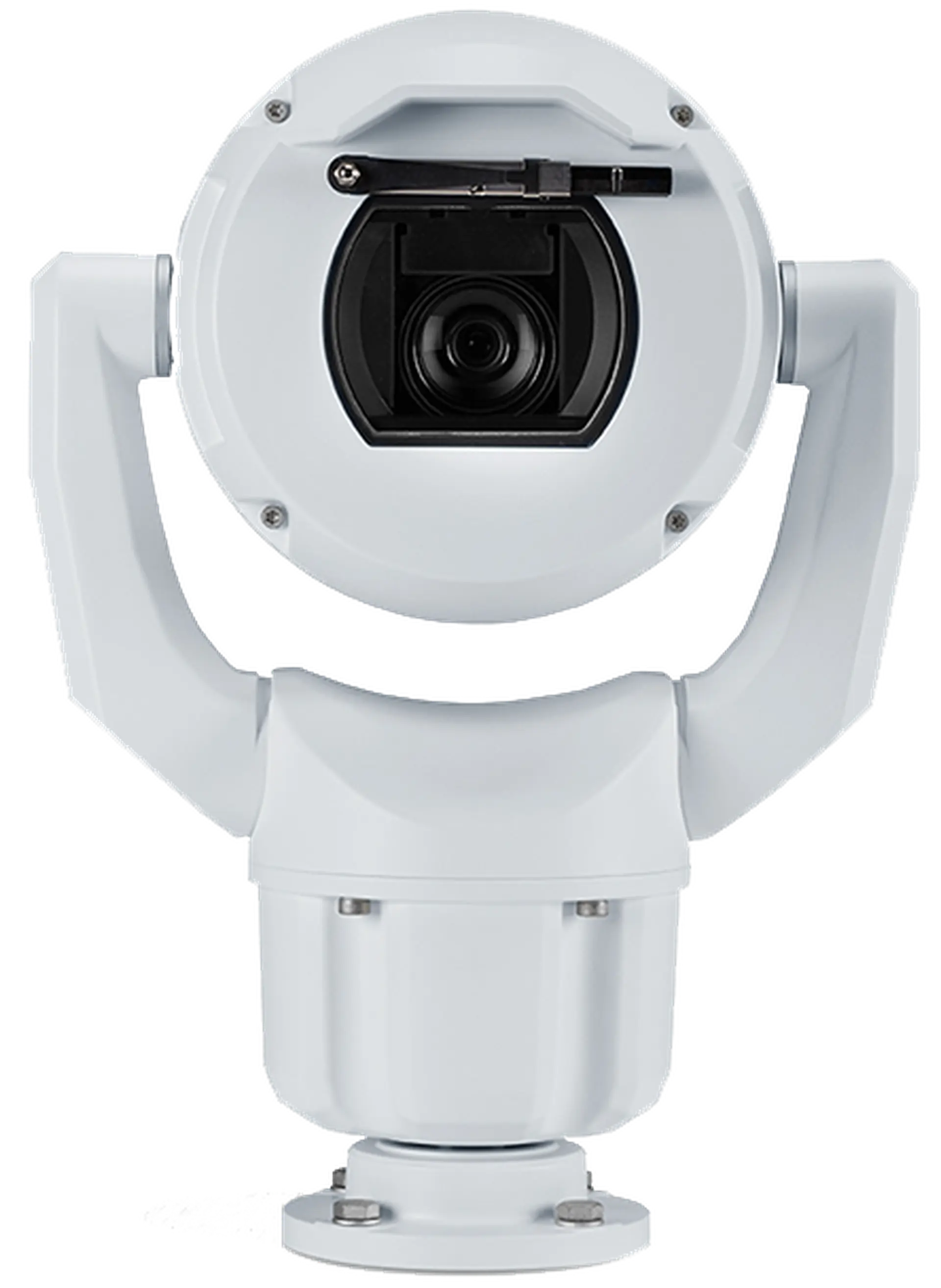

PTZ 2MP 30x starlight enhanced white

The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.

View Details

PTZ 2MP 30x starlight enhanced white

Sensor type1/2 inch CMOS
Resolution2MP
Low light technologystarlight
WDR technologyHDR
View Details

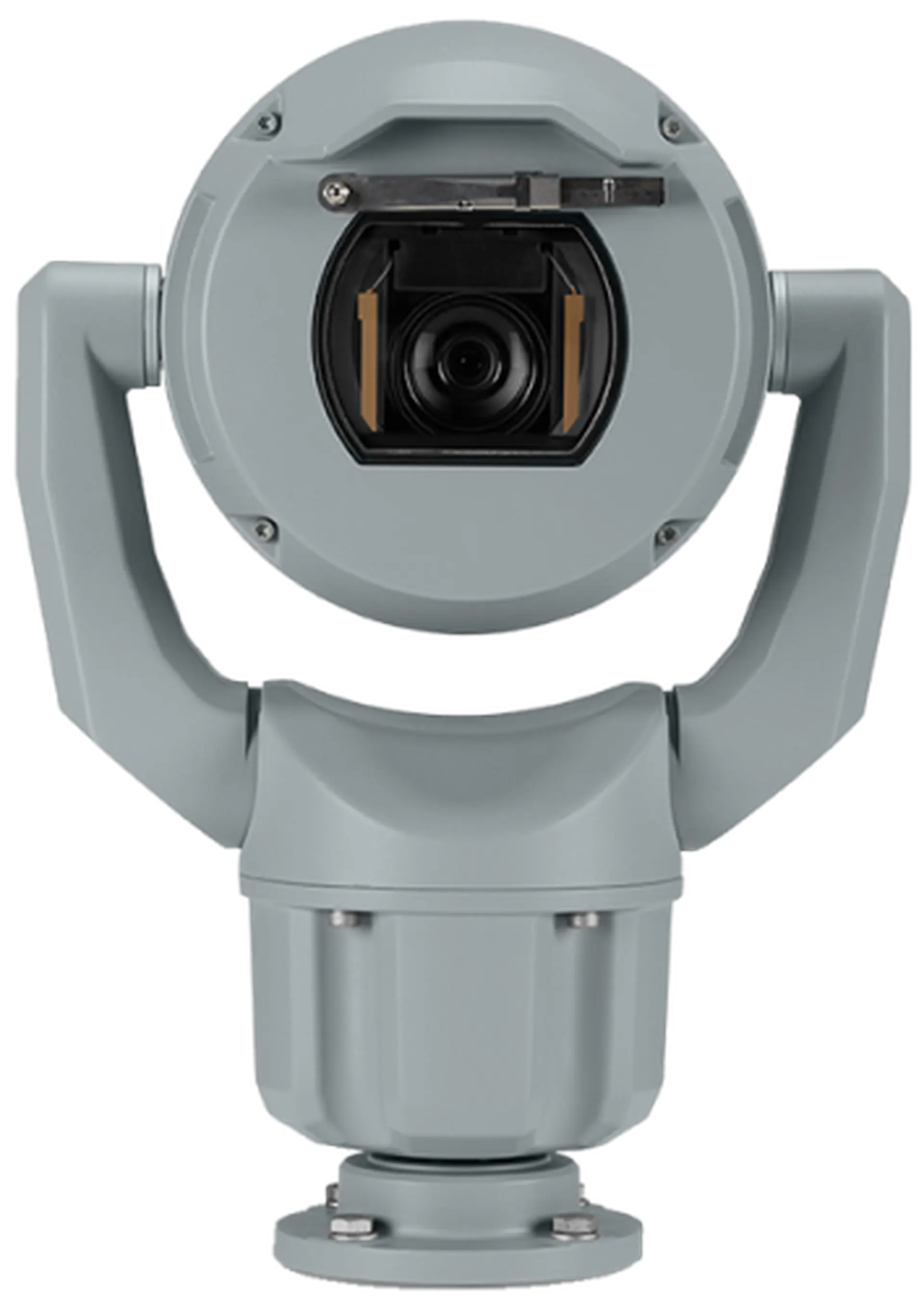

PTZ 2MP 30x starlight enhanced gray
