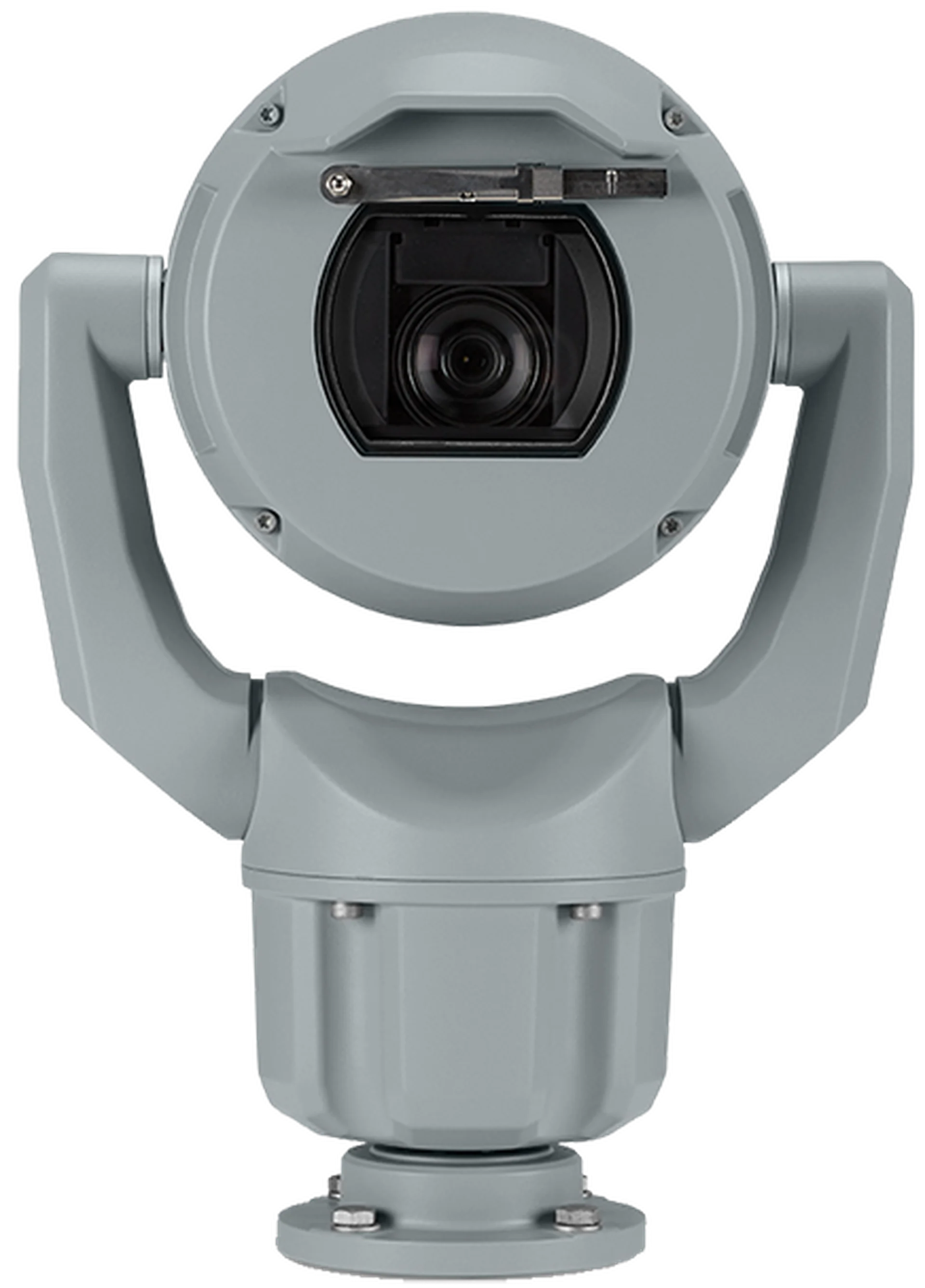

PTZ 2MP 30x starlight gray
The MIC 7100i - 2MP family of ruggedized PTZ cameras is engineered for mission-critical environments like transportation and critical infrastructure, with built-in analytics and an open platform for third-party integrations.
Commercial Type No: MIC-7602-Z30G
Starlight camera technology with excellent low-light sensitivity (color = 0.0047 lx) and High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
Flexible streaming capabilities powering three independent streams
Edge intelligence and object detection even when the camera is moving
Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field (up to 550 m (1804.50 ft)) to avoid dark spots or an over-illuminated scene
Product Overview
Continuous detection during camera movement
Built-in Intelligent Video Analytics actively detects and analyzes objects even while the camera is panning or on a guard tour.
Clear visibility in near darkness
Advanced starlight technology and High Dynamic Range (HDR) reveal critical details in both brightly lit and shadowed areas simultaneously.
Uninterrupted performance in extreme conditions
A ruggedized, all-metal design withstands severe weather, high-impact shocks, and continuous vibration without losing positional accuracy.
Flexible bandwidth and storage management
Three independent video streams allow operators to optimize resolution and frame rates to reduce network strain without sacrificing quality.
Secure data from capture to delivery
Built-in cryptographic hardware and secure boot protocols ensure your video data remains protected against unauthorized access.
Key Specifications
| Sensor type | 1/2 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 6.6 – 198 mm (30x zoom) |
| Lens zoom (x) | 30x |
| Horizontal field of view (°) | 2.1° – 58.3° |
| Video compression | H.264 / AVC ; H.265 / HEVC ; M-JPEG |
| IP rating | IP66; IP68 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 65 °C (-40 °F to +149 °F) |
| Analytics (built-in) | Intelligent Video Analytics |
Frequently Asked Questions
Common questions about the PTZ 2MP 30x starlight gray
The camera features intelligent video analytics that operate continuously, even during pan, tilt, and zoom movements. Whether on a guard tour or controlled manually, the system can detect activity and trigger alerts if objects enter predefined alarm fields. This ensures continuous, real-time understanding of the environment without introducing blind spots during routine movement.
Yes. By combining high dynamic range (120 dB) with advanced starlight technology, the camera simultaneously captures critical details in both bright highlights and deep shadows. For environments with zero ambient light, an optional field-installable illuminator distributes infrared light uniformly up to 550 meters (1804.50 feet). This eliminates dark spots and prevents over-illuminated areas, giving operators the clarity needed to act confidently.
Security is built into the system by design. It features a dedicated Secure Element with cryptographic keys, secure and verified boot processes, and a three-level password protection protocol. Additionally, advanced software sealing detects any unauthorized configuration changes, ensuring that critical video data and device integrity remain protected from capture to delivery.
The system is engineered for simple, flexible deployment. It supports upright, inverted, or canted mounting orientations to fit complex infrastructures. With High Power-over-Ethernet (High PoE) support, a single cable can manage power, video viewing, and camera control. This minimizes installation time and reduces the complexity that often slows critical projects down.
The camera utilizes highly efficient H.265 video encoding combined with flexible streaming capabilities. It can power three independent streams simultaneously, allowing operators to prioritize specific streams for live viewing or long-term recording. This intelligent bitrate management ensures that teams receive high-resolution, actionable insights while maintaining a very low network load.
