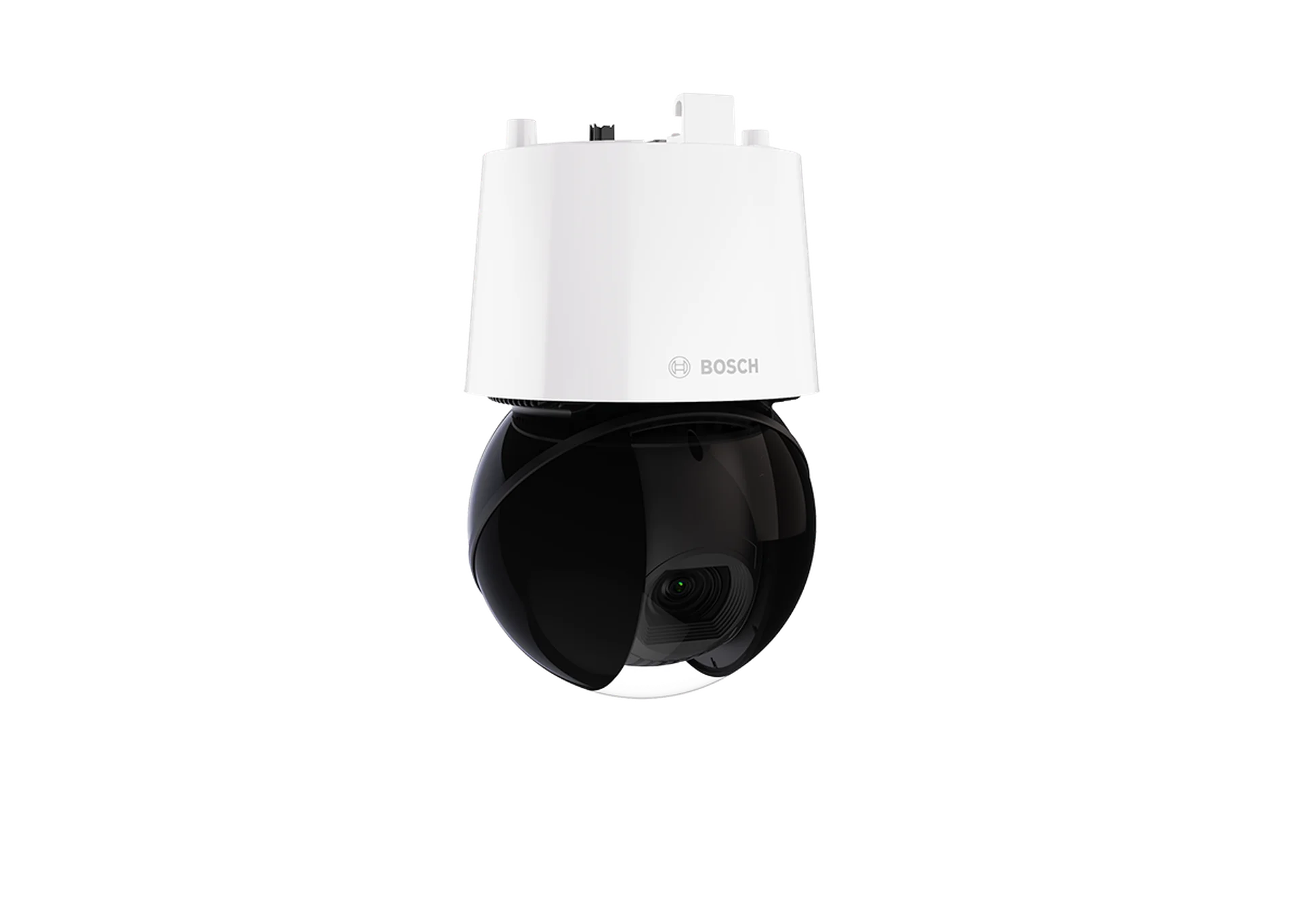

AUTODOME 7100i
The AUTODOME 7100i family of moving PTZ cameras delivers continuous visibility and intelligent tracking for dynamic environments like transportation and city surveillance. Key features include built-in IVA Pro analytics, available IR detection up to 300 m (984 ft), a robust mechanism, and starlight imaging.
Built-in artificial intelligence alerts operators of unusual scene activity
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Highly accurate and reliable solution thanks to a closed-loop drive platform
Optional direct fiber connection for increased communications security
Product Overview
Detect activity during camera movement
Built-in IVA Pro analytics identifies unusual scene activity and triggers alerts even while the camera is actively panning, tilting, or zooming.
Track targets with precise accuracy
A highly accurate, closed-loop drive platform provides optimum smoothness and reliable positioning to ensure continuous visibility of critical events.
Provide views above the horizon
The specialized physical design captures undistorted, high-resolution video above the horizon line, making it ideal for monitoring uneven city landscapes.
See clearly in near-total darkness
Starlight imaging, available IR illumination, and sophisticated noise suppression deliver exceptional color detail in low-light environments so operators never lose visual context.
Secure communications from end to end
An optional direct fiber connection and a certified built-in Secure Element protect sensitive video data against unauthorized access and cyber threats.
Key Specifications
| Sensor type | 1/2.8 inch CMOS ; 1 inch CMOS |
|---|---|
| Resolution | 2MP ; 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps (2MP) ; 1 – 30 fps (8MP) |
| Lens focal length (mm) | 4.25 – 170 mm ; 9.3 – 111.6 mm |
| Lens zoom (x) | 12x ; 40x |
| Horizontal field of view (°) | 1.9° – 66.4° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C - 60 °C (-40 °F – 140 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter |
| Analytics (available) | IVA Pro Traffic ; IVA Pro Intelligent Tracking |
Frequently Asked Questions
Common questions about the AUTODOME 7100i
Yes. The AUTODOME 7100i features built-in Intelligent Video Analytics that can detect objects and trigger alarms even while the PTZ camera is moving. This ensures continuous situational awareness, whether the camera is operated manually or executing a pre-defined guard tour.
IVA Pro Building and IVA Pro Perimeter bring highly reliable, deep learning-based detection of persons and vehicles to a wide range of environments. This built-in analytics is designed to perform accurately in scenes ranging from sterile perimeter zones to highly crowded and congested urban spaces, providing operators with clear, real-time understanding.
The camera utilizes advanced starlight imaging technology and sophisticated noise suppression to deliver exceptional color sensitivity. Cameras with IR illumination offer excellent near-zero-light detection up to 200 m (656 ft). This ensures the system captures clear, detailed video even with a minimum of ambient light, allowing security teams to maintain visual intelligence around the clock.
The AUTODOME 7100i is designed with robust data security features, including a built-in Secure Element crypto co-processor. It supports three-level password protection, secure boot, and encrypted transport protocols, ensuring cyber-resilient operation from capture to delivery.
Yes. The pendant housing is IP66-rated to withstand challenging outdoor weather and operates reliably in temperatures down to -40 degrees Celsius. Additionally, it offers an optional direct fiber connection to ensure secure, uninterrupted data transmission in demanding infrastructure environments.
