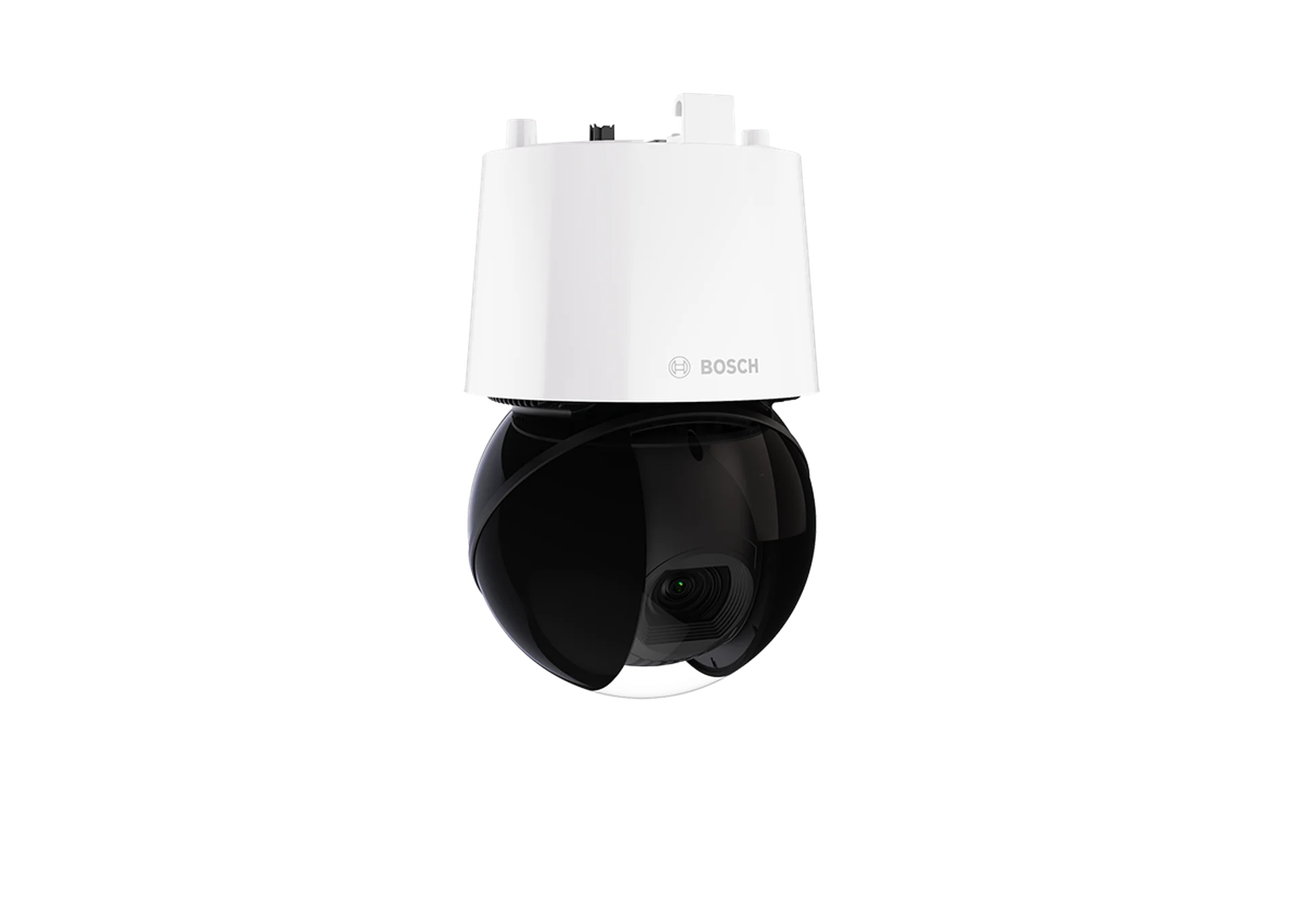

PTZ 2MP HDR 40x IP66 pendant
The AUTODOME 7100i family of moving PTZ cameras delivers continuous visibility and intelligent tracking for dynamic environments like transportation and city surveillance. Key features include built-in IVA Pro analytics, available IR detection up to 300 m (984 ft), a robust mechanism, and starlight imaging.
Commercial Type No: NDP-7802-Z40
High-performance PTZ with starlight imaging technology and HDR for details in difficult light conditions
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Built-in artificial intelligence alerts operators of unusual scene activity
Fully configurable quad streaming
Optional direct fiber connection for increased communications security
Product Overview
Detect activity during camera movement
Built-in IVA Pro analytics identifies unusual scene activity and triggers alerts even while the camera is actively panning, tilting, or zooming.
Track targets with precise accuracy
A highly accurate, closed-loop drive platform provides optimum smoothness and reliable positioning to ensure continuous visibility of critical events.
Provide views above the horizon
The specialized physical design captures undistorted, high-resolution video above the horizon line, making it ideal for monitoring uneven city landscapes.
See clearly in near-total darkness
Starlight imaging, available IR illumination, and sophisticated noise suppression deliver exceptional color detail in low-light environments so operators never lose visual context.
Secure communications from end to end
An optional direct fiber connection and a certified built-in Secure Element protect sensitive video data against unauthorized access and cyber threats.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 2MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps |
| Lens focal length (mm) | 4.25 – 170 mm |
| Lens zoom (x) | 40x |
| Horizontal field of view (°) | 1.9° – 66.4° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -40 °C - 60 °C (-40 °F – 140 °F) |
| Analytics (built-in) | Camera trainer; IVA Pro Buildings; IVA Pro Perimeter; IVA Pro Privacy |
Frequently Asked Questions
Common questions about the PTZ 2MP HDR 40x IP66 pendant
The AUTODOME 7100i features high-performance starlight imaging technology combined with High Dynamic Range (HDR). This ensures excellent low-light sensitivity and captures clear details in challenging light conditions, providing undistorted, high-resolution video above the horizon—ideal for city landscapes that are not flat.
The camera features built-in, application-specific Intelligent Video Analytics (IVA) Pro packages, including IVA Pro Buildings and IVA Pro Perimeter. These deep-learning based analytics provide highly reliable detection of persons and vehicles in scenes ranging from sterile zones to crowded and congested areas, instantly alerting operators to unusual scene activity.
The AUTODOME 7100i utilizes a highly accurate and reliable closed-loop drive platform. This ensures precise tracking and positioning, allowing operators to reliably detect moving objects during PTZ operations and seamlessly follow critical activity as it unfolds across expansive environments.
The system is secure by design, featuring a built-in cryptographic coprocessor with FIPS 140-3 certification, full end-to-end encryption, and secure boot capabilities. Additionally, it supports an optional direct fiber connection for increased communications security, ensuring critical video data remains protected from capture to delivery.
The AUTODOME 7100i features fully configurable quad streaming. Supported by intelligent streaming technology and H.265 compression, it allows teams to optimize framerates and bandwidth without sacrificing image quality, ensuring continuous access to high-quality video while minimizing storage requirements.
