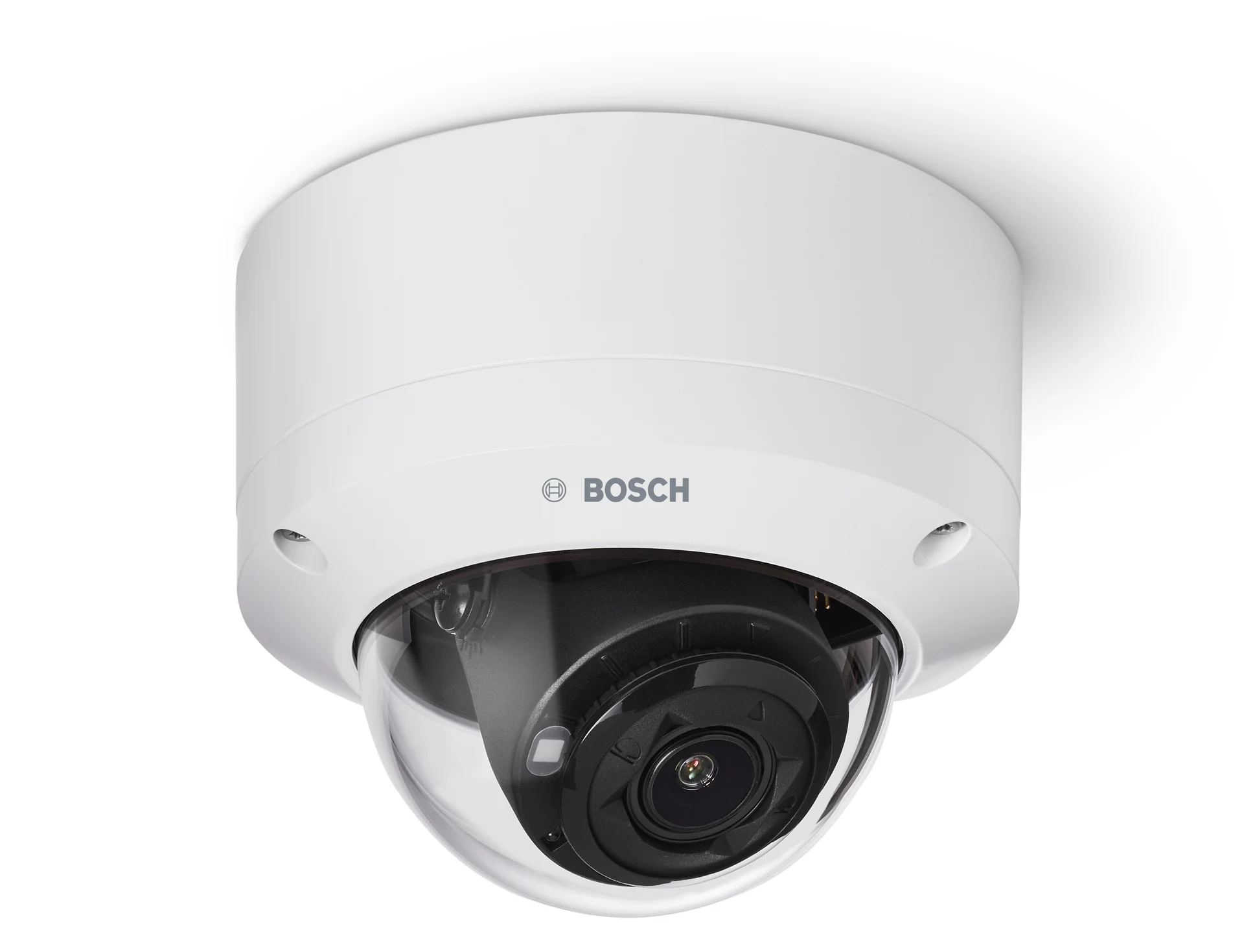

FLEXIDOME outdoor 5100i IR

FLEXIDOME outdoor 5100i IR

The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.

  • Up to 4K ultra HD for highly detailed image

  • Starlight camera technology with excellent low-light performance

  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested

  • High Dynamic Range to see every detail in both bright and dark areas of the scene

  • Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance

Product Overview

Minimize false triggers with intelligent detection

Built-in IVA Pro Buildings reliably detects and classifies people and vehicles in crowded scenes, filtering out environmental noise to help operators focus on real events.

Maintain clear visibility in extreme lighting

Starlight camera technology and High Dynamic Range ensure you see every critical detail in both bright sunlight and near-zero light conditions.

Continuous awareness in near total darkness

An integrated intelligent IR illuminator automatically adjusts to the scene, providing clear visibility up to 45 m (148 ft) without over-exposing nearby objects.

Reduce installation time and deployment friction

A modular design with a hardware-free click-and-rotate mechanism allows integrators to mount and configure the device quickly, minimizing disruption to daily operations.

Secure data from capture to delivery

A built-in Secure Element and advanced encryption standards ensure your video data remains protected against malicious attacks and unauthorized access.

Key Specifications

Key specifications
Sensor type1/2.8 inch CMOS ; 1/2.7-inch CMOS
Resolution2MP ; 5MP ; 8MP
Low light technologystarlight
WDR technologyHDR
Frame rate (fps)1 – 60 fps (2MP/5MP) ; 1 – 30 fps (8MP)
Lens focal length (mm)3.2 to 10.5 mm
Horizontal field of view (°)105° – 31° (2MP, 8MP) ; 96º - 29º (5MP)
Field of view adjustmentMotorized zoom/focus
Video compressionH.264 / AVC; H.265 / HEVC; M-JPEG
IP ratingIP66
Impact protectionIK10 ; NEMA 4X
Operating temperature-40 °C – 55 °C (-40 °F – 131 °F)
IR illumination range40 – 45 m
Analytics (built-in)IVA Pro Buildings ; IVA Pro Privacy
Analytics (available)IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics

Frequently Asked Questions

Common questions about the FLEXIDOME outdoor 5100i IR

The camera comes with IVA Pro Buildings pre-installed, delivering highly reliable deep-learning based detection and tracking of persons and vehicles. It reliably detects and classifies objects even in challenging environments with rain, snow, moving trees, or shadows, minimizing false triggers without the need for manual calibration.

It features starlight camera technology and High Dynamic Range (HDR), providing highly detailed images in both bright and dark areas of the scene. Additionally, a built-in intelligent infrared (IR) illuminator ensures continuous visibility in extreme low-light conditions, with a viewing distance of up to 45 m(148 ft).

Yes, the mechanical design uses an installation surface mount box (SMB) and easy cable management. It features a click-and-rotate mechanism on the mounting plate that requires no hardware to secure the camera to the housing. Power-over-Ethernet (PoE) support further simplifies deployment by using a single cable for both power and network connectivity.

The device incorporates a built-in Secure Element (SE) hardware providing main Trusted Platform Module (TPM) functionality to ensure the highest levels of data security and privacy. It supports three-level password protection, authenticated secure uploads, and Public Key Infrastructure (PKI) for superior protection against malicious attacks.

The robust design is rated to IP66, NEMA Type 4X, and IK10 standards, safeguarding the device against rain and dust while offering high resistance against vandalism and tampering. It operates reliably in a wide ambient temperature range between -40 degrees Celsius and +55 degrees Celsius.
