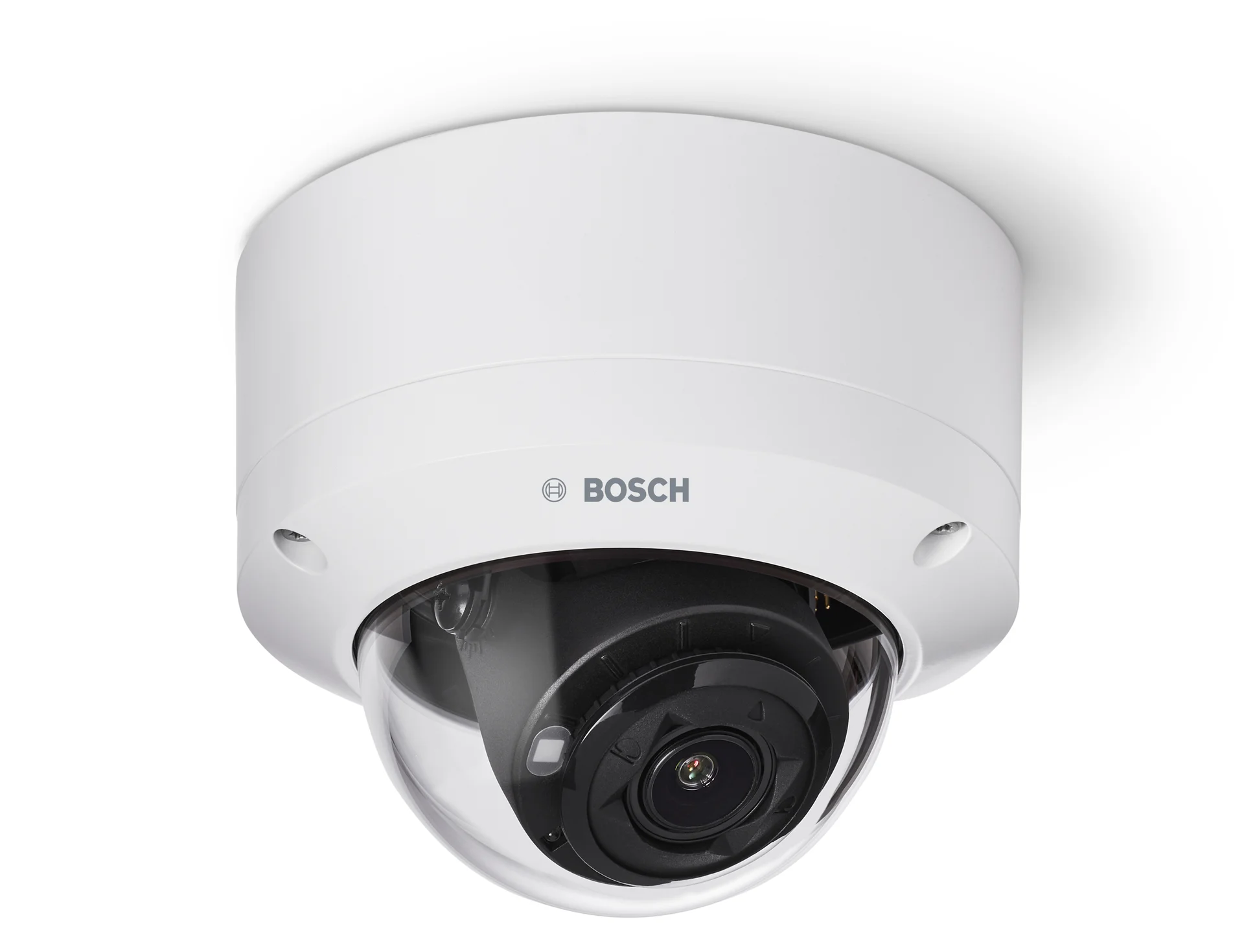

Fixed dome 5MP HDR 3.2-10.5mm IP66 IR IO
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
Commercial Type No: NDE-5703-AL
5 MP for highly detailed images
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
Product Overview
Minimize false triggers with intelligent detection
Built-in IVA Pro Buildings reliably detects and classifies people and vehicles in crowded scenes, filtering out environmental noise to help operators focus on real events.
Maintain clear visibility in extreme lighting
Starlight camera technology and High Dynamic Range ensure you see every critical detail in both bright sunlight and near-zero light conditions.
Continuous awareness in near total darkness
An integrated intelligent IR illuminator automatically adjusts to the scene, providing clear visibility up to 45 m (148 ft) without over-exposing nearby objects.
Reduce installation time and deployment friction
A modular design with a hardware-free click-and-rotate mechanism allows integrators to mount and configure the device quickly, minimizing disruption to daily operations.
Secure data from capture to delivery
A built-in Secure Element and advanced encryption standards ensure your video data remains protected against malicious attacks and unauthorized access.
Key Specifications
| Sensor type | 1/2.7 inch CMOS |
|---|---|
| Resolution | 5 MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 to 10.5 mm |
| Horizontal field of view (°) | 96° - 29° |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| IR illumination range | 45 m |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the Fixed dome 5MP HDR 3.2-10.5mm IP66 IR IO
The camera comes with IVA Pro Buildings pre-installed, bringing highly reliable deep-learning based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested. It is extremely resistant to false triggers caused by challenging environments with rain, wind, snow, hail, and shadows. Configuration effort is minimized by removing the need for manual calibration.
The camera utilizes starlight camera technology and High Dynamic Range to ensure you see every detail in both bright and dark areas of the scene. Additionally, a built-in intelligent IR illuminator provides high performance in extreme low-light environments, optimizing the scene with a viewing distance of up to 45 meters (148 feet).
Yes, the camera is designed for reliable operation across a wide ambient temperature range of -40 ºC up to +55 ºC (-40 ºF up to +131 ºF). Its robust design is rated to IP66, NEMA 4X, and IK10 standards, safeguarding the camera against rain and dust while offering proven protection against vandalism and tampering.
Special measures have been put in place to ensure the highest level of security for device access and data transport. The camera features built-in Secure Element hardware providing main Trusted Platform Module (TPM) functionality. Together with Public Key Infrastructure (PKI) support and advanced certificate handling, it ensures the highest levels of data security and privacy protection.
The modular structure design uses a click and rotate mechanism on the mounting plate that requires no hardware to secure the camera to the housing. Supported by Power-over-Ethernet (PoE) for a single-cable connection and an Automatic Varifocal (AVF) feature, installers can easily adjust the zoom and focus position without ever opening the camera.
