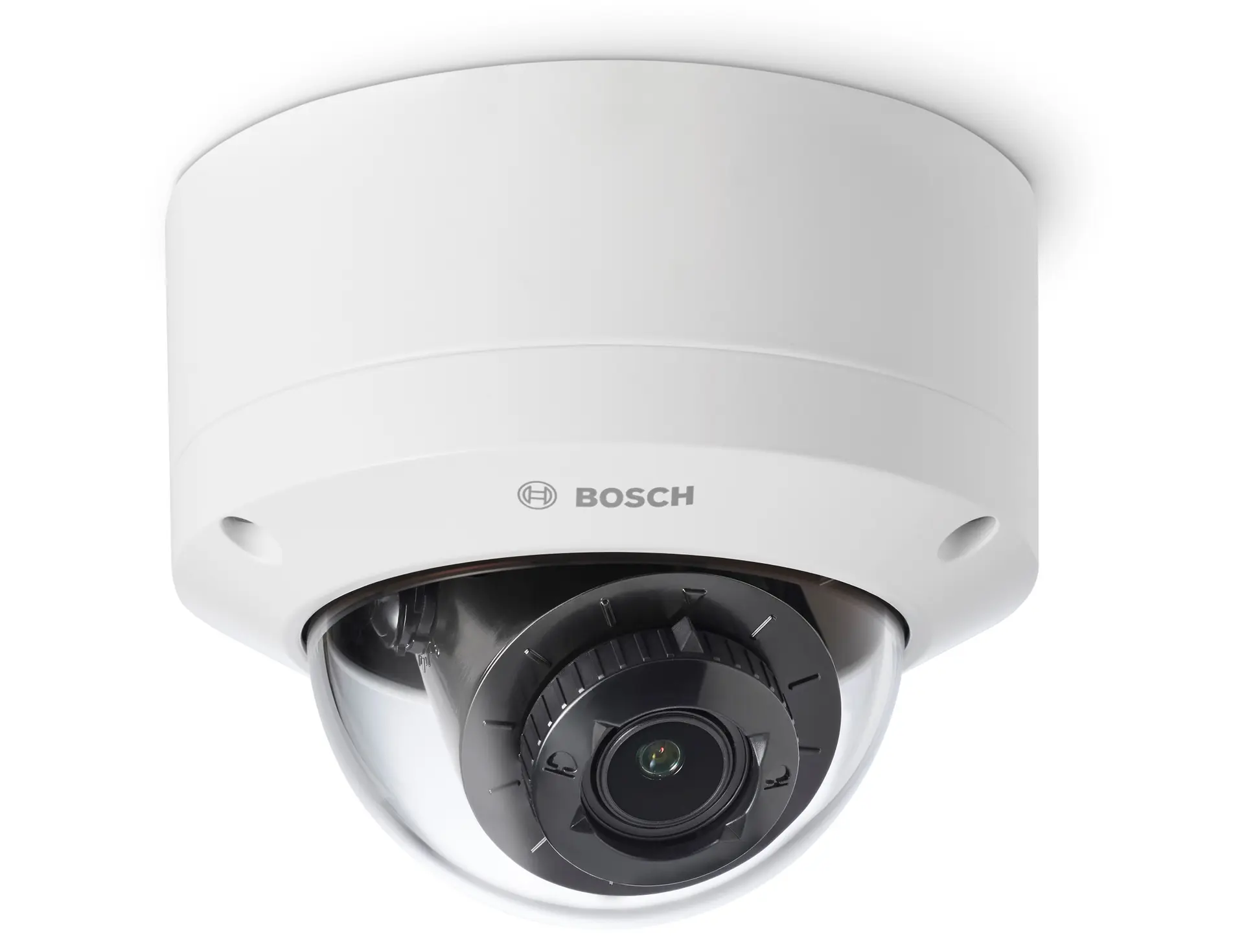

FLEXIDOME outdoor 5100i

FLEXIDOME outdoor 5100i

The FLEXIDOME outdoor 5100i family features built-in IVA Pro analytics, starlight technology, two-way audio, and robust weather resistance for a wide range of outdoor applications.

  • Up to 4K ultra HD for highly detailed image

  • Starlight camera technology with excellent low-light performance

  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested

  • High Dynamic Range to see every detail in both bright and dark areas of the scene

Product Overview

Detect what matters with deep learning

Built-in IVA Pro Buildings reliably detects and classifies persons and vehicles while filtering out environmental noise like moving trees or rain.

Capture essential detail even in challenging light

Starlight technology and High Dynamic Range ensure you can clearly identify objects and individuals in both bright sunlight and low light.

Maintain awareness in the toughest weather

Safeguarded against rain, dust, and vandalism, the rugged housing meets IK10 and IP66 for reliable operation across outdoor temperatures.

Simplify deployment to reduce installation time

A simple click and rotate mechanism combined with remote varifocal adjustment makes physical installation and focusing fast and effortless.

Keep critical data safe

Built-in Secure Element hardware and advanced certificate handling ensure your video streams and device access remain completely cyber-resilient.

Key Specifications

Key specifications
Sensor type1/2.8 inch CMOS ; 1/2.7-inch CMOS
Resolution2MP ; 5MP ; 8MP
Low light technologystarlight
WDR technologyHDR
Frame rate (fps)1 – 60 fps (2MP/5MP) ; 1 – 30 fps (8MP)
Lens focal length (mm)3.2 to 10.5 mm
Horizontal field of view (°)105° – 31° (2MP, 8MP) ; 96º - 29º (5MP)
Field of view adjustmentMotorized zoom/focus
Video compressionH.264 / AVC; H.265 / HEVC; M-JPEG
IP ratingIP66 and NEMA Type 4X
Impact protectionIK10 ; NEMA 4X
Operating temperature-40 °C – 55 °C (-40 °F – 131 °F)
Analytics (built-in)IVA Pro Buildings ; IVA Pro Privacy
Analytics (available)IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics

Frequently Asked Questions

Common questions about the FLEXIDOME outdoor 5100i

The camera comes pre-installed with IVA Pro Buildings, delivering highly reliable deep-learning based detection. It is extremely resistant to false triggers caused by rain, moving trees, snow, hail, and water reflections, ensuring operators only receive relevant alerts and can forensically search recordings with high efficiency.

Designed for low-light environments, the camera utilizes starlight technology and High Dynamic Range (HDR). This multiple-exposure process captures details in both bright highlights and dark shadows, allowing users to easily distinguish objects and features, such as faces with bright backlight, regardless of lighting conditions.

The modular structure design uses a click and rotate mechanism that requires no hardware to secure the camera to its housing. Additionally, configuration is minimized with IVA Pro by removing the need for calibration, and the automatic varifocal feature allows installers to easily adjust the zoom position remotely.

Special measures ensure the highest level of security for device access and data transport. The camera features built-in Secure Element hardware providing Trusted Platform Module functionality, three-level password protection, and Public Key Infrastructure support to guarantee superior protection from malicious attacks.

Yes, two-way audio allows operators to communicate via an external audio line input and output. Audio detection can also be used to generate alarms, alerting security personnel quicker so they can assess the situation and act proactively.
