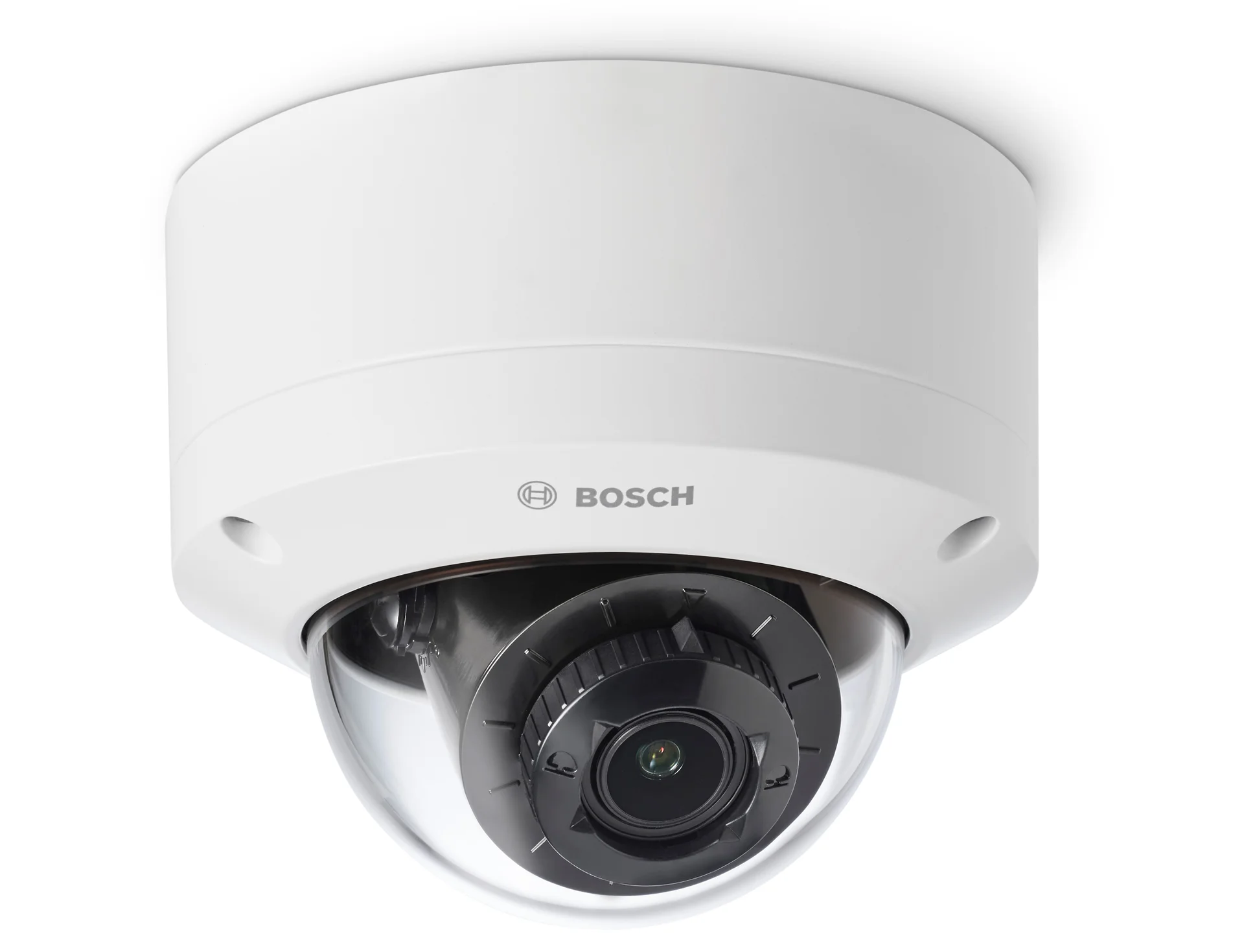

Fixed dome 8MP HDR 3.2-10.5mm IP66
The FLEXIDOME outdoor 5100i family features built-in IVA Pro analytics, starlight technology, two-way audio, and robust weather resistance for a wide range of outdoor applications.
Commercial Type No: NDE-5704-A
4K ultra HD for highly detailed images
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Product Overview
Detect what matters with deep learning
Built-in IVA Pro Buildings reliably detects and classifies persons and vehicles while filtering out environmental noise like moving trees or rain.
Capture essential detail even in challenging light
Starlight technology and High Dynamic Range ensure you can clearly identify objects and individuals in both bright sunlight and low light.
Maintain awareness in the toughest weather
Safeguarded against rain, dust, and vandalism, the rugged housing meets IK10 and IP66 for reliable operation across outdoor temperatures.
Simplify deployment to reduce installation time
A simple click and rotate mechanism combined with remote varifocal adjustment makes physical installation and focusing fast and effortless.
Keep critical data safe
Built-in Secure Element hardware and advanced certificate handling ensure your video streams and device access remain completely cyber-resilient.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 8 MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 to 10.5 mm |
| Horizontal field of view (°) | 105° – 31° |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Frequently Asked Questions
Common questions about the Fixed dome 8MP HDR 3.2-10.5mm IP66
The camera utilizes starlight technology and High Dynamic Range to deliver exceptional 4K ultra HD clarity. This combination ensures highly detailed images, allowing operators to easily distinguish objects and features, such as faces with bright backlight, even in extreme low-light conditions.
The camera comes pre-installed with IVA Pro Buildings, which provides highly reliable, deep learning-based detection and tracking of persons and vehicles. It is extremely resistant to false triggers caused by challenging environments, such as rain, snow, or moving trees, ensuring accurate real-time understanding without the need for manual calibration.
Yes, the camera features a robust design rated to IP66, NEMA 4X, and IK10 standards. It operates reliably across a wide ambient temperature range from -40 °C to +55 °C (-40 °F to +131 °F), offering protection against rain, dust, vandalism, and tampering in demanding environments.
The modular structure uses a click-and-rotate mechanism that requires no hardware to secure the camera to the housing. Combined with an Automatic Varifocal (AVF) lens for remote zoom and focus adjustments, Power-over-Ethernet (PoE) support, and the Project Assistant app for wireless configuration, the system significantly reduces installation time and effort.
The camera incorporates a built-in Secure Element (SE) hardware providing Trusted Platform Module (TPM) functionality to ensure the highest levels of data security and privacy protection. It supports three-level password protection, HTTPS browser access, Public Key Infrastructure (PKI), and authenticated secure firmware uploads to guarantee superior protection against malicious attacks.
