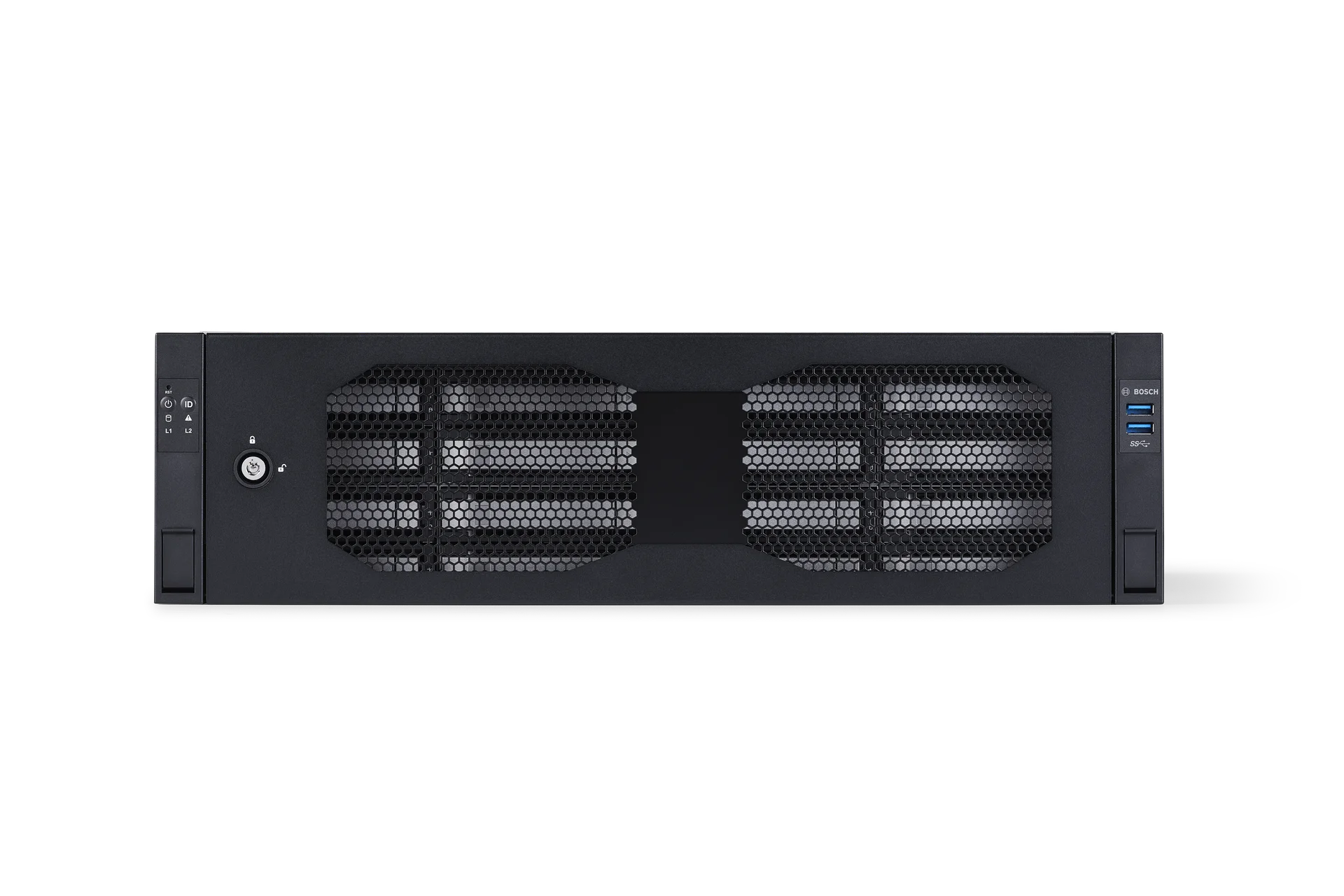

Management appliance, 3U 16X18TB
Delivering high-capacity video recording and seamless management, this out-of-the-box 3U 16 x18 TB appliance empowers security teams to act with confidence. Built-in RAID-5 protection and advanced BVMS integration ensure continuous, real-time access to critical video
Commercial Type No: DIP-74GI-16HD
RAID-5 protected (standard configuration), all-in-one, fully featured BVMS‑based video recording and management solution for up to 256 channels
Out-of-the-box IP video recording with 16 x 18TB storage capacity pre-installed
Robust, secure operation — instant real time access to video
BVMS‑based advanced user and alarm management
DIVAR IP System Manager for operation mode selection, software setup and upgrades
Product Overview
Secure video retention with RAID-5/ RAID-6 protection
Enterprise-rated, hot-swappable hard drives deliver up to 288TB of secure storage to ensure critical footage remains protected and accessible.
Instant real-time video access anywhere
Dynamic Transcoding optimizes high-resolution streams for low-bandwidth connections, giving operators immediate visual clarity when making critical decisions.
Simplify deployment with centralized system management
The intuitive DIVAR IP System Manager guides IT teams through wizard-based setup, operation mode selection, and single-step software upgrades to minimize installation friction.
Accelerate response with intelligent alarm management
Operating on a fully featured BVMS platform, the appliance seamlessly integrates Intelligent Video Analytics and system-wide event monitoring to help teams understand context and act decisively.
Ensure maximum uptime with proactive monitoring
Secure connectivity to the Remote Portal enables IT teams to perform remote health diagnostics, inventory management, and updates from a single centralized interface.
Key Specifications
| Form factor | 3U rack-mounted |
| BVMS licensing | BVMS Plus |
| Max recording bandwidth | 550 Mbps |
| Max IP camera channels | 256 |
| Maximum number of HDDs | 16 |
| Data storage | 16X18TB |
| RAID support | RAID 5 , RAID 6 (optional) |
| Video outputs | 2 x HDMI |
| Management port | 1 x BMC port |
| Operating system | Windows Server IoT 2022 for Storage Standard |
Frequently Asked Questions
Common questions about the Management appliance, 3U 16X18TB
The system arrives ready out-of-the-box with 288 TB (16 x 18 TB) of pre-installed storage capacity. This eliminates the need for manual drive configuration and complex hardware setup, allowing teams to immediately begin recording and managing IP video across up to 256 channels without deployment delays.
Built for robust and secure operation, the appliance features RAID-5 data protection as a standard configuration. This safeguards video records against potential hard drive failures, ensuring that security personnel maintain continuous, instant real-time access to critical footage when it matters most.
Operating as a fully featured, BVMS-based platform, the system delivers advanced user and alarm management. This centralized control empowers operators to quickly understand the context of an event, manage alarms efficiently, and act with confidence to resolve incidents.
The appliance includes the DIVAR IP System Manager, a dedicated utility designed to streamline continuous operations. It provides a straightforward interface for operation mode selection, routine software setup, and seamless system upgrades, minimizing friction for IT and security administrators.
By providing a highly reliable, high-capacity foundation for video recording, the system ensures that AI-driven analytics and metadata captured at the edge are securely stored and instantly accessible. This continuous visibility allows organizations to analyze patterns, understand spatial context, and improve operational outcomes over the long term.
