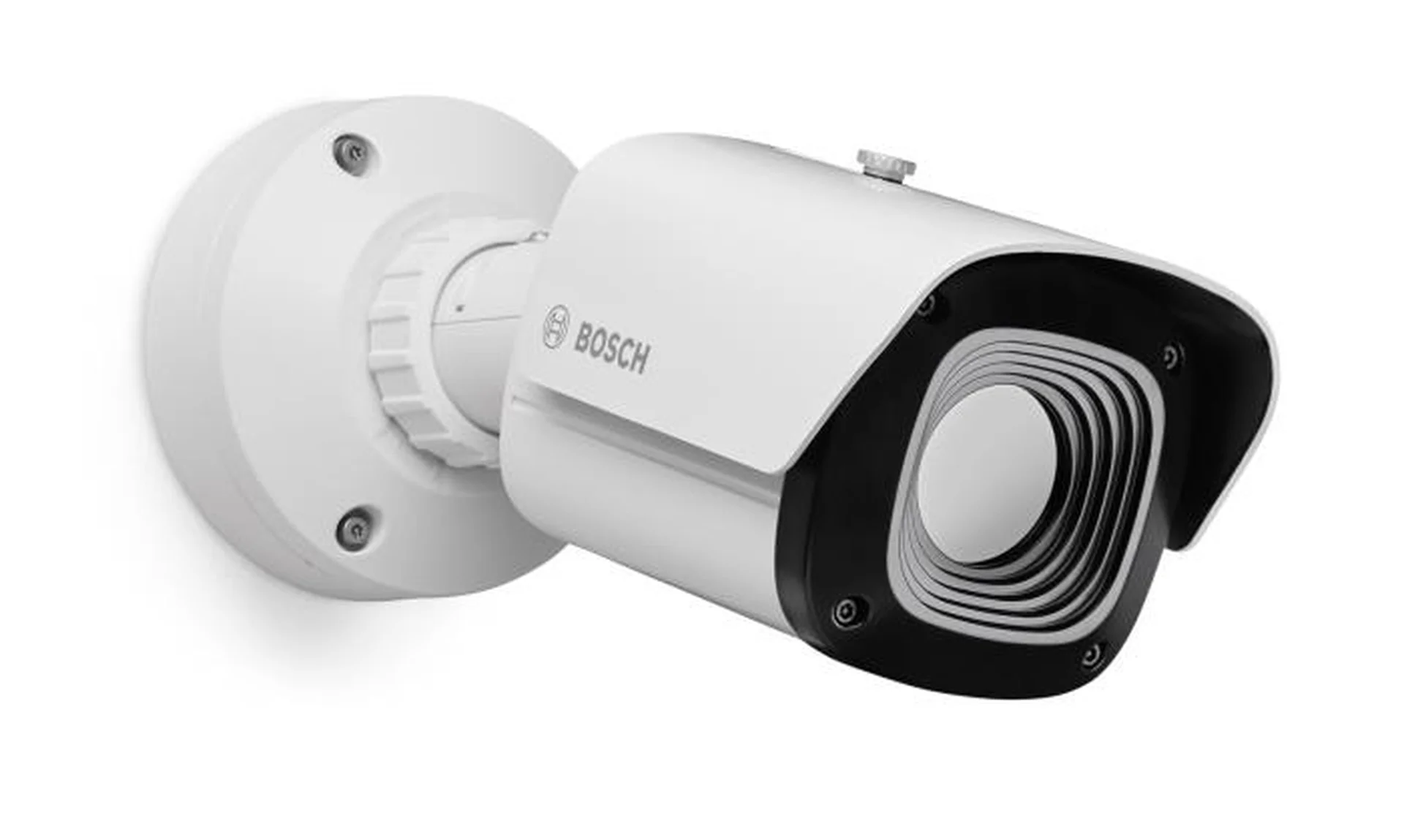

Bullet thermal VGA 70° 30Hz
The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.
Commercial Type No: NBT-8701-F06VF
Maximum detection range in zero lux condition for large-scale perimeter protection.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
High resolution VGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal camers with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 fps - 30 fps |
| Lens focal length (mm) | 6 mm |
| Horizontal field of view (°) | 70° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C - 55 °C (-40 °F - 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the Bullet thermal VGA 70° 30Hz
The camera incorporates an uncooled microbolometer to deliver high-resolution VGA thermal imaging. By visualizing heat signatures and subtle temperature differences, it provides a maximum detection range in zero-lux conditions. This ensures reliable, long-distance visibility across large-scale perimeters, even when visual light is entirely absent or compromised by smoke and fog.
The DINION thermal 8100i - VGA features Intelligent Video Analytics Pro (IVA Pro) Perimeter pre-installed. This deep learning-based analytics application reliably detects and tracks persons and vehicles while filtering out environmental distractions. The combination of thermal imaging and IVA Pro Perimeter helps achieve an ultra-low false alarm rate by ignoring triggers from rain, wind, moving trees, headlights, and small animals.
The camera utilizes AI-based 3D autocalibration, resulting in a fast and simple installation. Physically, it follows a proven 3-step installation process and features a patented swivel with a large ball joint. This allows installers to easily position the camera with one hand and secure the locking ring with the other, completely tool-free.
Yes, the rugged housing is rated to IP66, IP67, and IK10 standards, providing highly reliable operation against rain, dust, and tampering. It also features a window defroster and an interior camera heater, enabling the device to cold start and maintain clear image details in ambient temperatures ranging from -40 degrees Celsius (-40 degrees Fahrenheit) up to 55 degrees Celsius (131 degrees Fahrenheit).
The cybersecure camera is designed with an Embedded Login Firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support to protect against malicious attacks. Device access and data transport are safeguarded using state-of-the-art TLS 1.2 protocols and AES encryption with 256-bit keys, ensuring that critical video data remains secure from capture to delivery.
