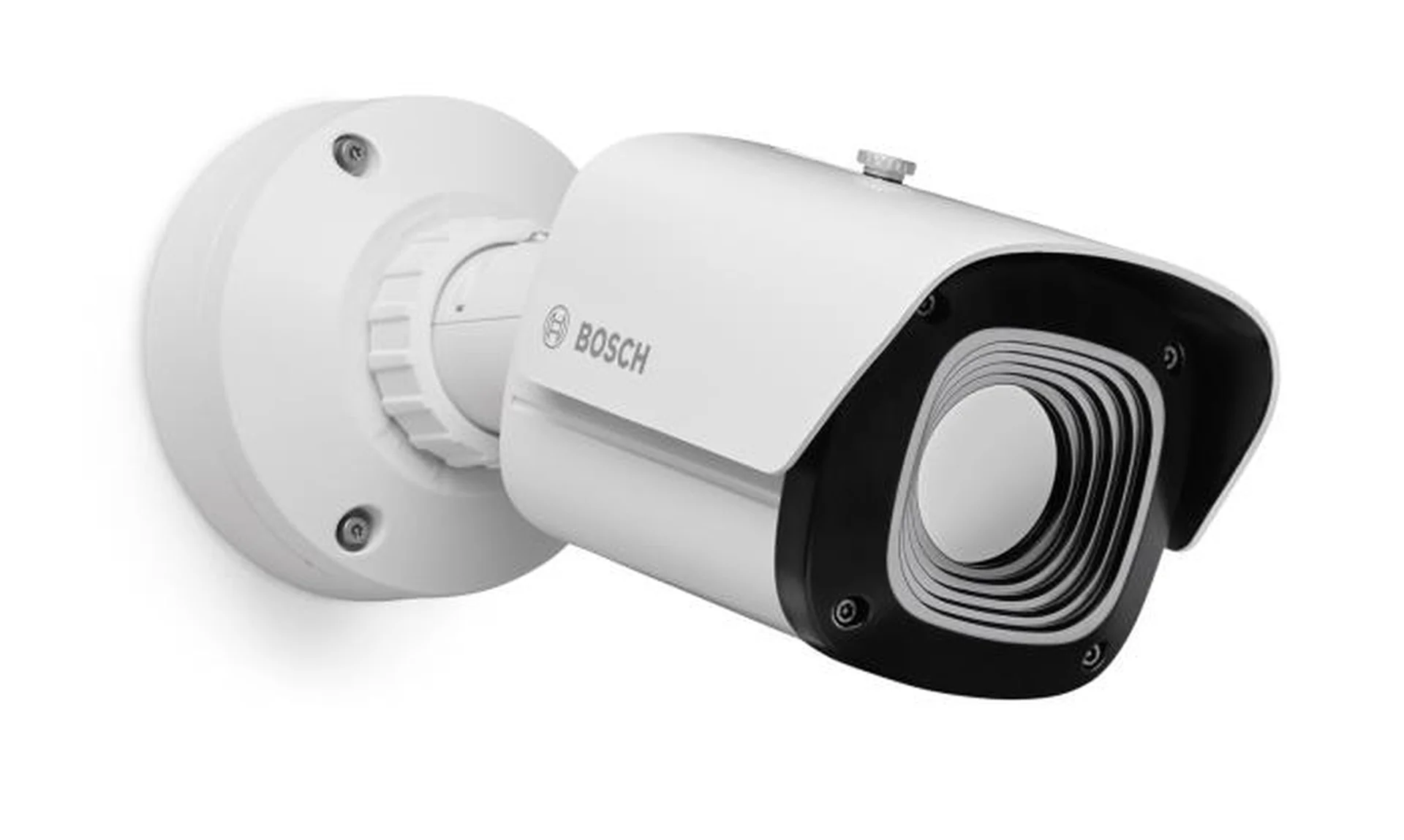

DINION thermal 8100i - VGA
The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.
Maximum detection range in zero lux condition for large-scale perimeter protection.
Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
High resolution VGA thermal imaging.
Rugged housing and cybersecure.
AI-based (3D) autocalibration resulting in a fast and simple installation.
Product Overview
Detect what matters with near-zero false alarms
Thermal camers with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.
Longest reliable detection
Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.
Simplify deployment with AI autocalibration
AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.
Ensure reliability in extreme environments
A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.
Protect critical data from cyber threats
A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.
Key Specifications
| Sensor type | Uncooled microbolometer (VOx) |
| Resolution | 640 x 480 |
| Sensor technology | Thermal imaging |
| WDR technology | Thermal sensitivity: < 30 mK at 25 °C (77 °F) |
| Frame rate (fps) | 1 – 30 fps |
| Lens focal length (mm) | 6 mm ; 14 mm ; 25 mm ; 42 mm |
| Horizontal field of view (°) | 70° ; 31° ; 17° ; 10° |
| Field of view adjustment | Fixed lens |
| Video compression | H.264; H.265; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
Frequently Asked Questions
Common questions about the DINION thermal 8100i - VGA
By detecting heat signatures instead of visible light, the camera delivers high-resolution VGA thermal imaging. This allows operators to monitor large perimeters and identify potential threats in zero-lux conditions, smoke, fog, or heavy rain.
A key advantage of the DINON thermal 8100i is the combination of Deep Neural Network (DNN)-based person & vehicle detectors with proven motion and foreground/background analysis. This advanced approach improves the detection accuracy while reducing the false alarm caused by animals, lines, vegetation, shadows and other environmental factor.
No. The camera utilizes AI-based 3D autocalibration to streamline the installation process. This ensures precise setup with minimal effort, allowing integrators to deploy the system quickly and accurately across expansive sites.
Designed to be secure by design, the camera includes an onboard Trusted Platform Module (TPM) and an Embedded Login Firewall. It supports 802.1x network authentication and advanced certificate handling, ensuring that data transport and device access remain protected against malicious attacks.
Yes, the camera is built with a rugged, corrosion-resistant aluminum housing rated to IP66, IP67, and IK10 standards. It features an interior heater and a window defroster, enabling reliable operation in temperatures ranging from -40 °C to +55 °C (-40 °F to +131 °F).
In this family
DINION thermal 8100i - VGA
:quality(75))

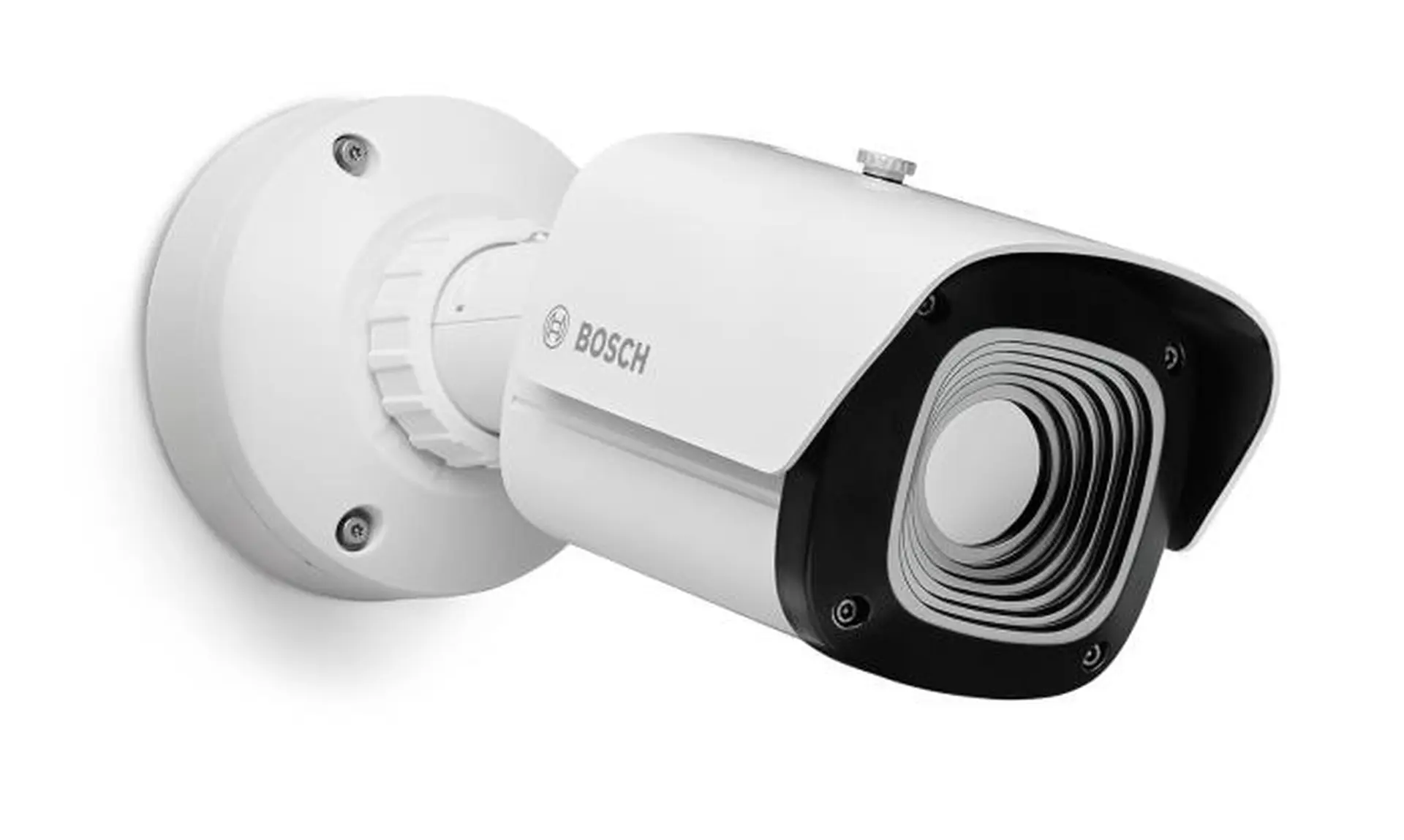

Bullet thermal VGA 70° 30Hz
