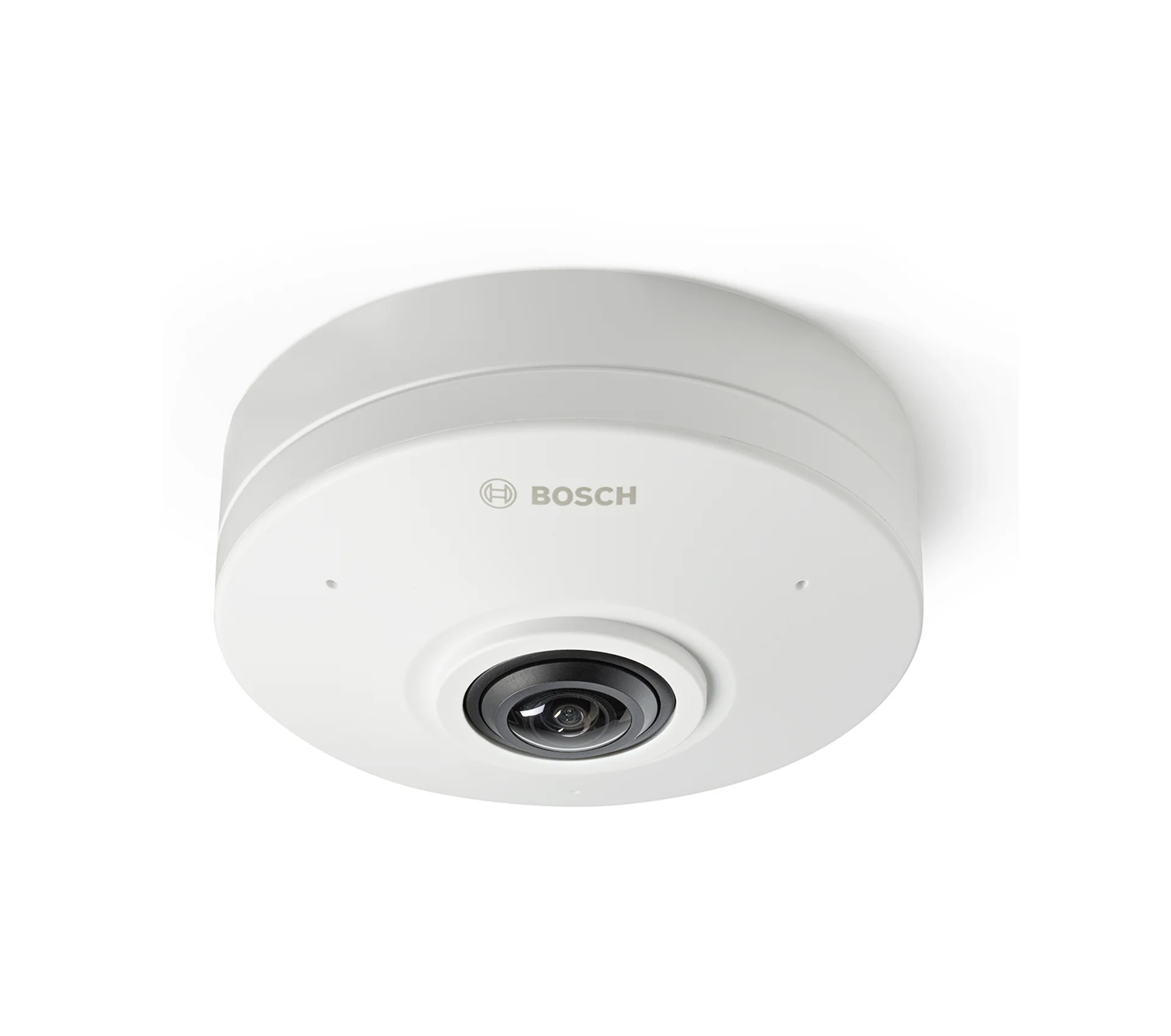

Fixed dome 6MP 360º
The FLEXIDOME panoramic 5100i family are discreet and aesthetic panoramic cameras for indoor surveillance, offering exceptional 360-degree visibility with 6- or 12-megapixel detail, edge dewarping, and built-in IVA Pro visual analytics and audio analytics.
Commercial Type No: NDS-5703-F360
360° panoramic overview in 6MP resolution without blind spots
High Dynamic Range to see every detail in both bright and dark areas of the scene
Edge or client-side dewarping for easy integration and flexible viewing and recording
Built-in IVA Pro Buildings, IVA Pro Perimeter and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
Compact design for unobtrusive indoor use with quick and easy installation and set-up
Product Overview
Eliminate blind spots with complete coverage
A 360-degree panoramic lens provides continuous situational awareness across large indoor spaces from a single device.
Automate detection with intelligent video analytics
Built-in IVA Pro reliably tracks and classifies people and vehicles to provide real-time understanding while minimizing false alarms.
Detect incidents beyond the visual field
Integrated audio analytics identify specific sound signatures like gunshots or alarms to give operators early warnings before a visual threat appears.
Maintain clear visibility in challenging lighting
High Dynamic Range technology ensures operators can easily distinguish critical details in both highly illuminated and shadowed areas.
Simplify deployment with an unobtrusive design
The compact, aesthetic housing blends into retail or commercial environments and offers quick setup with simple calibration.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 6MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 1.155 mm fixed |
| Field of view adjustment | E-PTZ |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| Impact protection | IK08 |
| Operating temperature | -10 °C – 45 °C (14 °F – 113 °F) |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Perimeter ; Intelligent Audio Analytics |
| Analytics (available) | IVA Pro Privacy |
Frequently Asked Questions
Common questions about the Fixed dome 6MP 360º
The camera features a stereographic, panoramic lens that provides full 360-degree coverage without blind spots. By delivering a 6MP resolution panoramic overview, it ensures complete situational awareness for wide-area indoor surveillance, allowing security teams to see clearly and understand context in real time.
To facilitate system integration and flexible viewing, the camera offers both edge dewarping inside the device and client-side dewarping on an external platform. Edge dewarping provides three separate video channels simultaneously—including the full image circle, a dewarped view mode, and an E-PTZ channel—allowing operators to focus on specific areas while recording the complete scene.
The camera includes built-in IVA Pro Buildings and IVA Pro Perimeter to reliably detect, track, and analyze objects while minimizing false alarms. It also features Intelligent Audio Analytics, which uses a built-in microphone array to identify target sounds, triggering relevant alerts so operators can respond to critical events earlier.
The camera utilizes High Dynamic Range (HDR) based on a multiple-exposure process to capture more details in both the highlights and shadows of the same scene. This ensures operators can see every detail and easily distinguish objects or faces, even in areas with bright backlight.
The camera incorporates a built-in Secure Element providing Trusted Platform Module (TPM) functionality to ensure the highest levels of data security. Supported by Public Key Infrastructure (PKI) and 802.1x network authentication with advanced encryption, the system delivers reliable protection against cyber threats, keeping critical video data secure.
