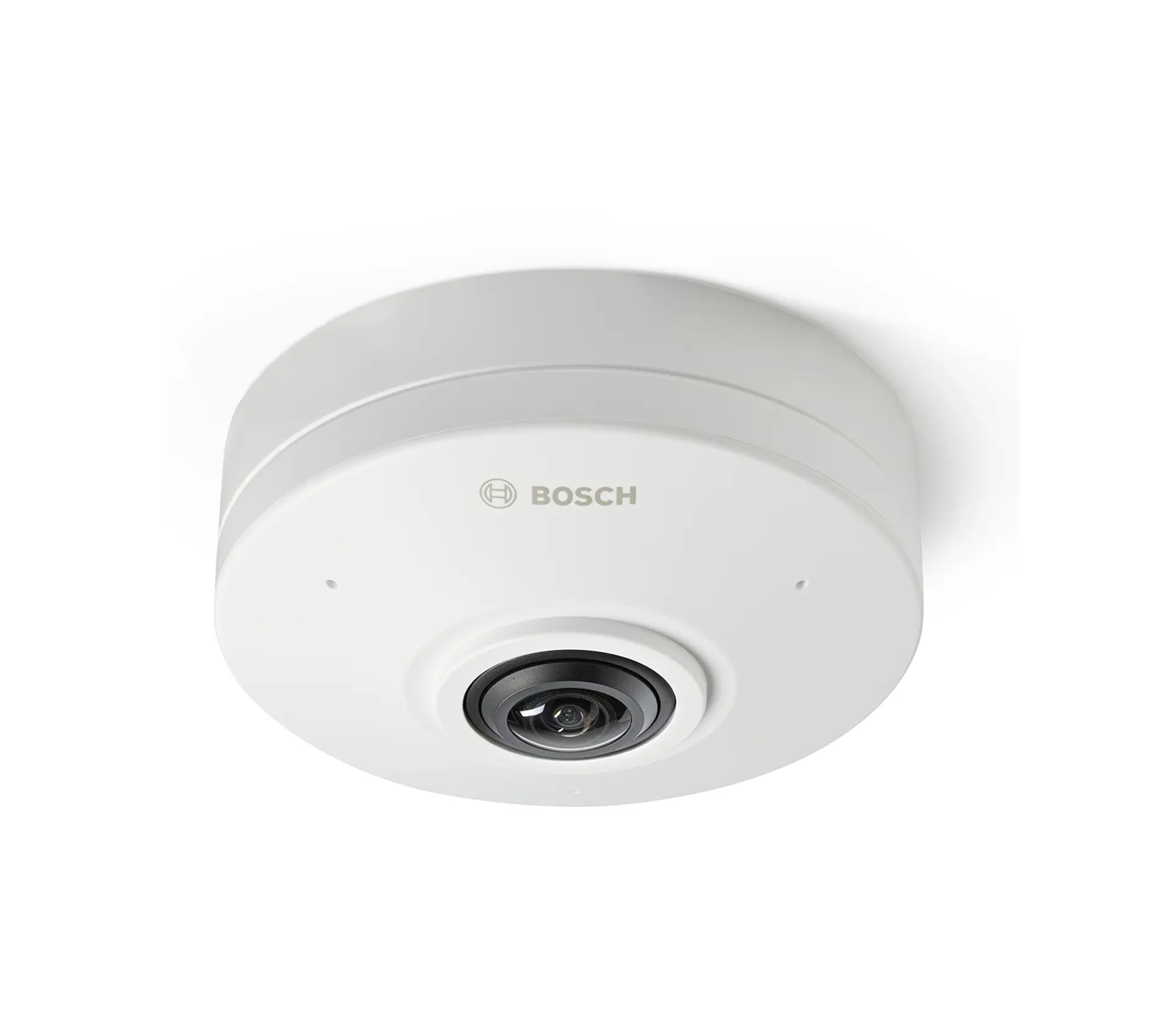

FLEXIDOME panoramic 5100i

The FLEXIDOME panoramic 5100i family are discreet and aesthetic panoramic cameras for indoor surveillance, offering exceptional 360-degree visibility with 6- or 12-megapixel detail, edge dewarping, and built-in IVA Pro visual analytics and audio analytics.

360° panoramic overview in 6MP and 12MP sensor resolution without blind spots
High Dynamic Range to see every detail in both bright and dark areas of the scene
Edge or client-side dewarping for easy integration and flexible viewing and recording
Built-in IVA Pro Buildings, IVA Pro Perimeter and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
Compact design for unobtrusive indoor use with quick and easy installation and set-up

Product Catalog Download Datasheet

Product Overview

Eliminate blind spots with complete coverage

A 360-degree panoramic lens provides continuous situational awareness across large indoor spaces from a single device.

Automate detection with intelligent video analytics

Built-in IVA Pro reliably tracks and classifies people and vehicles to provide real-time understanding while minimizing false alarms.

Detect incidents beyond the visual field

Integrated audio analytics identify specific sound signatures like gunshots or alarms to give operators early warnings before a visual threat appears.

Maintain clear visibility in challenging lighting

High Dynamic Range technology ensures operators can easily distinguish critical details in both highly illuminated and shadowed areas.

Simplify deployment with an unobtrusive design

The compact, aesthetic housing blends into retail or commercial environments and offers quick setup with simple calibration.

Key Specifications

Sensor type	1/1.8 inch CMOS (6MP) ; 1/2.3 inch CMOS (12MP)
Resolution	6MP ; 12MP
WDR technology	HDR
Frame rate (fps)	1 fps – 30 fps
Lens focal length (mm)	1.155 mm fixed (6MP) ; 1.26 mm fixed (12MP)
Field of view adjustment	Fixed lens (360° panoramic)
Video compression	H.264 / AVC; H.265 / HEVC; M-JPEG
Impact protection	IK10
Operating temperature	-10 °C – 45 °C (14 °F – 113 °F)
Analytics (built-in)	IVA Pro Buildings ; IVA Pro Perimeter ; Intelligent Audio Analytics
Analytics (available)	IVA Pro Privacy

Frequently Asked Questions

Common questions about the FLEXIDOME panoramic 5100i

The camera captures a circular image and uses advanced edge or client-side dewarping software to transform it into distortion-free, rectangular views. Operators can easily monitor specific regions of interest using electronic pan, tilt, and zoom (E-PTZ) without losing full situational awareness or drawing attention to the camera.

The camera features built-in IVA Pro Buildings and IVA Pro Perimeter to reliably detect, track, and classify objects like people and vehicles. These analytics filter out false triggers and require minimal effort to set up, with IVA Pro Perimeter needing only the camera's mounting height for accurate 3D tracking calibration.

An integrated microphone array detects and identifies specific sound signatures, such as gunshots or environmental alarms, even when the event occurs off-camera. This AI-driven audio detection generates immediate metadata alerts, allowing security personnel to understand the context of an incident early and respond proactively without needing to record continuous audio.

Yes, the camera uses High Dynamic Range (HDR) technology to capture sharp details in both the brightest and darkest areas of the same scene. Available in 6MP or 12MP sensor resolutions, it ensures that critical details—such as faces against bright backlights—remain clear and identifiable.

The camera is secure by design, featuring a built-in Secure Element and Trusted Platform Module (TPM) functionality to protect data and privacy. It supports encrypted secure uploads, HTTPS browser access, and advanced certificate handling, ensuring a cyber-resilient system from capture to delivery.
