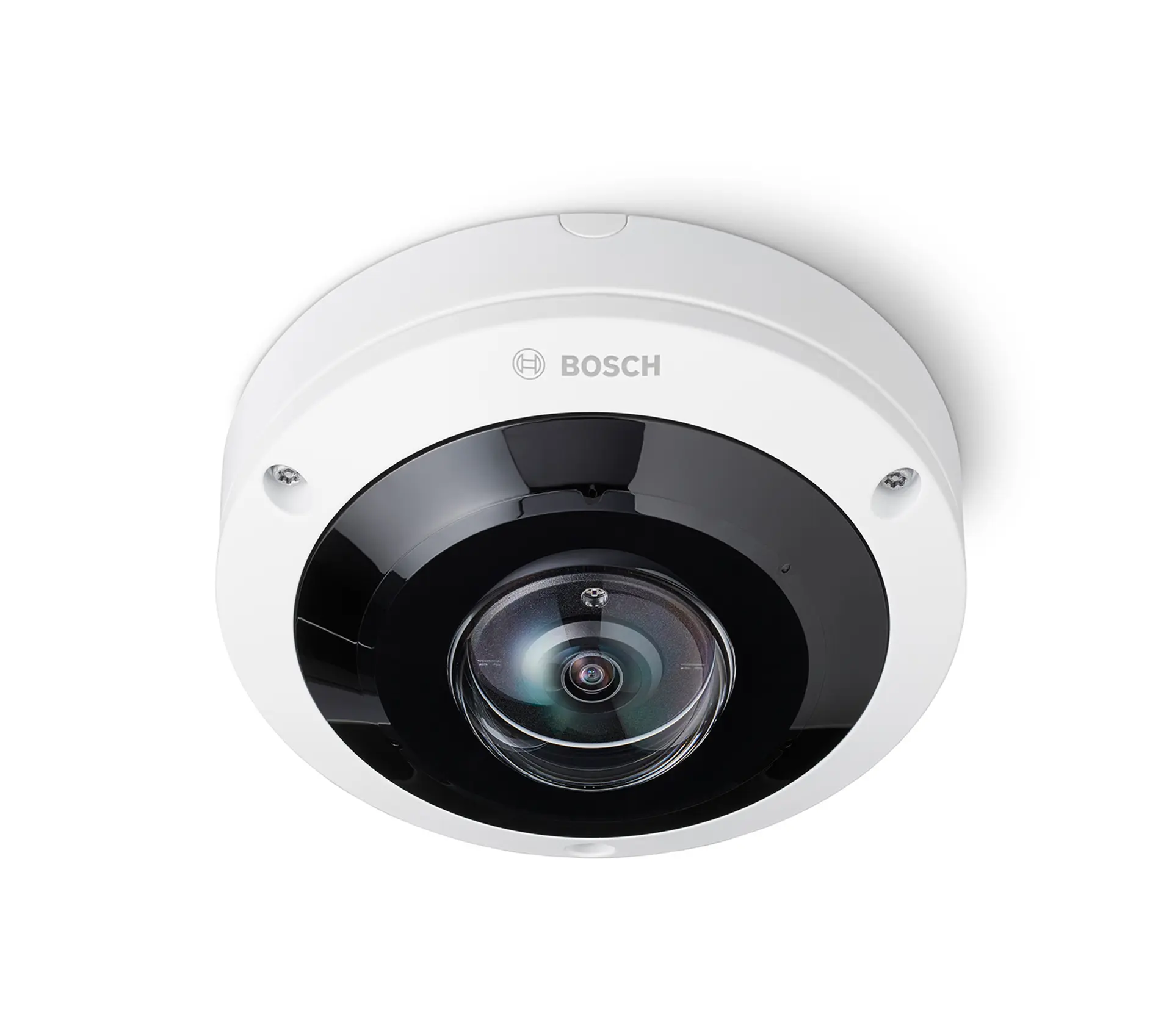

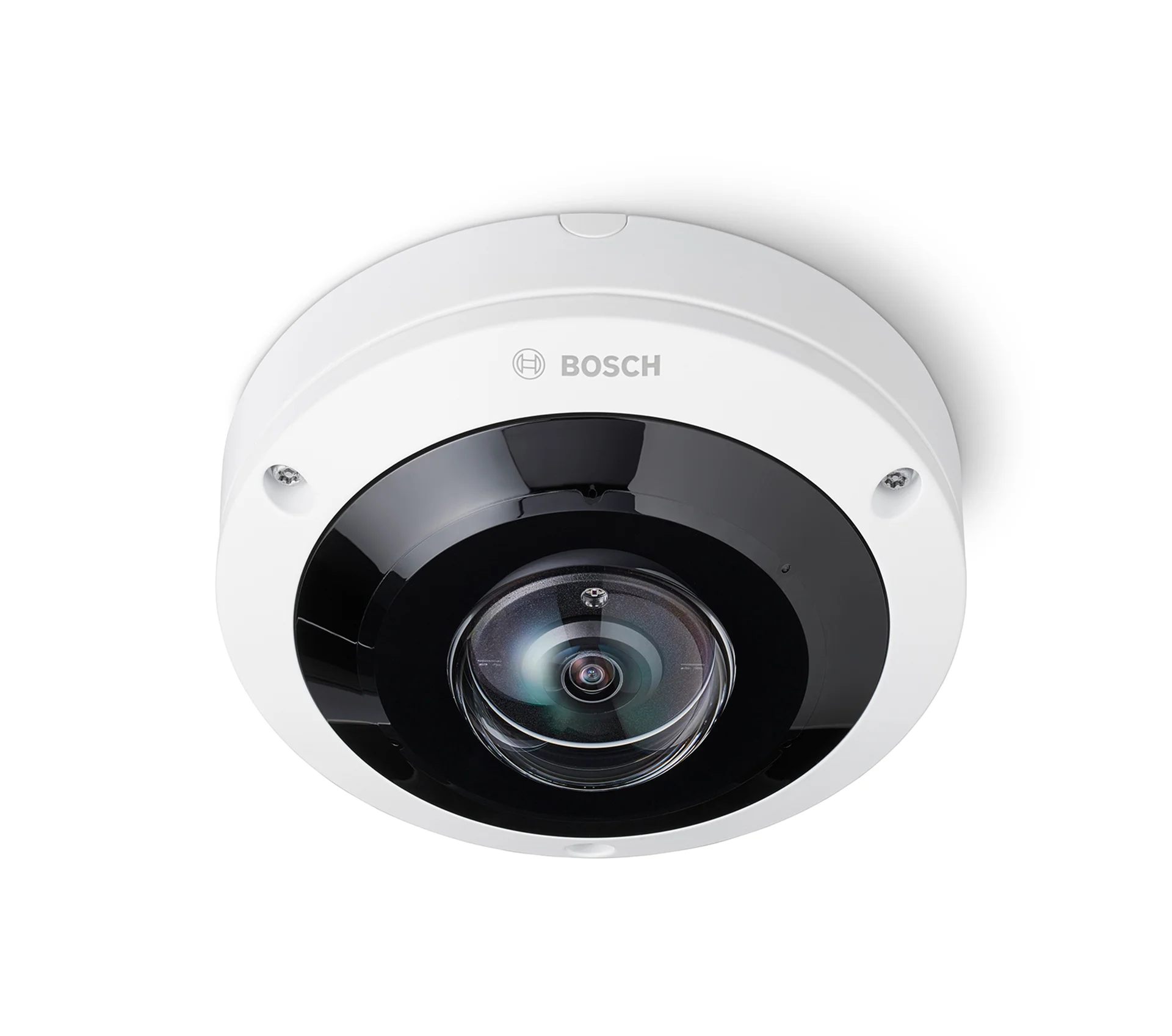

FLEXIDOME panoramic 5100i IR

The FLEXIDOME panoramic 5100i IR family delivers 360-degree visibility without blind spots and integrated IR and High Dynamic Range for effective monitoring in all lighting conditions. Intelligent Video Analytics and Intelligent Audio Analytics support a wide range of indoor and outdoor applications.

360° panoramic overview in 6MP and 12MP sensor resolution without blind spots
Optimized for all lighting conditions with integrated IR and High Dynamic Range
Edge or client-side dewarping for easy integration and flexible viewing and recording
Built-in IVA Pro Buildings, IVA Pro Perimeter and Intelligent Audio Analytics to trigger relevant alerts and quickly retrieve data
Compact design protected against vandalism and all weather conditions

Product Catalog Download Datasheet

Product Overview

Complete 360-degree visibility

Eliminate blind spots and maintain full situational awareness across large areas with a single stereographic lens.

Intelligent real-time detection

Built-in IVA Pro Buildings and IVA Pro Perimeter automatically detect, track, and classify objects to help teams respond to genuine events faster.

Audio-driven event awareness

Intelligent Audio Analytics identifies critical sound signatures, providing an additional layer of context so operators can understand unfolding situations earlier.

Flexible distortion-free viewing

Edge or client-side dewarping transforms panoramic images into clear, rectangular views without losing the ability to record the full scene.

Reliable operation anywhere

High Dynamic Range, integrated IR illumination, and a robust IP66 and IK10 housing ensure clear video and durable performance in challenging weather and lighting.

Key Specifications

Sensor type	1/1.8 inch CMOS (6MP) ; 1/2.3 inch CMOS (12MP)
Resolution	6MP ; 12MP
WDR technology	HDR
Frame rate (fps)	1 fps – 30 fps
Lens focal length (mm)	1.155 mm fixed (6MP) ; 1.26 mm fixed (12MP)
Field of view adjustment	Fixed lens (360° panoramic)
Video compression	H.264 / AVC; H.265 / HEVC; M-JPEG
IP rating	IP66
Impact protection	IK10
Operating temperature	-40 °C – 50 °C (-40 °F – 122 °F)
IR illumination range	20 m (66 ft)
Analytics (built-in)	IVA Pro Buildings ; IVA Pro Perimeter ; Intelligent Audio Analytics
Analytics (available)	IVA Pro Privacy

Frequently Asked Questions

Common questions about the FLEXIDOME panoramic 5100i IR

The camera uses a stereographic panoramic lens to capture a complete 360-degree view of the environment. This continuous coverage ensures full situational awareness, allowing operators to monitor large areas with a single device while simultaneously utilizing high-resolution electronic pan, tilt, and zoom (ePTZ) to investigate specific details without losing the broader context.

The camera offers flexible edge or client-side dewarping, transforming circular images into distortion-free rectangular views. It provides three simultaneous video channels, allowing operators to view the full image circle, a dewarped view mode, and an ePTZ view simultaneously for comprehensive monitoring and simplified system integration.

It features built-in Intelligent Video Analytics Pro (IVA Pro) Buildings and IVA Pro Perimeter. These advanced analytics reliably detect, track, and classify objects like persons and vehicles across the entire panoramic image. By utilizing intelligent tracking throughout the full image circle, operators maintain continuous visibility without handing off tracking to another camera, reducing false alarms and simplifying movement analysis.

Equipped with a built-in microphone array, the camera utilizes Intelligent Audio Analytics to detect and classify specific sound signatures, such as T3/T4 alarms and gunshots. This audio AI generates metadata that integrates seamlessly with the video analytics stream, alerting operators to critical events even if they occur outside the camera's immediate field of view, enabling a faster and more proactive response.

Yes, the camera is optimized for all lighting environments with integrated infrared (IR) illumination and High Dynamic Range (HDR). The IR intensity is controllable across multiple zones to prevent saturation in total darkness. Additionally, the device features a rugged IP66 and IK10-rated housing, ensuring reliable operation against rain, dust, and vandalism in extreme temperatures.
