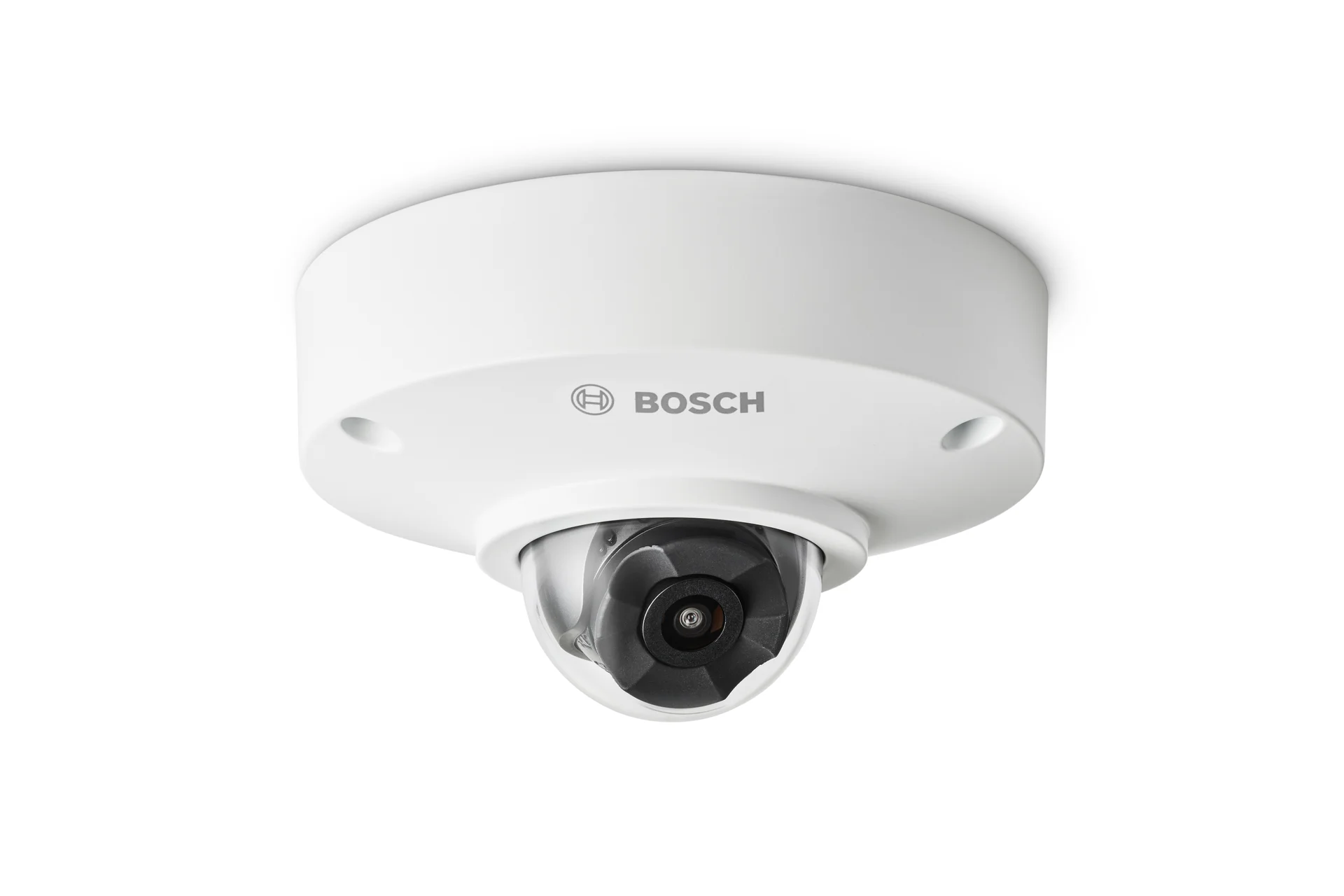

Micro dome 2MP HDR 137° IP66 IK10
The FLEXIDOME micro 3100i outdoor family offers intelligence-first security with built-in IVA Pro Buildings and a durable, low-profile vandal-resistant design.
Commercial Type No: NUE-3702-F02
Compact and robust design for discreet use with quick and easy installation and set-up
1080p HD resolution
IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Product Overview
Detect critical events with deep-learning accuracy
Built-in IVA Pro Buildings automatically tracks people and vehicles while filtering out false alarms from weather, helping your team focus on real risks.
Maintain reliable awareness in vandal-prone areas
The compact, IP66 and IK10 rated housing delivers discreet yet robust visibility in harsh outdoor environments and high-risk indoor spaces.
Capture clear details in challenging lighting
High Dynamic Range technology ensures you can easily identify features and objects across both bright and deeply shadowed areas of your scene.
Protect sensitive data with hardware-level security
A built-in Secure Element and Trusted Platform Module ensure your video data and device access remain protected against malicious cyber threats.
Simplify deployment and reduce installation time
Power-over-Ethernet capabilities and unique mounting options allow you to quickly install the camera and manage its configuration remotely without operational disruption.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 2 MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 2.49 mm |
| Horizontal field of view (°) | 137° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -30 °C – 50 °C (-22 °F – 122 °F) |
| Analytics (built-in) | Intelligent Video Analytics Pro: IVA Pro Buildings |
Frequently Asked Questions
Common questions about the Micro dome 2MP HDR 137° IP66 IK10
The camera comes with IVA Pro Buildings pre-installed, bringing reliable deep-learning based detection and tracking of persons and vehicles. It is highly resistant to false triggers caused by environmental factors like rain, wind, moving trees, and shadows, ensuring operators receive accurate alerts without the need for manual calibration.
Equipped with High Dynamic Range (HDR), the FLEXIDOME micro 3100i outdoor utilizes a multiple-exposure process to capture details in both highlights and shadows within the same scene. This dynamic range allows users to easily distinguish critical features, such as faces, even against bright backlights.
Special measures ensure the highest level of data security. The camera features a built-in Secure Element providing Trusted Platform Module (TPM) functionality. This delivers superior protection from malicious attacks, supports RSA encryption key lengths up to 4096 bits, and guarantees end-to-end encryption to keep critical video data secure.
Yes, the device features a compact and robust design engineered for demanding environments. It carries an IK10 rating for impact resistance and an IP66 rating for protection against dust and water ingress, making the housing highly durable for outdoor use and vandal-prone indoor applications.
The camera is designed for quick and easy installation, utilizing a single Power-over-Ethernet (PoE) cable for viewing, power, and control. Additionally, it features Intelligent Streaming and H.265 encoding, which deliver high-quality 1080p HD resolution video while maintaining a very low network load.
