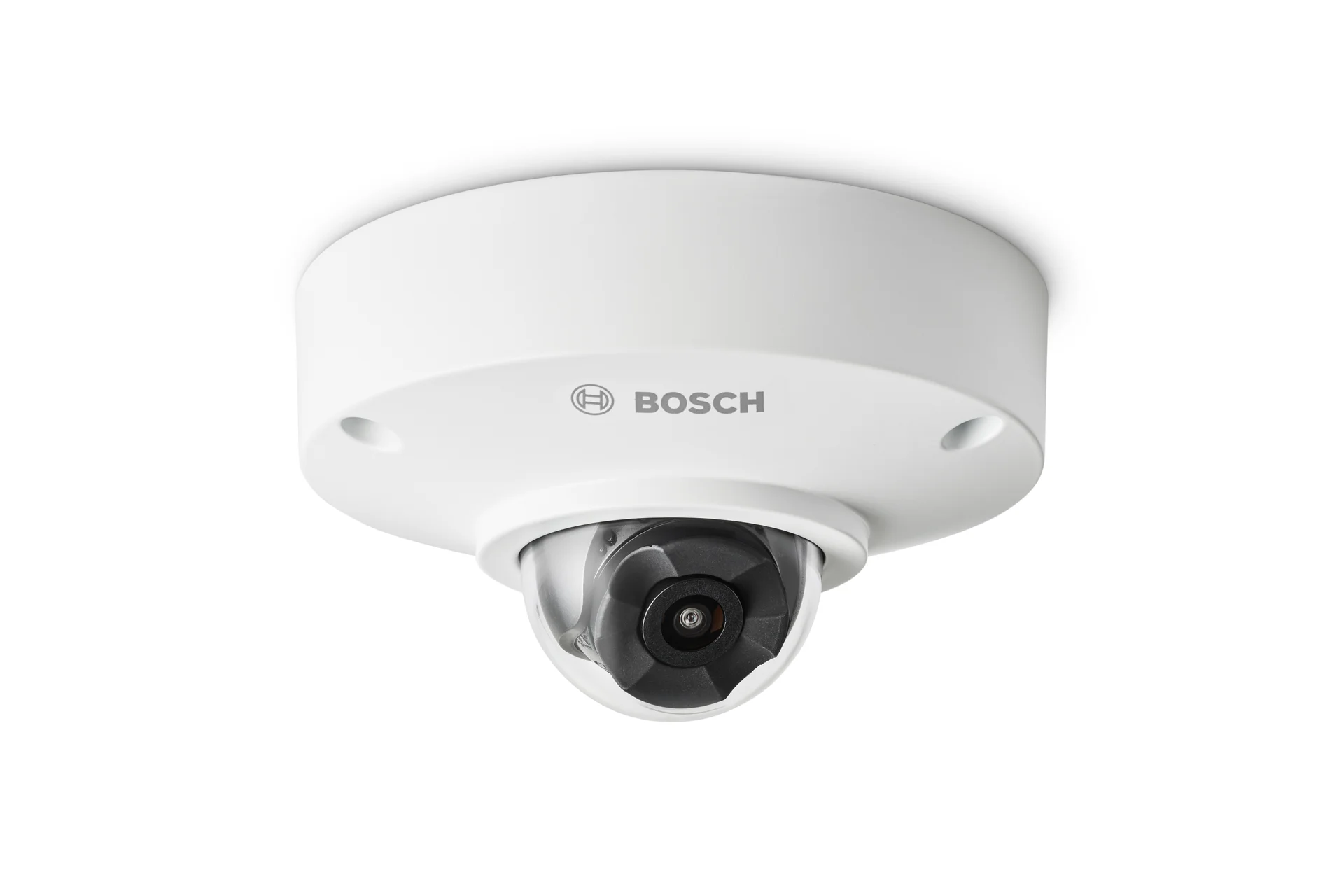

FLEXIDOME micro 3100i outdoor

FLEXIDOME micro 3100i outdoor

The FLEXIDOME micro 3100i outdoor family offers intelligence-first security with built-in IVA Pro Buildings and a durable, low-profile vandal-resistant design.

  • Compact and robust design for discreet use with quick and easy installation and set-up

  • Up to 5MP resolution

  • IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles

  • High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene

  • Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport

Product Overview

Detect critical events with deep-learning accuracy

Built-in IVA Pro Buildings automatically tracks people and vehicles while filtering out false alarms from weather, helping your team focus on real risks.

Maintain reliable awareness in vandal-prone areas

The compact, IP66 and IK10 rated housing delivers discreet yet robust visibility in harsh outdoor environments and high-risk indoor spaces.

Capture clear details in challenging lighting

High Dynamic Range technology ensures you can easily identify features and objects across both bright and deeply shadowed areas of your scene.

Protect sensitive data with hardware-level security

A built-in Secure Element and Trusted Platform Module ensure your video data and device access remain protected against malicious cyber threats.

Simplify deployment and reduce installation time

Power-over-Ethernet capabilities and unique mounting options allow you to quickly install the camera and manage its configuration remotely without operational disruption.

Key Specifications

Key specifications
Sensor type1/2.8 inch CMOS
Resolution2MP ; 5MP
WDR technologyHDR
Frame rate (fps)1 fps – 30 fps
Lens focal length (mm)2.49 mm ; 3.2 mm ; 6 mm
Horizontal field of view (°)137° ; 106° ; 58°
Field of view adjustmentFixed lens
Video compressionH.264 / AVC; H.265 / HEVC; M-JPEG
IP ratingIP66
Impact protectionIK10
Operating temperature-30 °C – 50 °C (-22 °F – 122 °F)
Analytics (built-in)Intelligent Video Analytics Pro: IVA Pro Buildings

Frequently Asked Questions

Common questions about the FLEXIDOME micro 3100i outdoor

The camera comes pre-installed with IVA Pro Buildings. This deep-learning-based software delivers reliable detection and tracking of persons and vehicles. It is highly resistant to false triggers caused by challenging environments like rain, wind, moving trees, and shadows, ensuring your team only receives alerts for events that matter without the need for manual calibration.

The device features High Dynamic Range (HDR) technology, which utilizes a multiple-exposure process to capture exceptional detail in both the highlights and shadows of a scene. This ensures operators can easily distinguish objects, features, and faces even in areas with intense backlight or high contrast.

Security is built into the device by design. It features a built-in Secure Element with Trusted Platform Module (TPM) functionality to ensure the highest level of security for device access and data transport. It also supports RSA encryption key lengths of up to 4096 bits and Public Key Infrastructure (PKI), providing trusted protection from malicious attacks.

Yes. The environmental variant of the FLEXIDOME micro 3100i outdoor is built to withstand challenging conditions, leveraging IK10 impact protection and IP66 ingress protection ratings. Its compact and robust design ensures reliable, continuous performance in both outdoor applications and high-risk indoor environments.

The camera is designed for quick and easy setup, utilizing Power-over-Ethernet (PoE) so only a single cable is required to view, power, and control the device. Additionally, it seamlessly integrates with the Remote Portal cloud infrastructure, allowing you to complete the initial configuration, update firmware, and monitor device health remotely.
