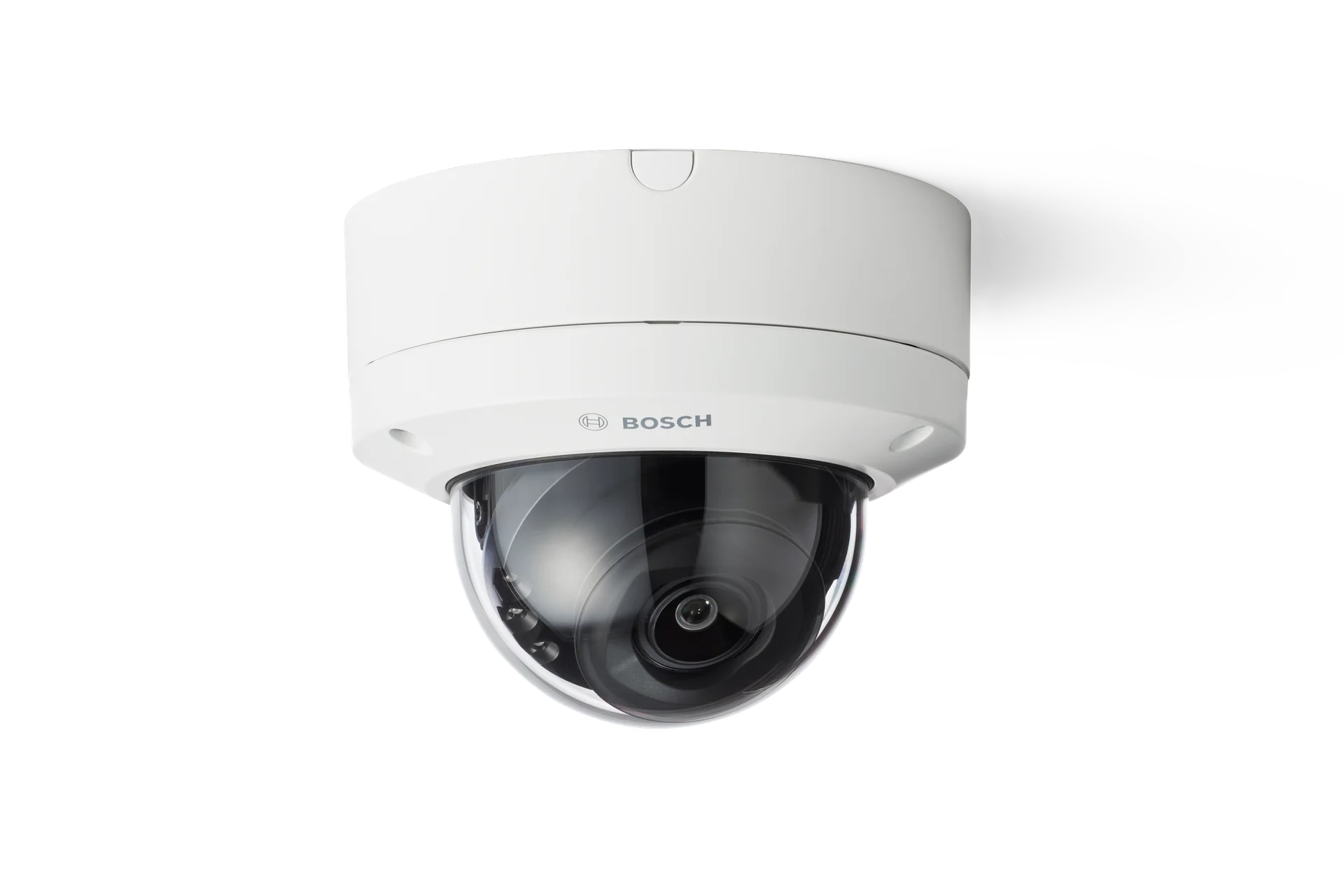

Dome 5MP 3.3-10.2mm IP66 IK10 IR I/O
The FLEXIDOME outdoor 3100i IR family combines up to 5 MP resolution with IR illumination up to 30 m (98 ft) in a compact form factor. Built to withstand harsh weather, it combines advanced low-light imaging with IVA Pro Buildings to provide clear images and minimize false alarms.
Commercial Type No: NDE-3703-AL-IO
5 MP for highly detailed images
IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
Alarm and audio inputs and outputs
Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Built-in IR illuminator with up to 30 m (98 ft) viewing distance
Product Overview
Reliable detection with IVA Pro Buildings
Built-in deep-learning analytics accurately classify people and vehicles while filtering out false alarms from weather or moving shadows.
Continuous visibility in near total darkness
An integrated infrared illuminator ensures clear, detailed imaging up to 30 meters (98 ft.) away in extremely low light.
Uncompromised detail in high-contrast scenes
High Dynamic Range (HDR) captures critical evidence by balancing overexposed highlights and deep shadows within the same field of view.
Trusted data security and encryption
A built-in Secure Element and Trusted Platform Module safeguard network access and protect sensitive video data from unauthorized threats.
Resilient performance in harsh environments
IK10 impact resistance and an IP66 weather rating ensure the camera delivers uninterrupted awareness despite vandalism or severe weather.
Key Specifications
| Sensor type | 1/2.7 inch CMOS |
|---|---|
| Resolution | 5 MP |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.3 mm – 10.2 mm |
| Horizontal field of view (°) | 101.4° – 30.1° |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -30 °C – 50 °C (-22 °F – 122 °F) |
| IR illumination range | 30 m |
| Analytics (built-in) | Intelligent Video Analytics Pro: IVA Pro Buildings |
Frequently Asked Questions
Common questions about the Dome 5MP 3.3-10.2mm IP66 IK10 IR I/O
The camera comes with pre-installed IVA Pro Buildings, bringing highly reliable deep-learning based detection and tracking of persons and vehicles. It is highly resistant to false triggers caused by challenging environmental factors like rain, wind, snow, and moving shadows, ensuring operators are alerted only to relevant objects.
Yes, it utilizes a 5 MP sensor combined with High Dynamic Range (HDR) to capture sharp details in both the bright highlights and dark shadows of a scene. For environments where ambient lighting is unavailable, a built-in IR illuminator provides clear visibility up to 30 meters (98 feet).
The model is equipped with dedicated alarm and audio inputs and outputs. The audio input can be conveniently switched between line-level and microphone level, providing flexibility to enhance situational awareness and customize responses based on specific operational needs.
To ensure the highest level of security for device access and data transport, the camera features a built-in Secure Element hardware providing main Trusted Platform Module (TPM) functionality. This ensures the safe storage of all certificates and keys needed for robust authentication and end-to-end encryption.
The camera features robust IK10 impact resistance and an IP66 ingress protection rating. These physical safeguards ensure the device remains fully operational while exposed to severe weather conditions, dust, and potential vandalism, making it a dependable choice for everyday outdoor surveillance.
