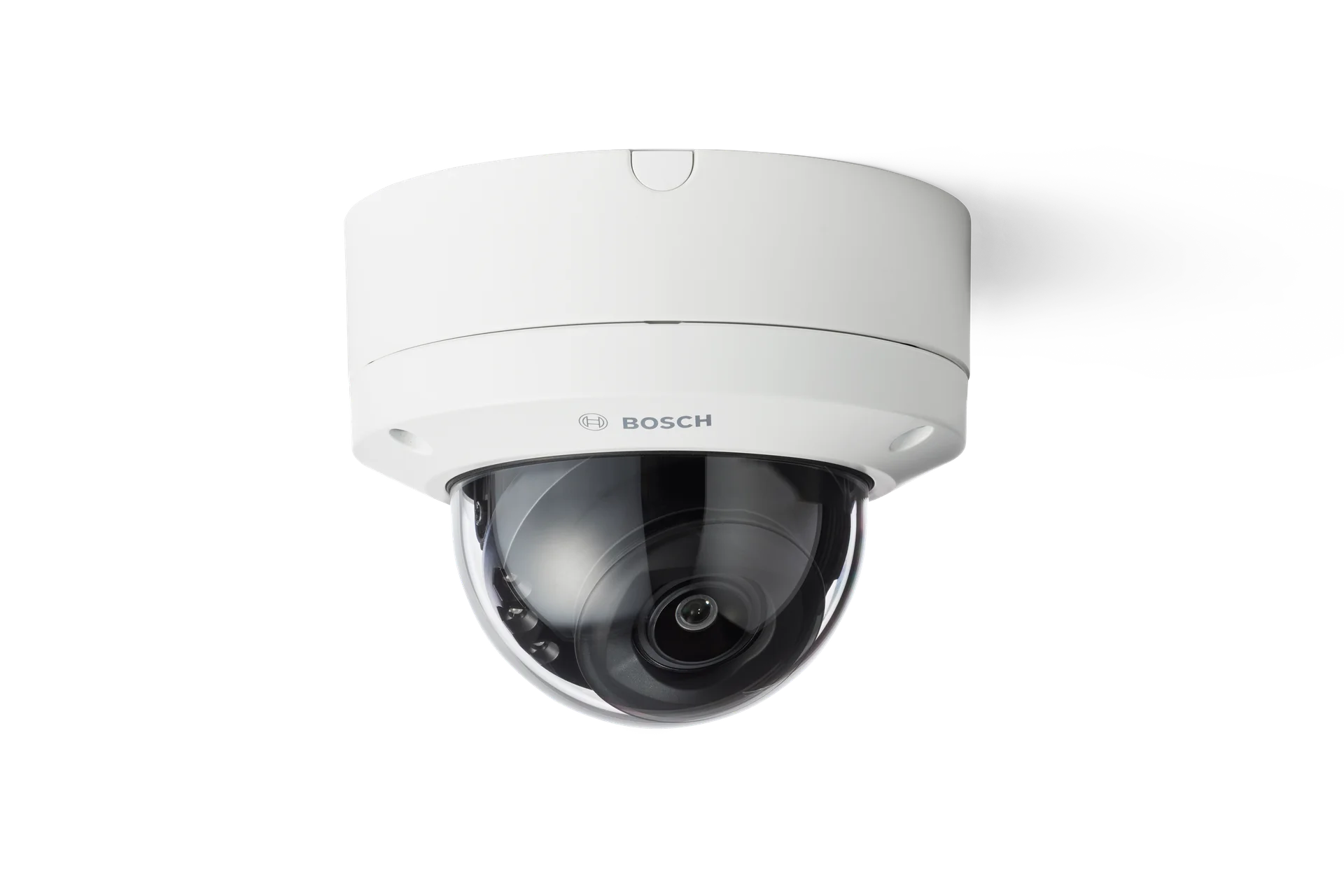

FLEXIDOME outdoor 3100i IR
The FLEXIDOME outdoor 3100i IR family combines up to 5 MP resolution with IR illumination up to 30 m (98 ft) in a compact form factor. Built to withstand harsh weather, it combines advanced low-light imaging with IVA Pro Buildings to provide clear images and minimize false alarms.
Up to 5 MP for highly detailed images
IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Built-in IR illuminator with up to 30 m (98 ft) viewing distance
Product Overview
Reliable detection with IVA Pro Buildings
Built-in deep-learning analytics accurately classify people and vehicles while filtering out false alarms from weather or moving shadows.
Continuous visibility in near total darkness
An integrated infrared illuminator ensures clear, detailed imaging up to 30 meters (98 ft.) away in extremely low light.
Uncompromised detail in high-contrast scenes
High Dynamic Range (HDR) captures critical evidence by balancing overexposed highlights and deep shadows within the same field of view.
Trusted data security and encryption
A built-in Secure Element and Trusted Platform Module safeguard network access and protect sensitive video data from unauthorized threats.
Resilient performance in harsh environments
IK10 impact resistance and an IP66 weather rating ensure the camera delivers uninterrupted awareness despite vandalism or severe weather.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
|---|---|
| Resolution | 2 MP |
| Low light technology | Standard CMOS |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.3 mm – 10.2 mm |
| Horizontal field of view (°) | 106° – 31.2° (2MP) ; 101.4° – 30.1° (5MP) |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 |
| Operating temperature | -30 °C – 50 °C (-22 °F – 122 °F) |
| IR illumination range | 30 m |
| Analytics (built-in) | Intelligent Video Analytics Pro: IVA Pro Buildings |
Frequently Asked Questions
Common questions about the FLEXIDOME outdoor 3100i IR
It utilizes High Dynamic Range (HDR) to capture clear details in scenes with both bright sunlight and deep shadows. Combined with a built-in infrared illuminator that reaches up to 30 meters (98 feet), operators maintain continuous, reliable visibility day or night.
It comes pre-installed with IVA Pro Buildings, which provides reliable, deep-learning-based detection and tracking of persons and vehicles. This intelligence-first capability is highly resistant to false triggers caused by rain, wind, moving trees, or shadows, ensuring teams only respond to genuine events.
The camera is secure by design, featuring a built-in Secure Element and Trusted Platform Module (TPM). This ensures the safe storage of all certificates and cryptographic keys required for authentication and encryption, providing the highest level of protection against malicious attacks.
Yes, it is engineered for demanding environments with an IP66 rating against dust and water ingress, as well as an IK10 impact protection rating. This robust construction ensures uninterrupted awareness even in harsh weather or high-risk locations.
Through intelligent streaming, the camera uses video analytics to encode only relevant information, such as motion or detected objects. This approach can reduce bandwidth consumption and storage requirements by up to 90 percent without compromising the quality of critical video evidence.
