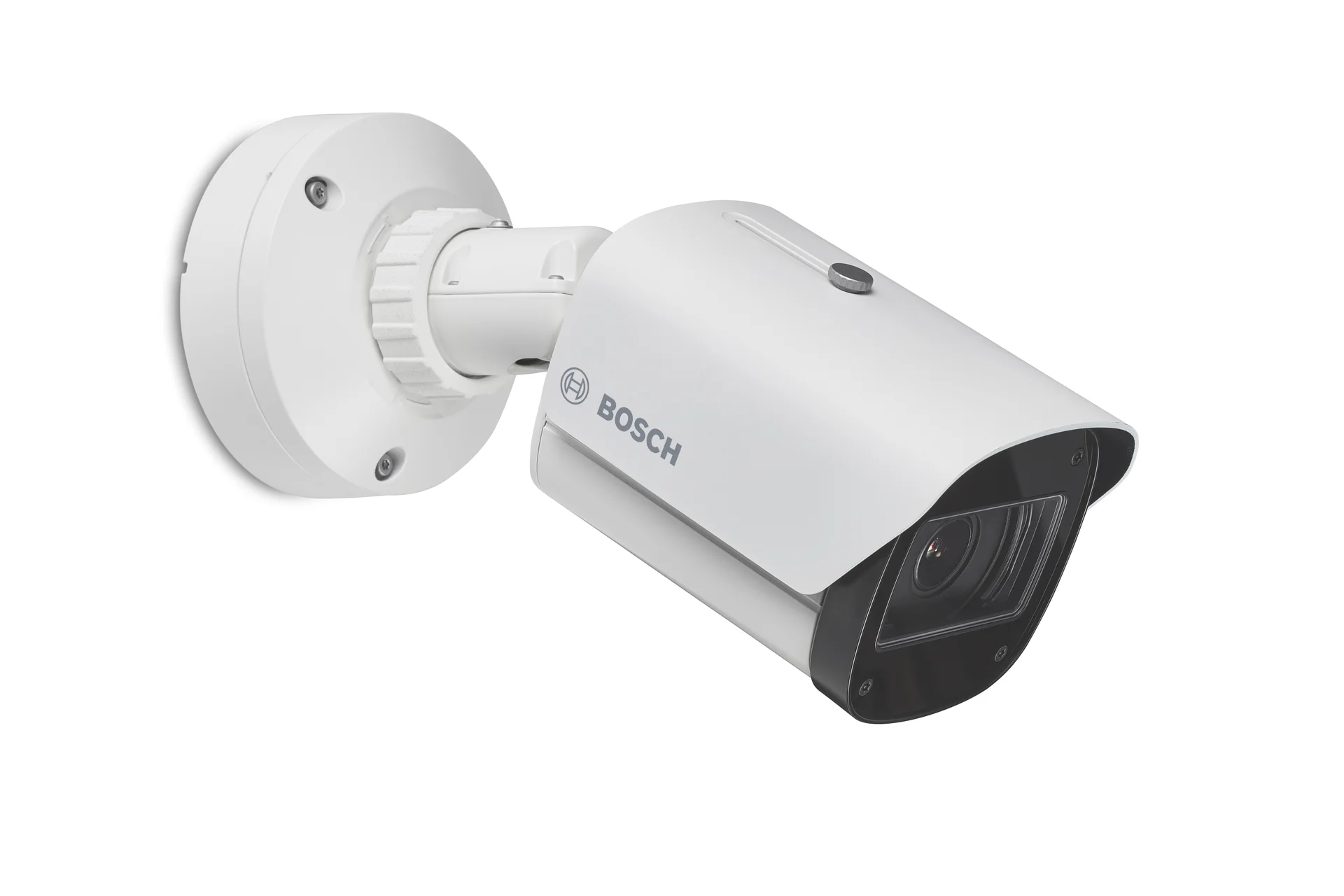

Bullet 2MP HDR X 10.5-47mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Commercial Type No: NBE-7702-ALXT
Starlight X technology for next level low-light performance with maximum detail
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Powerful long range (850nm) smart IR illumination up to 140 m (459 ft), optional invisible IR (940nm) or white light
Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security
Product Overview
Gain reliable analytic insights
Built-in IVA Pro provides deep-learning based detection of persons and vehicles, maintaining accuracy even in challenging weather or crowded environments.
Capture details in darkness
Starlight X technology and smart IR illumination deliver highly detailed images up to 140 meters away in extreme low-light conditions.
Resolve motion blur on objects
HDR X technology captures crisp details in high-contrast scenes without creating imaging artefacts when tracking moving vehicles or individuals.
Withstand extreme outdoor conditions
An extremely robust design with exceptional corrosion resistance ensures continuous operation across critical infrastructure and traffic monitoring sites.
Maintain a stable field of view
Electronic image stabilization dynamically corrects shaky video caused by continuous vibration, ensuring exceptional clarity for tall pole or highway installations.
Key Specifications
| Sensor type | 1/1.8 inch CMOS |
| Resolution | 2MP |
| Low light technology | starlight X |
| WDR technology | HDR X |
| Frame rate (fps) | 1 fps – 60 fps |
| Lens focal length (mm) | 10.50 mm – 47 mm. Horizontal field of view 41.6' - 9'.3' |
| Video compression | H.264 (ISO/IEC 14496-10); H.265/HEVC; M-JPEG |
| IP rating | IP66; IP67; IP6K9K |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | Up to 140 meters (459 feet) |
| Analytics (built-in) | IVA Pro Buildings; Intelligent Video Analytics Pro: IVA Pro Perimeter |
| Analytics (available) | IVA Pro Traffic, IVA Pro Appearance ; IVA Pro Visual Gun Detection ; IVA Pro Personal Protective Equipment |
Frequently Asked Questions
Common questions about the Bullet 2MP HDR X 10.5-47mm IP66/67 IK10
The camera combines Starlight X technology and HDR X to capture maximum detail in both bright and dark areas of a scene without motion blur or artefacts. For complete darkness, it features powerful long-range smart infrared (IR) illumination that reaches up to 140 meters (459 feet), ensuring uniform lighting across the field of view without overexposing objects closer to the camera.
The DINION 7100i IR comes with IVA Pro Buildings and IVA Pro Perimeter pre-installed. These deep-learning analytics provide highly reliable detection and tracking of persons and vehicles. They are designed to ignore false triggers from environmental factors like rain, moving trees, and shadows, delivering real-time understanding in scenes ranging from sterile zones to crowded areas.
Yes, additional IVA Pro licenses can be added to optimize the camera for specific enterprise use cases. For example, IVA Pro Traffic supports counting, classification, and automatic incident detection for highway infrastructure, while IVA Pro License Plate provides real-time identification for parking and city environments.
The camera features an extremely robust and stable design with exceptional corrosion resistance, making it ideal for the most demanding outdoor applications. It is rated to IP66, IP67, and IK10 standards, protecting against rain, dust, and tampering. Additionally, built-in electronic image stabilization ensures a stable field of view even in environments with continuous vibration, such as traffic monitoring.
The camera is secure by design, utilizing an on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support to protect against malicious attacks. Network and device access are secured using 802.1x authentication with EAP/TLS, and the system requires a password upon initial setup. Furthermore, only authenticated firmware can be uploaded, ensuring continuous protection of your critical video data.
