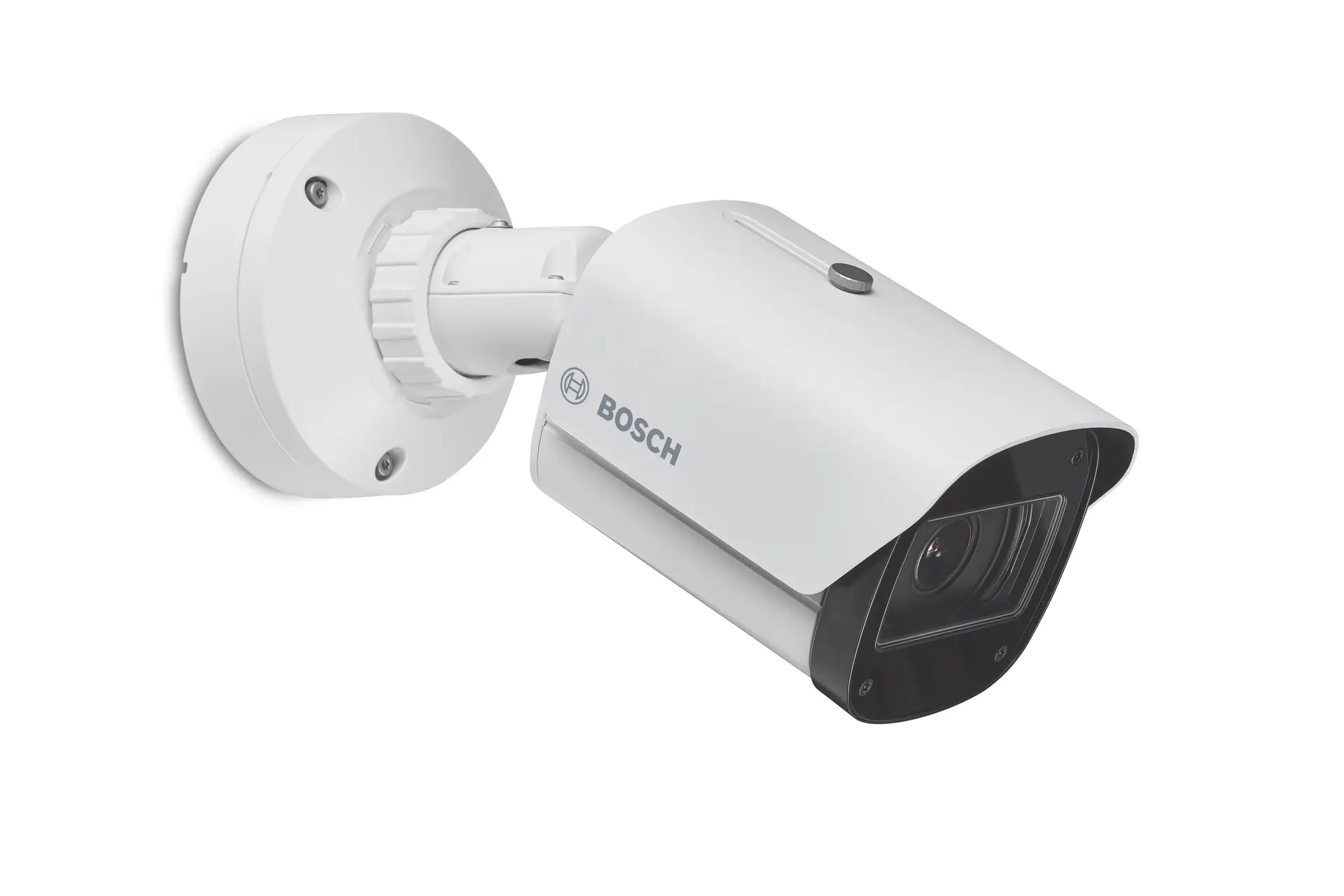

DINION 7100i IR
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Starlight X technology for next level low-light performance with maximum detail
HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Powerful long range (850nm) smart IR illumination up to 140 m (459 ft), optional invisible IR (940nm) or white light
Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring, critical infrastructure and perimeter security
Product Overview
Gain reliable analytic insights
Built-in IVA Pro provides deep-learning based detection of persons and vehicles, maintaining accuracy even in challenging weather or crowded environments.
Capture details in darkness
Starlight X technology and smart IR illumination deliver highly detailed images up to 140 meters away in extreme low-light conditions.
Resolve motion blur on objects
HDR X technology captures crisp details in high-contrast scenes without creating imaging artefacts when tracking moving vehicles or individuals.
Withstand extreme outdoor conditions
An extremely robust design with exceptional corrosion resistance ensures continuous operation across critical infrastructure and traffic monitoring sites.
Maintain a stable field of view
Electronic image stabilization dynamically corrects shaky video caused by continuous vibration, ensuring exceptional clarity for tall pole or highway installations.
Key Specifications
| Sensor type | 1/1.8 inch CMOS (2, 4, 8MP); 1/1.2 inch CMOS(8MP) |
| Resolution | 2MP ; 4MP ; 8MP |
| Low light technology | starlight |
| WDR technology | HDR X |
| Frame rate (fps) | 1-60fps (2MP/4MP); 1-30fps (8MP) |
| Lens focal length (mm) | 4.7 – 10 mm (2MP / 4MP) ; 10.5 – 47 mm (2MP / 4MP); 4.4 – 10 mm (8MP); 5.9 – 13 mm (8MP) ; 12 – 38 mm (8MP) |
| Horizontal field of view (°) | 103' - 49°(2MP/4MP): 108* - 44* (8MP): 41.6° - 9.3' (2MP/4MP): 110° - 48° (8MP): 35.8° - 12.1' (8MP) |
| Field of view adjustment | Motorized zoom / focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67; IP6K9K |
| Impact protection | IK10 |
| Operating temperature | -40 °C – 60 °C (-40 °F – 140 °F) |
| IR illumination range | Up tp 140 m |
| Analytics (built-in) | IVA Pro Buildings; IVA Pro Perimeter |
| Analytics (available) | IVA Pro Appearance ; IVA Pro Visual Gun Detection ; IVA Pro Personal Protective Equipment ; IVA Pro Traffic Video - DINION 7100i IR 10 | 12 |
Frequently Asked Questions
Common questions about the DINION 7100i IR
The camera includes IVA Pro Buildings and IVA Pro Perimeter pre-installed. These analytics deliver highly reliable, deep-learning based detection and tracking of persons and vehicles in scenes ranging from sterile zones to crowded environments. They are extremely resistant to false triggers caused by rain, moving trees, snow, and shadows, allowing operators to detect, track, and classify objects with high accuracy.
This camera features starlight X technology for maximum detail in extreme low light, and HDR X technology to capture crisp video of moving objects in scenes with a large dynamic range. HDR X takes multiple readouts from a single exposure, resolving the motion blur and imaging artefacts commonly found in traditional high dynamic range technologies.
The camera offers integrated advanced smart infrared (IR) illumination that covers distances up to 80 meters (262 feet) for wider versions and 140 meters (459 feet) for telephoto versions. Multiple IR beam angles link to the zoom position of the lens, ensuring uniform illumination across the full scene without hot spots or dark corners. Optional invisible IR (940nm) or white light modules are also available.
The device uses a proven three-step installation concept with a mounting plate and a patented optimized swivel design. Furthermore, the camera offers auto-calibration by transforming 2D pixels into 3D real-world measures. Calibration efforts are reduced to a single click, minimizing the time investment required to achieve optimal analytic accuracy.
Special measures ensure the highest level of security for device access and data transport. The camera features an embedded login firewall, an on-board Trusted Platform Module (TPM), and Public Key Infrastructure (PKI) support. Network and device access can be protected using 802.1x authentication, and viewing access is secured with HTTPS and TLS 1.2 encryption with 256-bit keys.
In this family
DINION 7100i IR
:quality(75))
Bullet 2MP HDR X 4.7-10mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 2MP HDR X 4.7-10mm IP66/67 IK10
Bullet 4MP HDR X 4.7-10mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 4MP HDR X 4.7-10mm IP66/67 IK10
Bullet 8MP HDR 4.4-10mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 8MP HDR 4.4-10mm IP66/67 IK10
Bullet 2MP HDR X 10.5-47mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 2MP HDR X 10.5-47mm IP66/67 IK10
Bullet 4MP HDR X 10.5-47mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 4MP HDR X 10.5-47mm IP66/67 IK10
Bullet 8MP HDR X 5.9-13mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 8MP HDR X 5.9-13mm IP66/67 IK10
Bullet 8MP HDR 12-38mm IP66/67 IK10
The DINION 7100i IR family delivers the highest levels of visibility and intelligent detection for demanding outdoor environments. Combining advanced low-light imaging, smart infrared illumination, and multiple built-in analytics, this robust bullet camera enables real-time understanding for traffic monitoring, critical infrastructure, and perimeter detection.
Bullet 8MP HDR 12-38mm IP66/67 IK10
