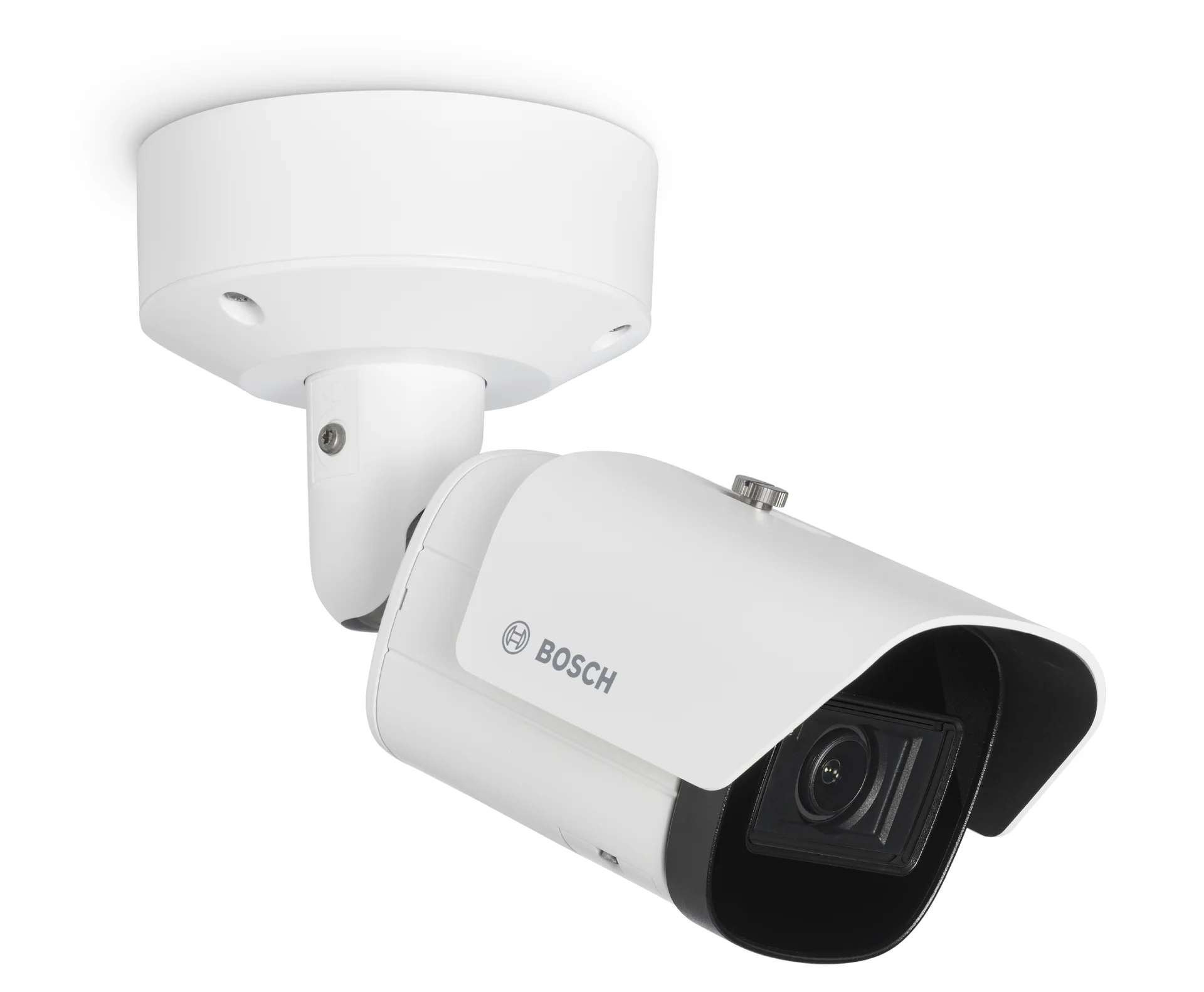

Bullet 8MP HDR 3.2-10.5mm IP66/67 IK10
The DINION 5100i IR family delivers reliable outdoor visibility and intelligent detection for demanding environments. Featuring starlight imaging, built-in infrared, and IVA Pro, these cameras provides clear insights and confident tracking, day or night.
Commercial Type No: NBE-5704-AL
4K ultra HD for highly detailed images
Starlight camera technology with excellent low-light performance
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
High Dynamic Range to see every detail in both bright and dark areas of the scene
Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
Product Overview
Detect critical events with reliable accuracy
Built-in IVA Pro Buildings uses deep learning to track persons and vehicles while filtering out false triggers from rain or moving trees.
See clearly in challenging lighting conditions
High Dynamic Range and starlight technology reveal essential details in both bright sunlight and near-zero light environments.
Maintain complete visibility in total darkness
An integrated intelligent infrared illuminator automatically adjusts to the scene, ensuring clear detection up to 60 meters IR illumination up to 45 m (148 ft) away.
Ensure reliable operation in harsh environments
A robust IP66/67 and IK10 rated housing protects the device against extreme temperatures, severe weather, and physical tampering.
Simplify deployment and reduce installation time
A three-step installation process, PoE, and Automatic Varifocal lens allow teams to quickly mount and focus the device without opening the housing.
Key Specifications
| Sensor type | 1/2.8 inch CMOS |
| Resolution | 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 fps – 30 fps |
| Lens focal length (mm) | 3.2 – 10.5 mm |
| Horizontal field of view (°) | 105° – 31° |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66; IP67 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| IR illumination range | 45 m |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs |
Frequently Asked Questions
Common questions about the Bullet 8MP HDR 3.2-10.5mm IP66/67 IK10
The camera utilizes 4K ultra HD resolution combined with starlight camera technology to deliver highly detailed images and excellent low-light performance. Additionally, High Dynamic Range ensures every detail is visible in both bright and dark areas of the scene, while a built-in intelligent IR illuminator provides clear viewing up to 45 meters (148 feet) in dark environments.
The DINION 5100i IR comes with IVA Pro Buildings pre-installed. This brings highly reliable, deep learning-based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested areas. It is extremely resistant to false triggers caused by challenging environments like rain, wind, snow, and shadows, minimizing configuration effort by removing the need for calibration.
The camera features a proven three-step installation concept and is compatible with standard electrical boxes. Power-over-Ethernet (PoE) support means only a single cable is required to view, power, and control the device. Furthermore, the Automatic Varifocal (AVF) feature allows installers to adjust the zoom position remotely without opening the camera, ensuring accurate focus with an automatic motorized zoom.
Yes, the robust housing is rated to IP66/67, NEMA 4X, and IK10 standards, safeguarding the camera against rain, dust, tampering, and vandalism. It operates reliably across a wide ambient temperature range from -40 degrees Celsius to 55 degrees Celsius (-40 degrees Fahrenheit to 131 degrees Fahrenheit), making it suitable for demanding outdoor applications.
The DINION 5100i IR incorporates built-in Secure Element hardware providing Trusted Platform Module (TPM) functionality to ensure the highest levels of data security and privacy. It supports Public Key Infrastructure (PKI) for superior protection against malicious attacks, features pre-installed origin device certificates, and offers three-level password protection to securely customize device access.
